MK-101 Pro24 JCS SETUP

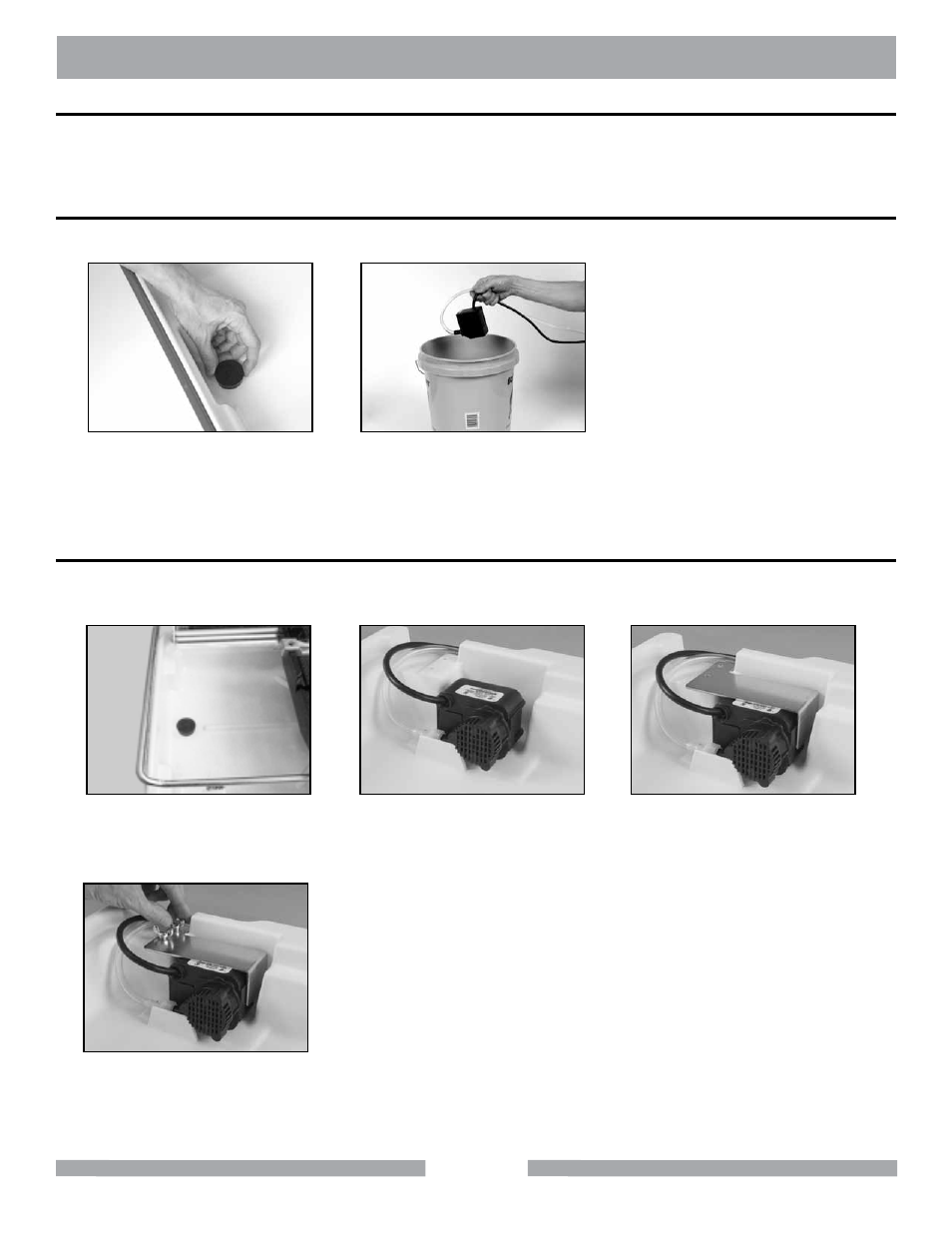

WATER PUMP SETUP FOR OPERATION
External Water Source
Re-circulation
The Water Pump can be setup for operation in two ways, External Water Source or Re-circulation.
This is the preferred method of cooling.
NOTE: If using a dry blade for operation, DO NOT connect the water pump.
(A)
Remove the Drain Plug. Place
empty container under hole for
water drainage.
(B)
Place the Water Pump in an
external container and fill until
water completely covers the
Water Pump suction.
(B)
Place Water Pump in Water Pan.
(C)
Place Water Pump Clamp as
shown.
(D)
Secure Clamp with wingscrews
and nuts. Fill the Water Basin
until water completely covers the
Water Pump suction.
When using the re-circulation method, the water should be changed often for
longer pump life.
(A)
Ensure the Drain Plug is
installed in the Water Basin.
NOTE:
