MK Diamond MK-101Pro24 JCS - Manual (Page 18)

18

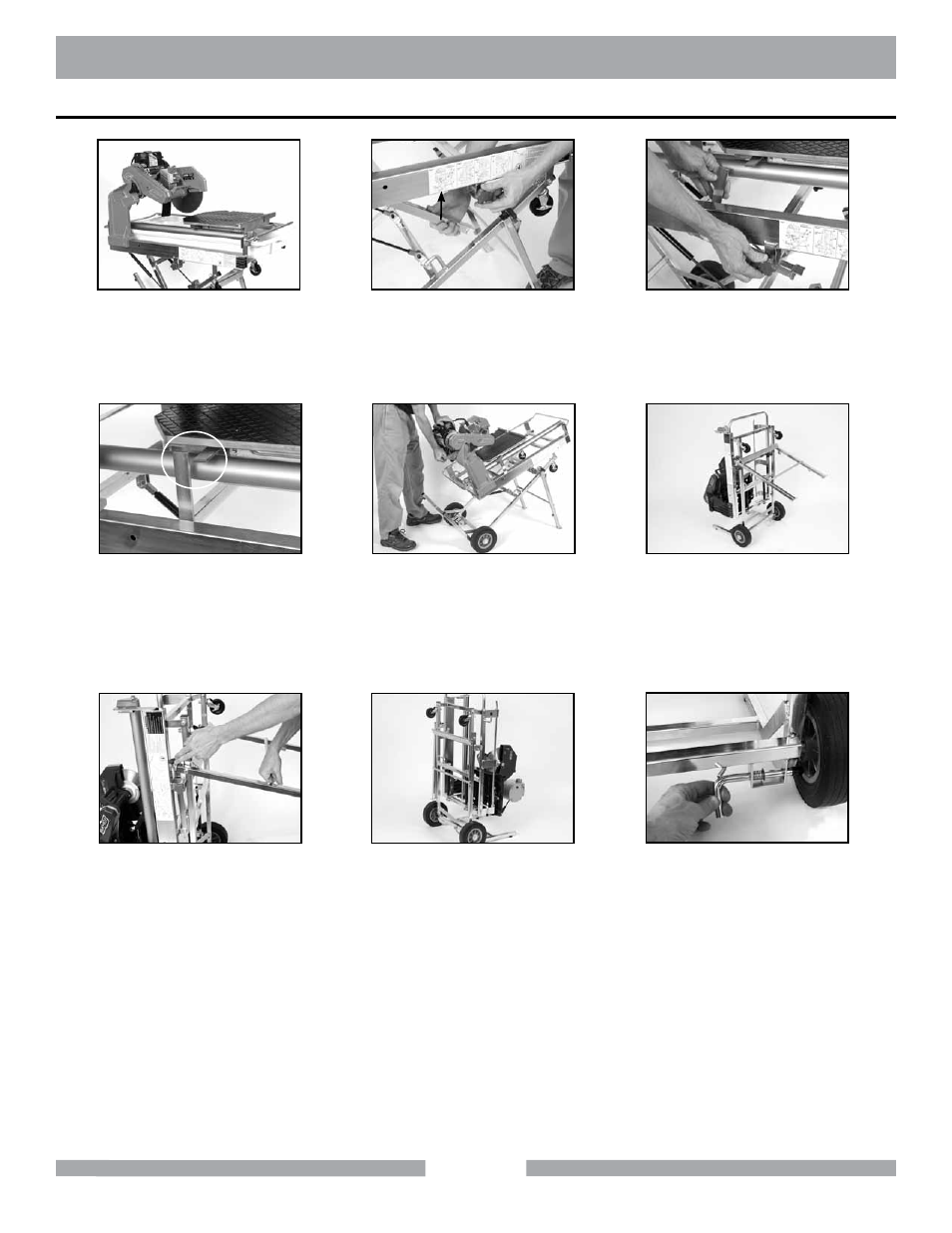

MK-101 Pro24 JCS STAND TAKE-DOWN
(D)
Move Table back and
ensure table is secure.
(E)
Push down on Cutting Head
Handle to collapse the saw.
(G)
Hold up Front Legs, flip and hold
Red Leg Lock to unlock Front Legs.
(H)
Push Front Legs against frame
and lock with Blue Knob, push until
locking pin engages.
(B)
Pull and hold Green Knob. Lift
Safety Arm until it hits bottom
of Frame.
(A)
Move table forward toward
operator.
(C)
Release Green Knob to
secure Safety Arm.
(F)
Tilt Saw backwards to
upright position.
JCS STAND - Take Down Instructions
(I)
Pull back pin and place
behind retaining rod to
unlock wheel.
