6 Error messages (backplane bus)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6 Error messages (backplane bus)

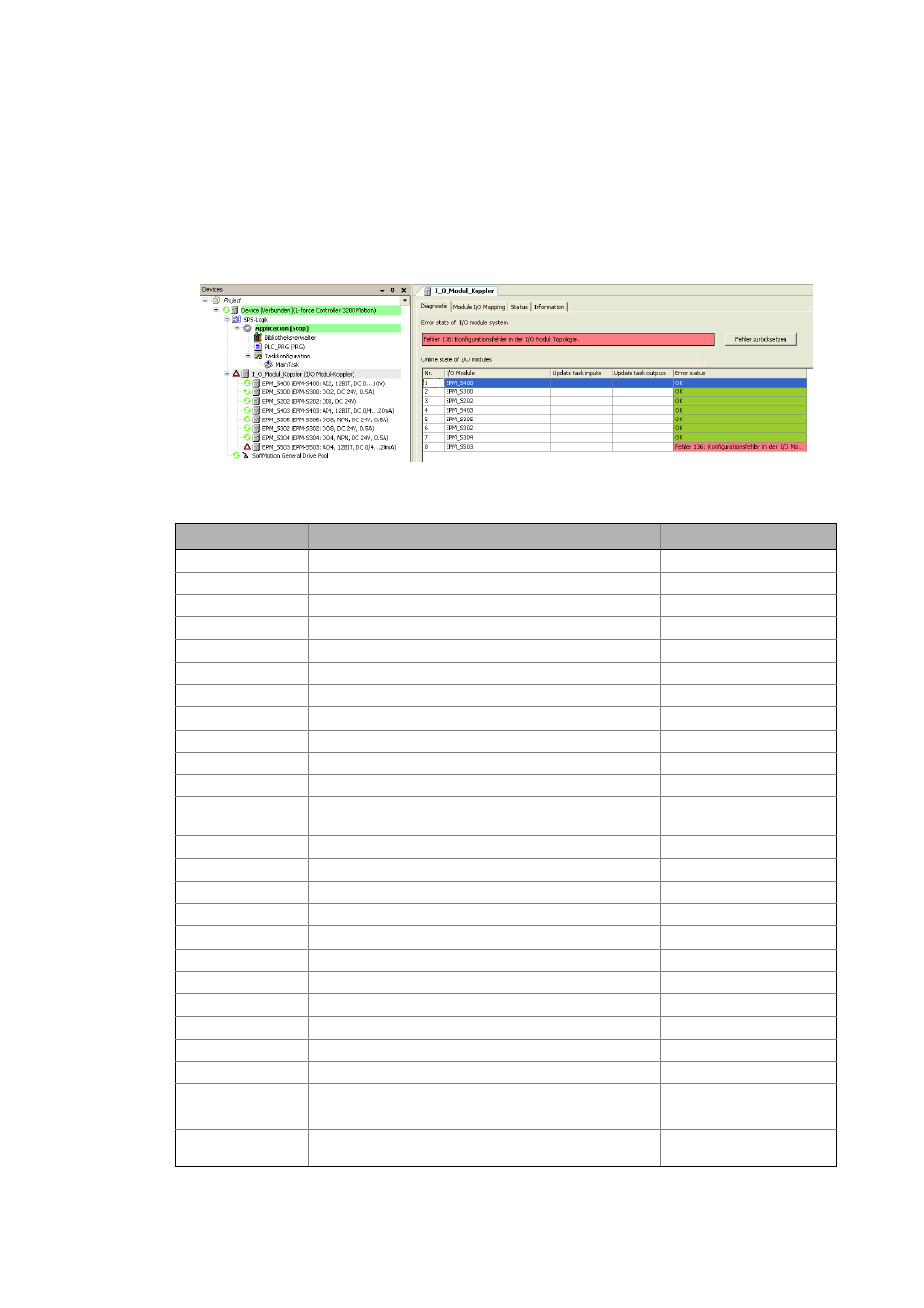

The diagnostics tab of the "I_O_Modul_Koppler" displays the total error status of the I/O system
and the current error status of the available I/O compound modules.
• In the following example, the represented station structure in the device view is faulty and thus
the I/O compound module EPM-S503 at the backplane bus is not available:
Short overview of the possible error messages
Error number Error text Remedy
11 Too many I/O modules for the task cycle time selected Increase cycle time
12 FIFO response full Contact Lenze
32 Timeout reset Contact Lenze
33 Timeout reset error Contact Lenze
96 Too many I/O modules for the task cycle time selected Increase cycle time
97 Too many I/O modules for the task cycle time selected Increase cycle time
98 Too many I/O modules for the task cycle time selected Increase cycle time
99 Too many I/O modules for the task cycle time selected Increase cycle time
100 Too many I/O modules for the task cycle time selected Increase cycle time
101 Timeout for master queue operation Contact Lenze
102 Bus initialisation error with one I/O module Contact Lenze
103 Master queue operation error
Not all I/O modules can be reached
Contact Lenze
104 Read semaphore timeout for group 1
105 Read semaphore timeout for group 2
106 Read semaphore timeout for group 3
107 Write semaphore timeout for group 1
108 Write semaphore timeout for group 2
109 Write semaphore timeout for group 3
110 Internal backplane bus hardware error Contact Lenze
116 Read semaphore timeout for group 1
117 Read semaphore timeout for group 2
118 Read semaphore timeout for group 3
119 Write semaphore timeout for group 1
120 Write semaphore timeout for group 2
121 Write semaphore timeout for group 3
136 Configuration error in the topology of the I/O modules Check sequence of the I/O
modules in the device view.
