Cam Designer Professional
Operation
Editing settings on the worksheet
Slave axes

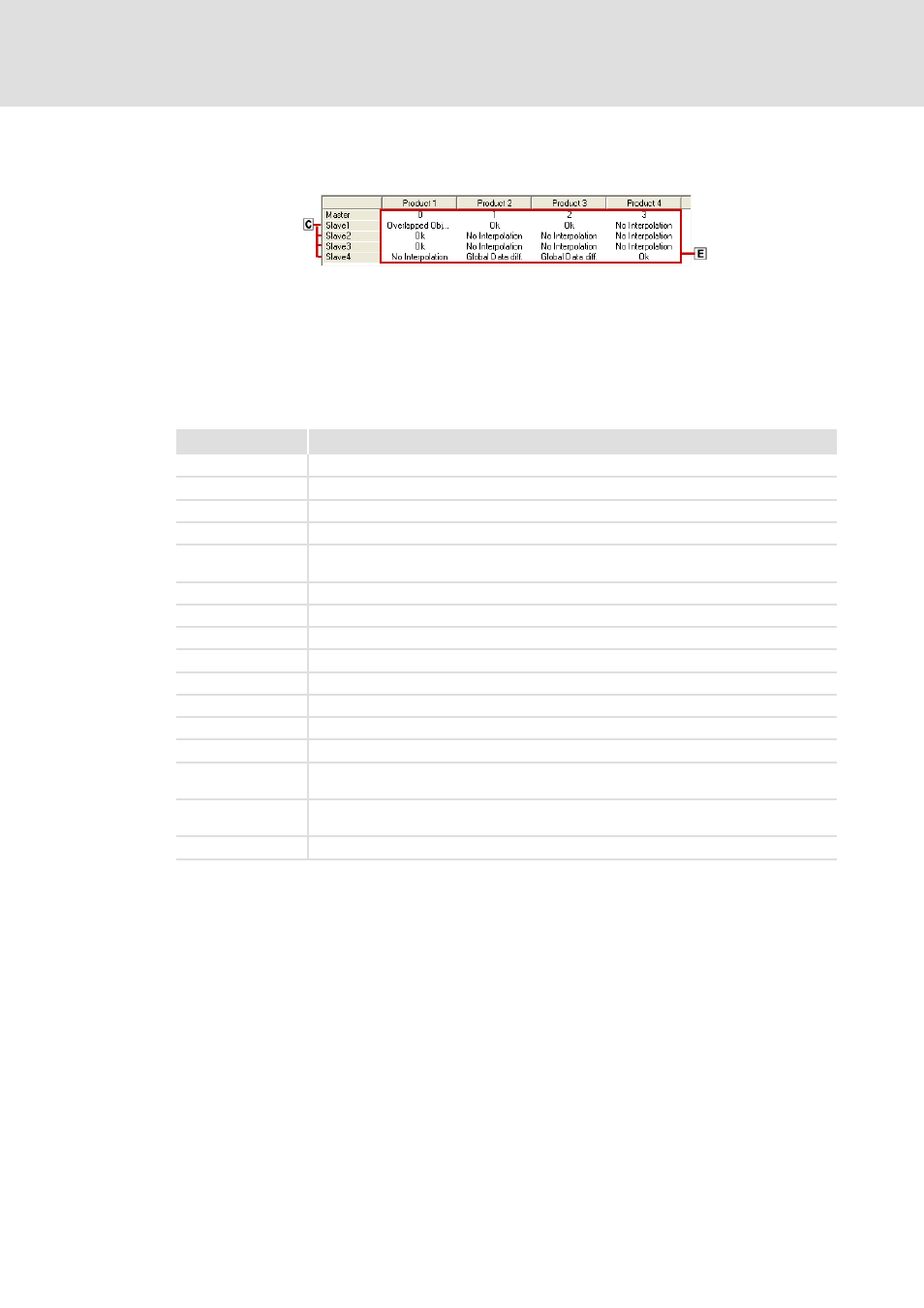

The following table lines represent the slave axes:
 A double-click on the Name field of a slave axis opens the Properties dialog box for
the corresponding slave axis.
 The status display  indicates the state of the corresponding slave axis and product.
6.3.1 Processing states
State Meaning
-------- Product is not available in the axis (number of profiles lower than product number).
Global data diff. The global product data do not comply with the Cam Manager.
Object vertical There is an impermissible vertical movement (vertical line).
Overlapped Objects Objects of the ideal cam overlap.
Objects without
Space
Same X value but different Y value of adjacent objects.
Curve not closed The ideal cam is no closed profile.
No Interpolation There is no interpolation point table.
Interpolation diff. The table of interpolation points does not comply with the ideal cam.
LC Read Error The LC9 and LC7 files cannot be read or are not available.
LC Checksum Error When reading the LC9 and LC7 files a checksum error has been detected.
LC Globals diff. The global data of LC9 and LC7 files do not comply with the product.
LC No Curve Under this product number there is no profile yet in the LC9 and LC7 file.
LC Points diff. The point values in the LC9 and LC7 files do not comply with the point table.
LC CamContactor
diff.
The cam data in the LC9 file do not comply with the product.
LC PosM/
Segment diff.
The data of the position marker of the LC9 file do not comply with the product.
OK The cam data comply with the LC9 and LC7 file.
