Cam Designer Professional
User interface
CAM Designer

Tip!
If you move the mouse pointer over an icon, a tool tip pops up providing a short in-
formation on the corresponding function. Moreover, an additional information is
displayed in the Status bar .

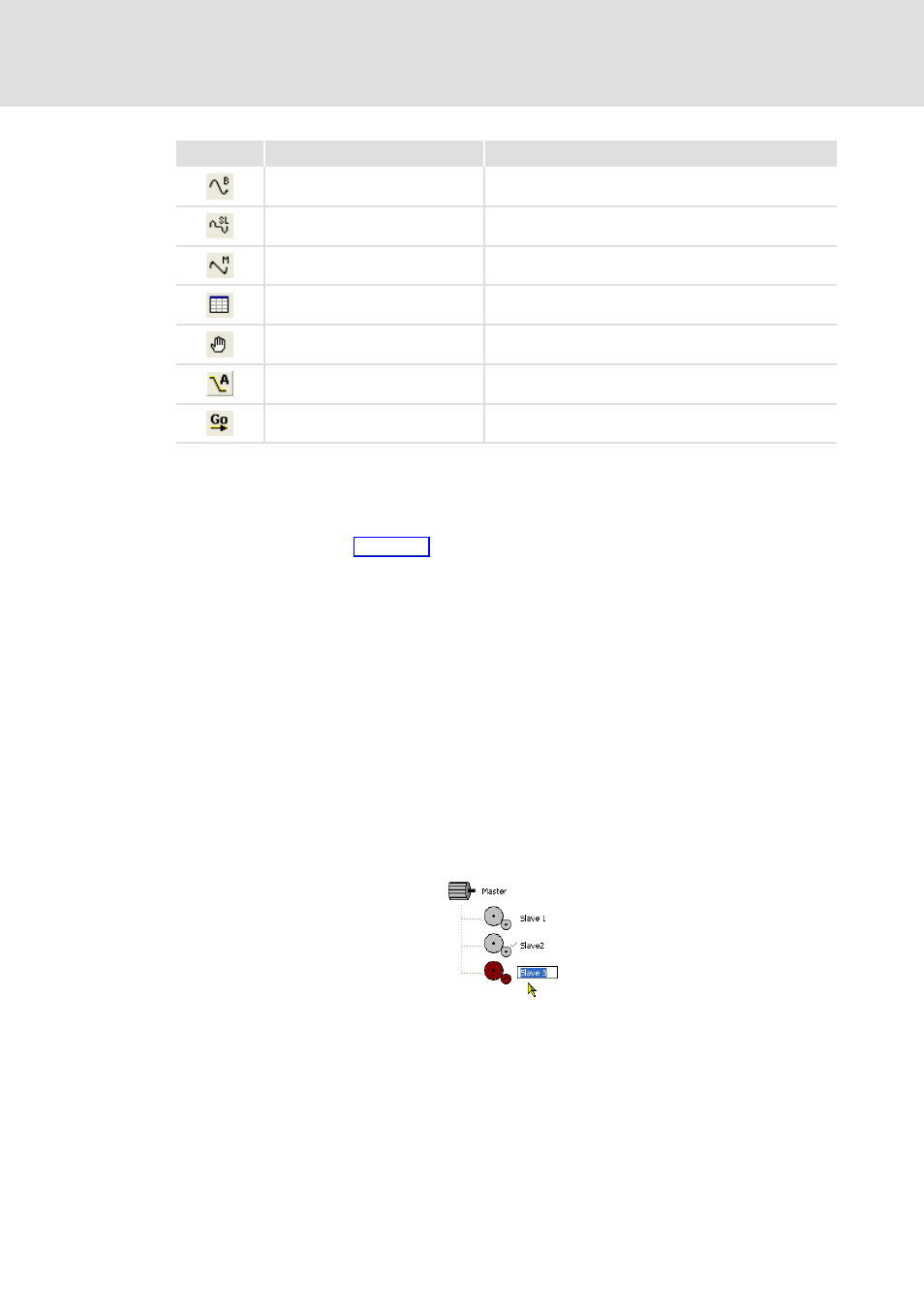

5.3.2 Project structure
The display is optional.
The project structure consists of the tabs Project and Object.
Project
In this tab the master axis and the created slave axes are displayed.
 A double-click on the icon activates the corresponding slave axis. The associated pro-
files are displayed accordingly.
 A mouse-click highlights the name of the master or axis in blue. Then all actions refer
to this axis.
DrawSloped Sine Draws a sloped sine function (Bestehorn).
Draw
sine/line combination
Draws a sine/line combination.
DrawModified sine curve Draws a modified sine curve.
DrawTable Inserts a table object.
ViewObject Input Mode Input of motion objects.
ViewInterpolation mode Changes to the interpolation mode.
Edit
Start Calculation
Connects the profile segments.
Icon Menu command Function
