Create a new project
Example with a master axis and two slave axes:
Specifications from the data sheet
The entries in the axes reflect the machine constants. Therefore, only work with real val-
ues.
 The master axis has the features of an electrical shaft.
 The master axis can be a real or virtual axis.
Specification Formula Description
Master gear factor = 100 i1 = 100 z2/z1 = 100/1 dialog box Master
Slave gear factor 1/2 = 1 i2/i3 = 1 z2/z1 = 1/1 dialog box Slave
d1 diameter of master roll = 500mm d1
×
π Dialog field of Master feed constant
d2/d3 diameter of slave rolls = 1000mm d2
×
π or d3
×
π Dialog field of Slave field constant

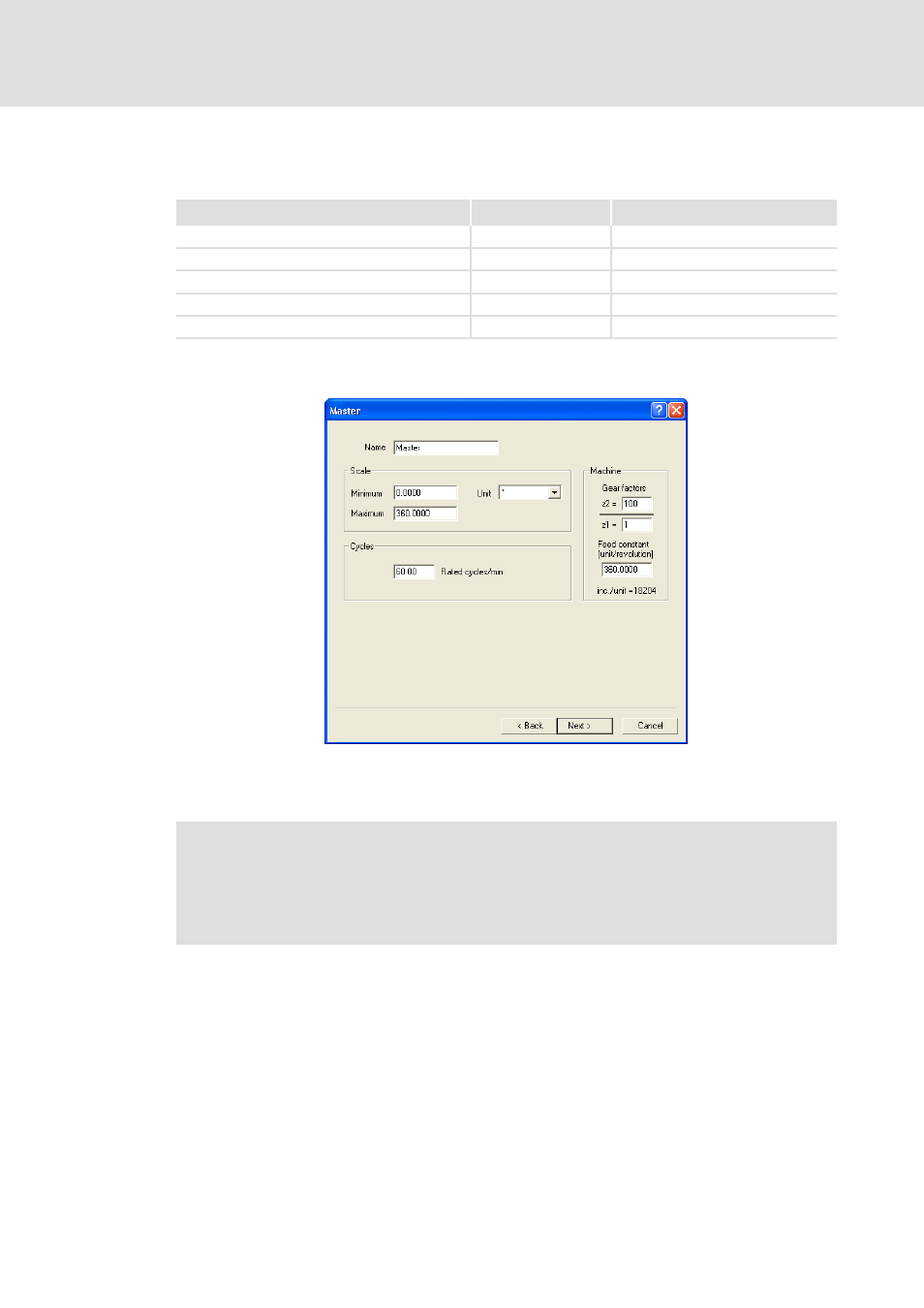

Register Maximum of the master

Note!
If you only use a virtual master, then enter in the group field Machine under Gear
factor in the input field z2 100 and in z1 1. This serves to achieve a higher reso-
lution of the master angle.
