Create a new project

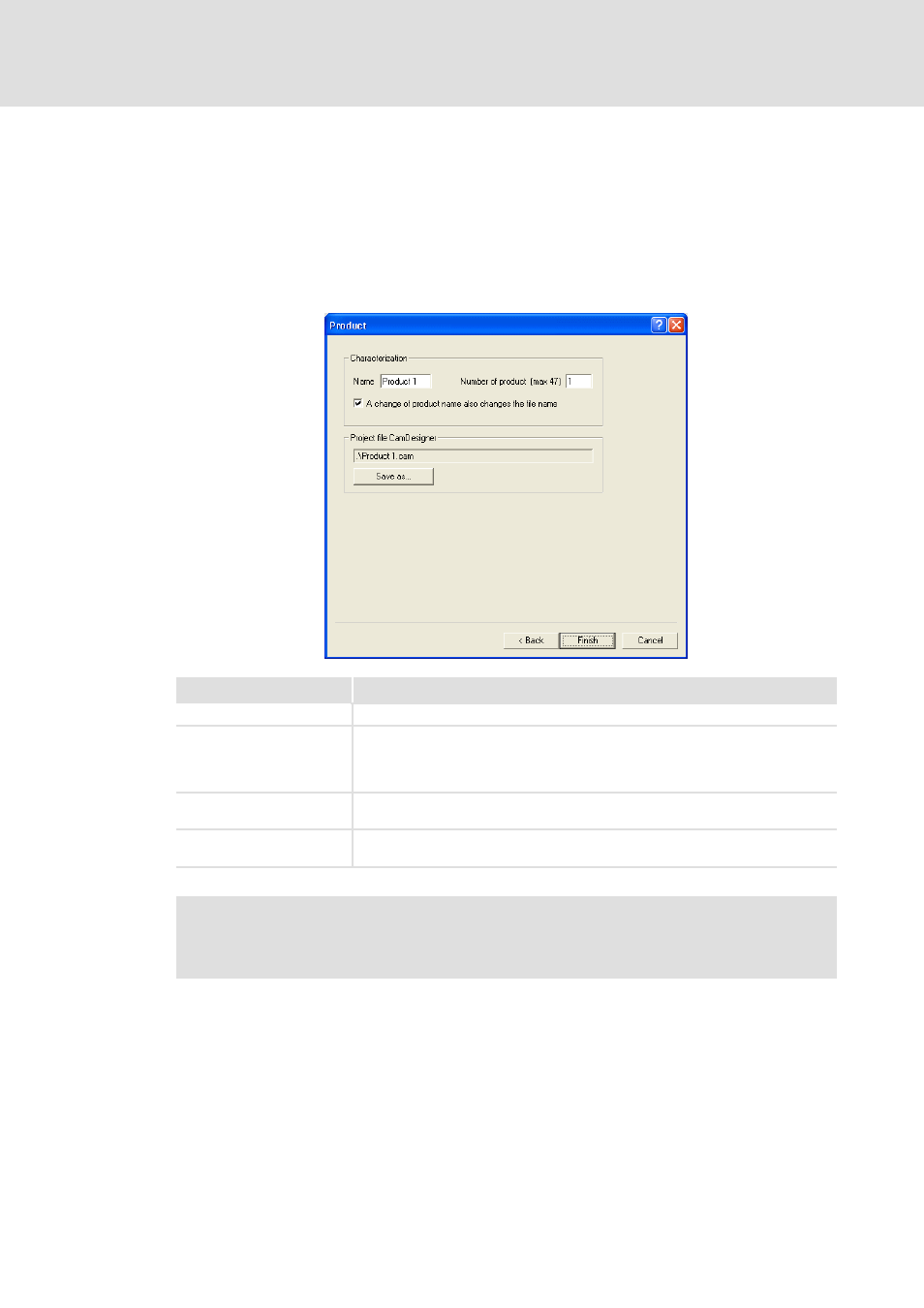

6.1.5 Step 4: Defining the product properties

Tip!
In the following text, the term "Product" is used for motion profiles, cams and po-
sition markers because product-dependent sequences of motion can be achieved
through different cam profiles.
• The name serves the »Cam Manager« to internally manage the products.
• The maximum product number depends on the type of target system selected.
The slave axes can have different target systems.
• "0" is assigned to the first product data set.
Dialog object Description
Input field Name Name of the product
Input field Product number Numerical assignment
With this number the profiles, cam group and position markers are activated in the
drive.
They can be numbered in any order. It is impermissible to assign a number twice.
Control field
Change of ...
The file name is automatically change in the directory
Field Project file for
Cam Designer
Displays the file name
Use Save as to select another directory

Note!
Make sure that the product numbers have been selected correctly.
