Electrical installation
The 9351 brake module
Connection to the 8200 vector controller (15 − 90 kW)
7
l
100 EDBMB935X DE/EN/FR 13.0
7.4 The 9351 brake module
7.4.1 Connection to the 8200 vector controller (15 − 90 kW)
K1
K1
U V W
M
3~
PE
K1
F1...F3
Z2
+UG -UG
9351
Z1
K1
OFF
ON
RFR
RB
T1 T2 L1 L2 L3
Z3
F4 F5
28 E1 ... 20
"
-UG +UG
PE
"
"
"
PE PE
"
"
"
"
L3
N
PE
L1
L2
9350br_006

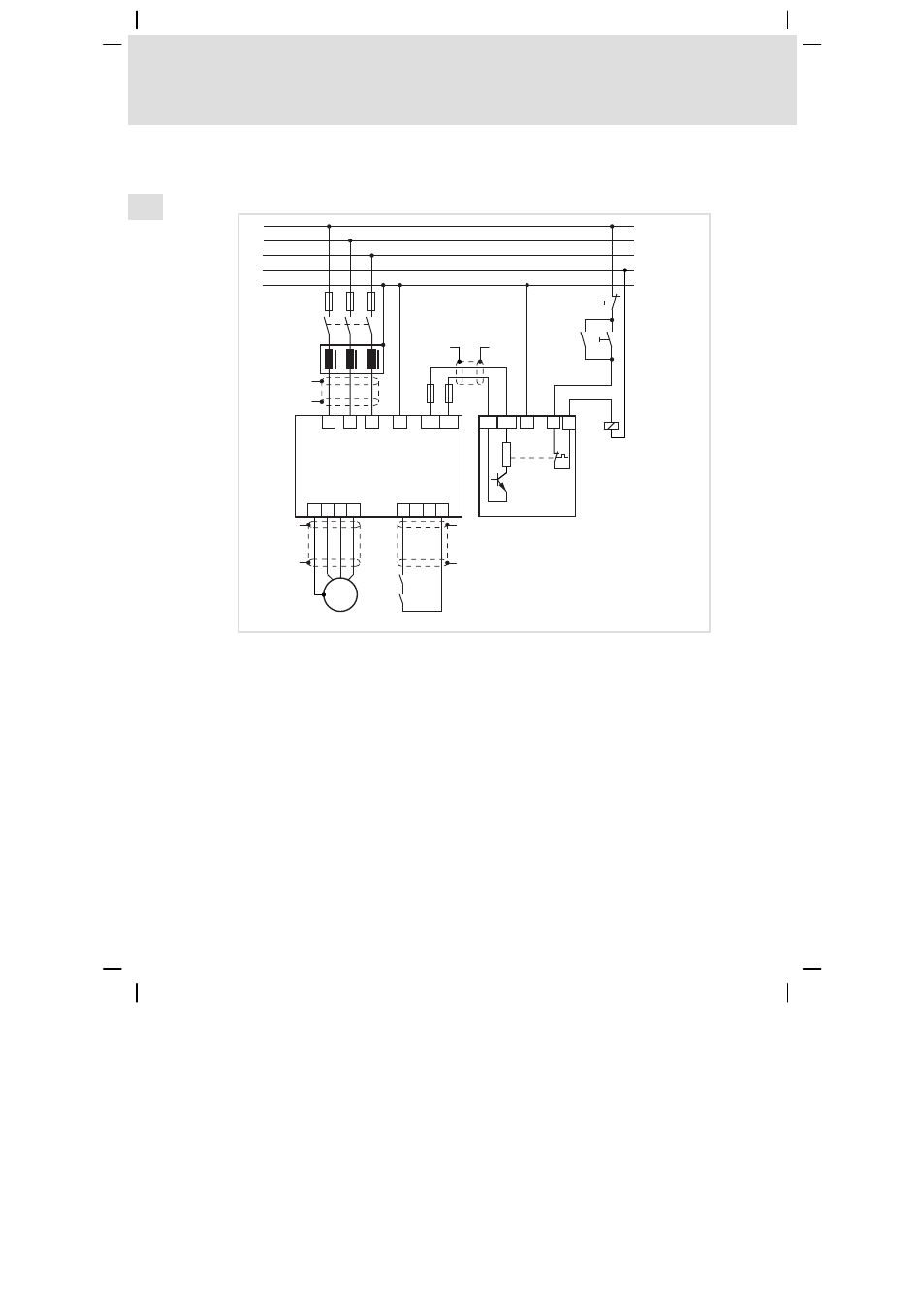

Fig. 11 Connection of the 9351 brake module to controllers 8200 vector (15 − 90 kW)
Z1 Brake module
Z2 Controller
Z3 Mains choke
K1 Mains contactor
F1 ... F3 Mains fuses
F4, F5 DC−bus fuses (recommendation)
