4.3 Preparing the microtome for
attachment of the LN22
• Move the microtome specimen cylinder to the
rear limit stop.
• Pivot the magnifier of microscope to the side.
• Remove knife holder basis and knife holder.
• Remove the specimen clamp.
• Unscrew the fixture for specimen clamps.
• Lock handwheel (1) in 12-o’clock position (1a).
• Instead of the fixture for specimen clamps,
assemble the cryo specimen arm (3) with the
4 shorter screws (standard delivery) (2).

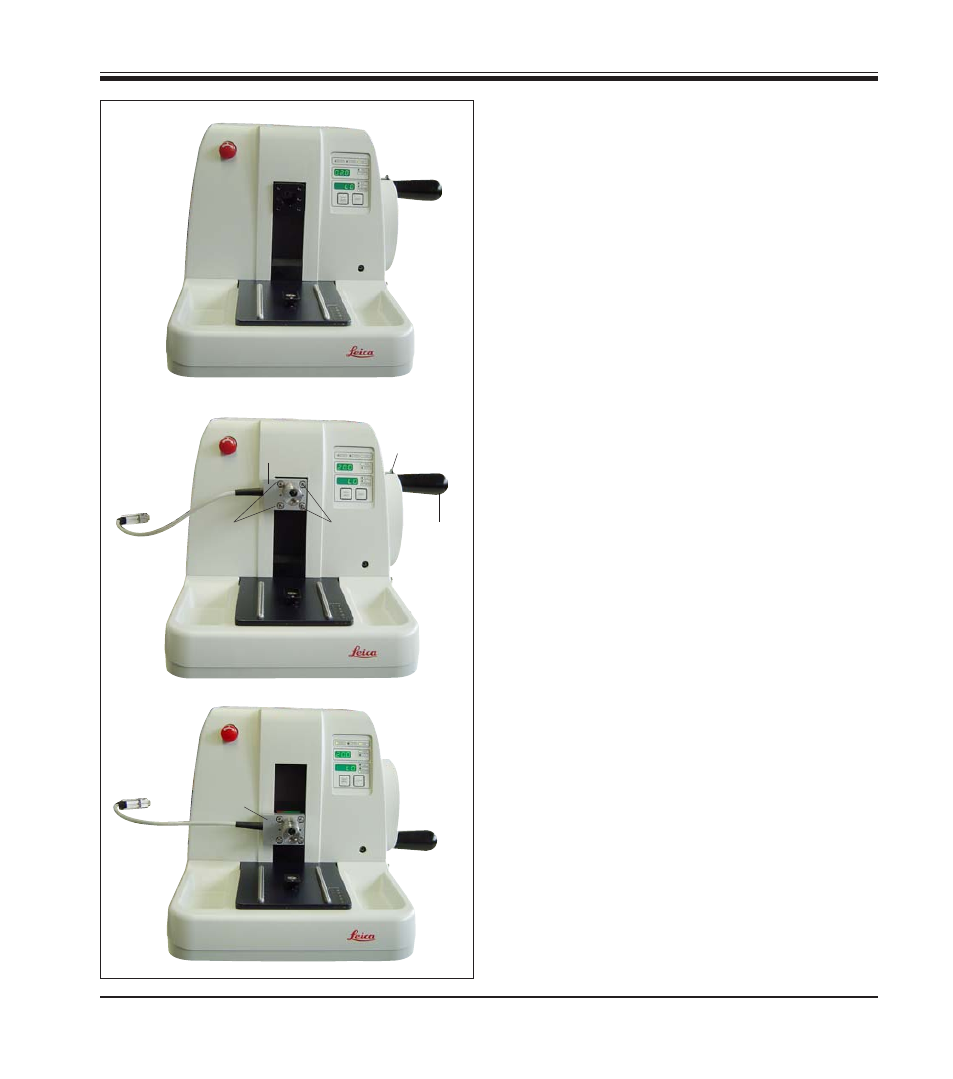

Fig. 11
• Rotate the handwheel to place the cryo speci-
men arm (3) at the low end of the cutting
stroke.
Fig. 12
Fig. 10
2 2
4. Startup
1
1a
3
3
