Page 41

ASSEMBLY INSTRUCTIONS
3-25
Finishing Combo w/ Chopper
Reel Installation (Option)
NOTES
Refer to Figure 3-15 for hydraulic diagram.
See Figure 2-3 for finishing combo w/ chopper reel
placement dimensions.
1.
Attach two combo attachment harrow arms to rear of
frame using 1-8 x 7-1/2 hex head cap screws and
hex lock nuts (See Figure 3-17.)
2.
Install the manifold to the manifold bracket on the
frame using 1/2-13 x 3-1/2 hex head cap screws and
hex lock nuts.
3.
Install fittings into manifold according to Figures 3-15
thru 3-16.
4.
Install hoses per Figures 3-15 thru 3-16.
5.
Install steel plugs in any remaining open manifold or
valve ports.
6.
Pull out 1-8 x 7 hex head cap screw and attach
wrench combo plate to frame using the existing
hardware.
7.
Install wrench harrow adjustment plate to wrench
combo plate using quick hitch pin.
8.
Attach harrow adjustment combo attachment tubes
to 3 row coil tine harrow assembly using spring
clamp u-bolts, harrow stiffener plates, and 5/8-11
flange head serrated nuts.
9.
Attach combo attachment arms to the chopper
reel/gang bar assembly using gang bar mount plate,
3/4-16 X 6 hex head cap screws and double hex lock
nuts.
10. Install 1/2-13 x 1-1/4 round head square neck screws
through angle adjustment plate and gang bar plate
as shown in Figure 3-18.

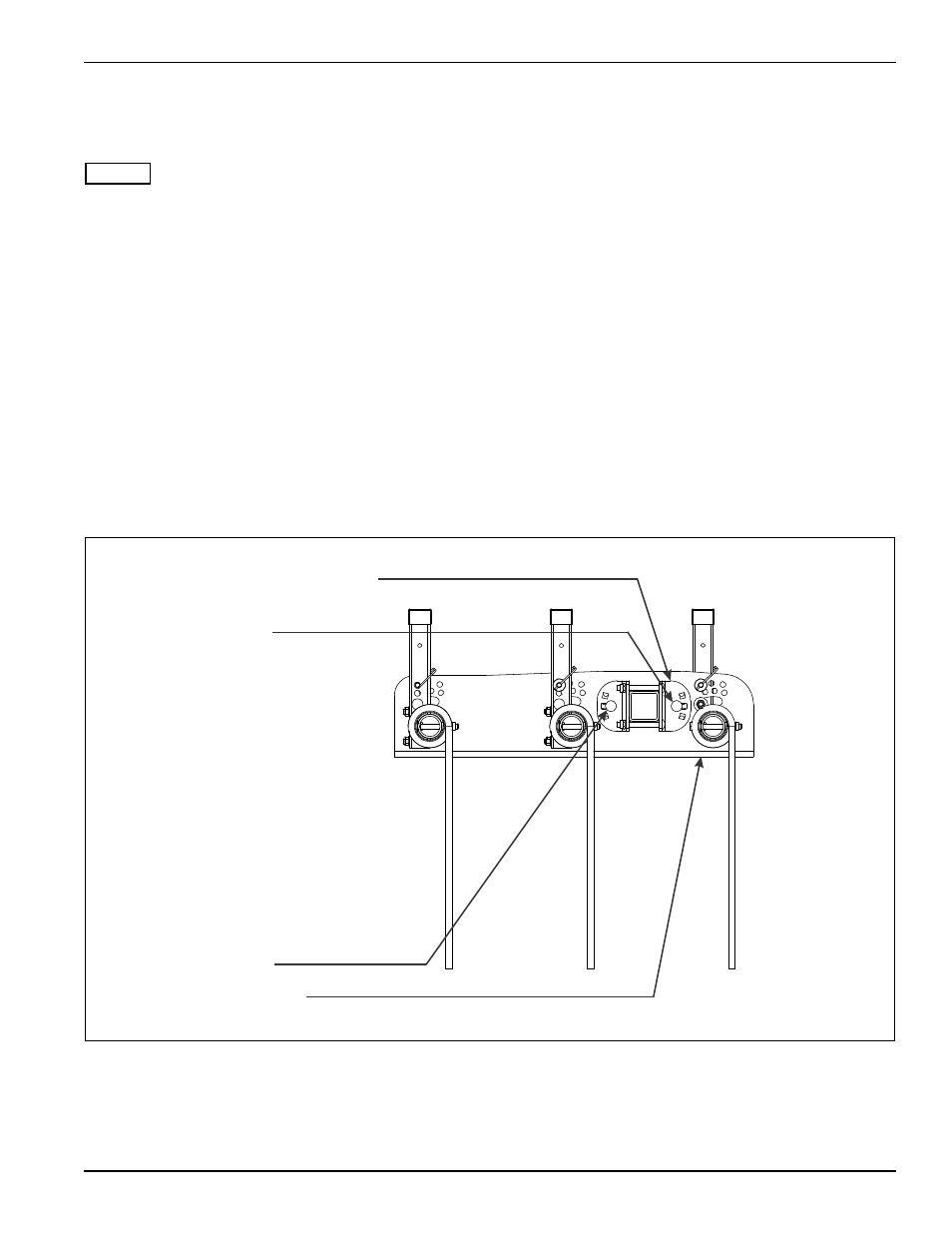

Figure 3-18: Angle Adjustment Plate Installation
ANGLE ADJUSTMENT PLATE
1/2-13 X 1-1/4 RD HEAD SQ
NECK SCREW
1/2-13 X 1-1/4 RD HEAD SQ
NECK SCREW
GANG BAR PLATE
