Figure 3-8: wing frame installation – Landoll 7431 VT Plus User Manual
Page 36
3-12
F-561-0113 Edition
ASSEMBLY INSTRUCTIONS

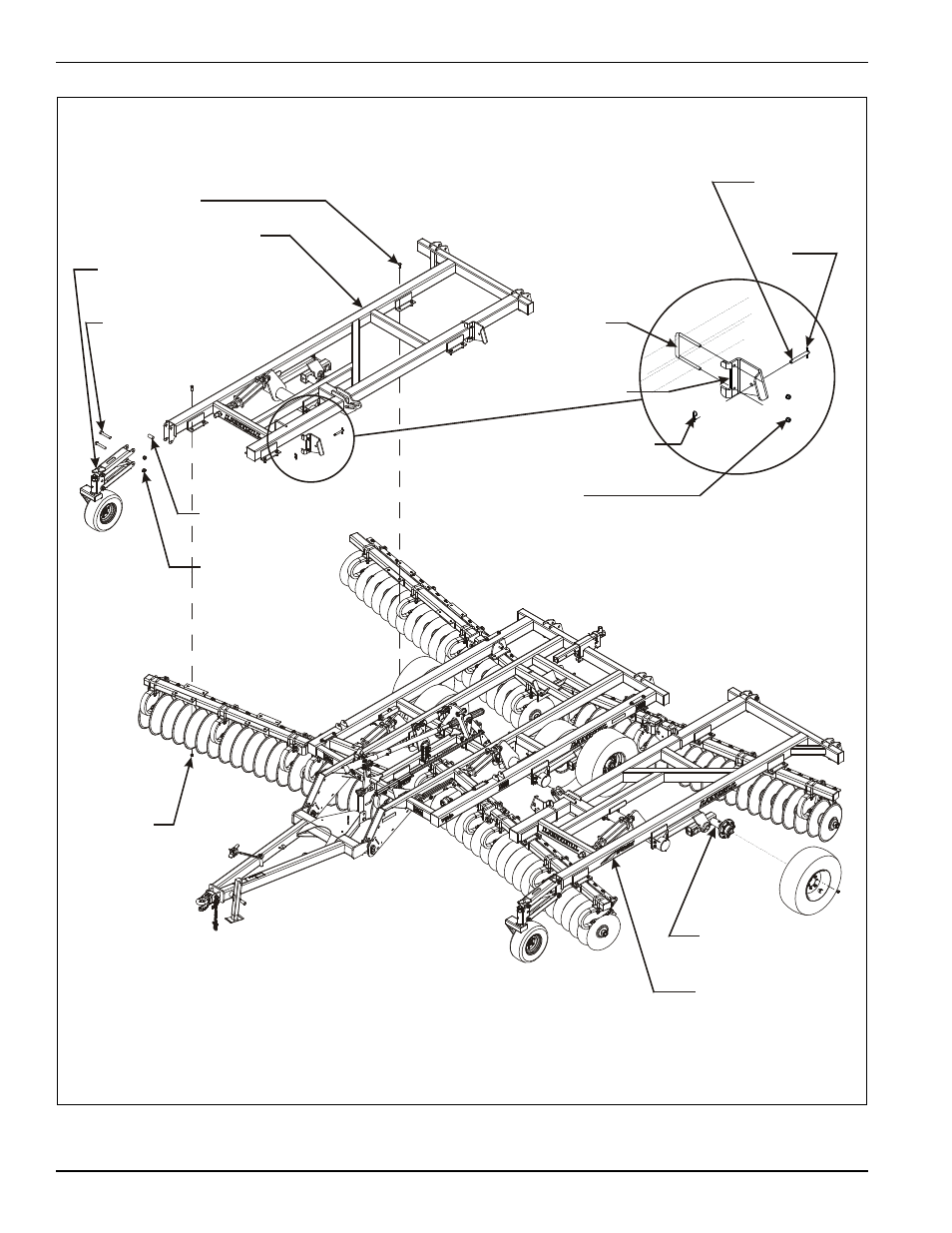

Figure 3-8: Wing Frame Installation
3/4-10 X 2 HEX HEAD
CAP SCREW
RIGHT WING FRAME
FRONT GAUGE
WHEEL ASSEMBLY
1-8 X 6 HEX HEAD
CAP SCREW
3/4-10 HEX
LOCK NUT
WING LIFT WHEEL
ASSEMBLY
LEFT WING FRAME
wing_assembly - 7431-26
WING
STABILIZER
U-BOLT
WING
STABILIZER
BRACKET
3/16 HAIR PIN
5/8-11 HEX LOCK
NUT
WING LOCK
PIN
1/4 X 3 ROLL
PIN
GAUGE WHEEL
SPACER
1-8 HEX LOCK
NUT
