Landoll 7450 VT Plus User Manual
Page 34
3-16
F-607-0114 Edition
ASSEMBLY INSTRUCTIONS

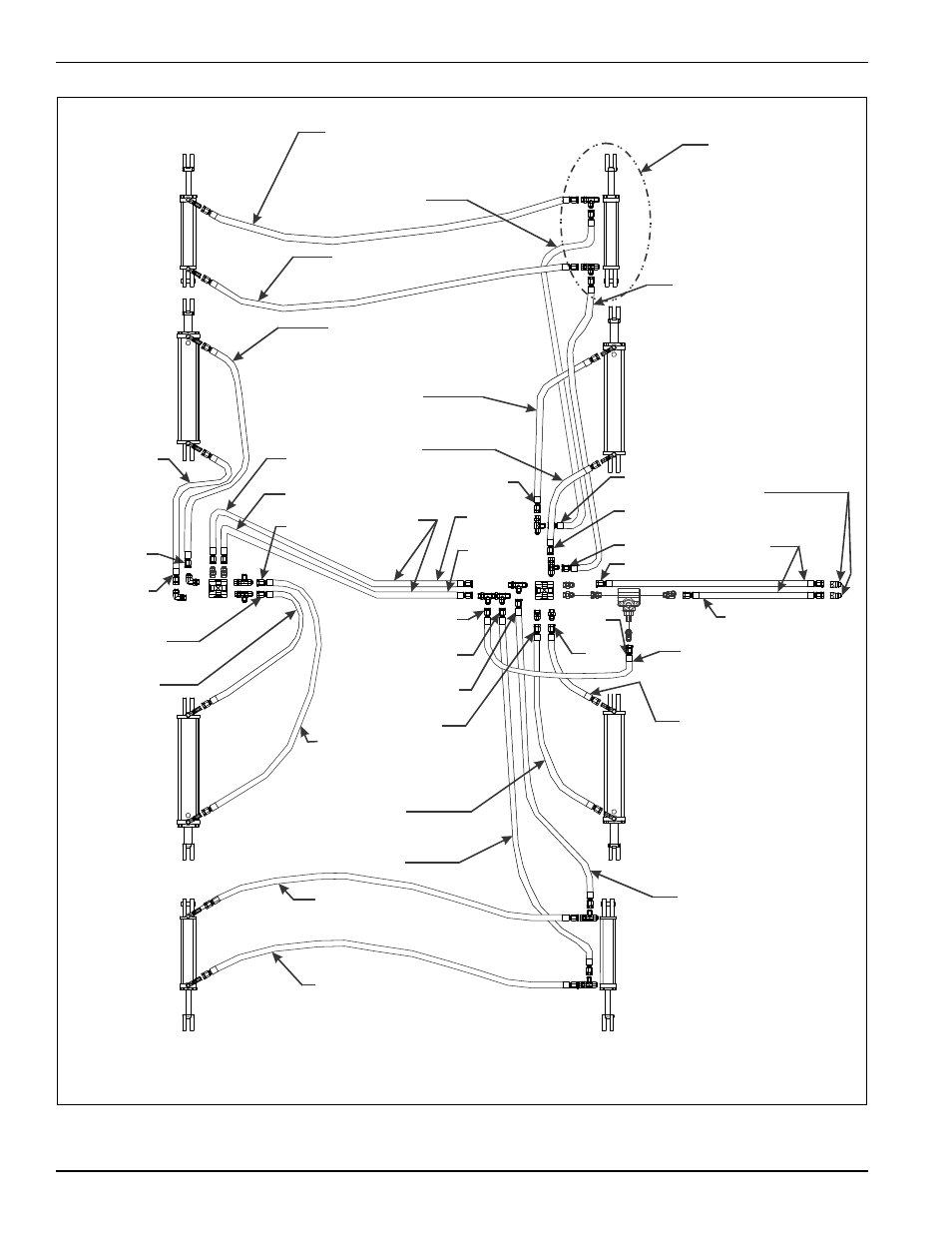

Figure 3-14: Fold Hydraulic Installation (44’ Model)
7450-44 fold hyd assembly op
(F-2)
(E-1)
(E-2)
(B)
(N-3)
(N-2)
(M-2)
(J)
(F-1)
(M-1)
(N-1)
(V)
(U)
(Q-1)
(S)
(T)
(R-1)
(A-1)
(A-2)
(I)
NOTE: ALL FOLD CYLINDERS ARE 4 X 30 HYDRAULIC CYLINDERS (P/N 140472)
3/8 X 190 HOSE
ASSEMBLY
3/8 X 146 HOSE
ASSEMBLY
3/8 X 123 HOSE
ASSEMBLY
3/8 X 64 HOSE
ASSEMBLY
3/8 X 42 HOSE
ASSEMBLY
3/8 X 24 HOSE
ASSEMBLY
3/8 X 100 HOSE
ASSEMBLY
3/8 X 114 HOSE
ASSEMBLY
3/4-16 MALE
COUPLER
3/8 X 276 HOSE
ASSEMBLY
3/8 X 20 HOSE
ASSEMBLY
3/8 X 72 HOSE
ASSEMBLY
3/8 X 168
HOSE ASSEMBLY
3/8 X 27
HOSE
ASSEMBLY
3/8 X 36 HOSE
ASSEMBLY
3/8 X 72 HOSE
ASSEMBLY
3/8 X 105 HOSE
ASSEMBLY
3/8 X 206 HOSE
ASSEMBLY
3/8 X 128
HOSE ASSEMBLY
3/8 X 202 HOSE
ASSEMBLY
SEE DETAIL B
