MAINTENANCE
4-5

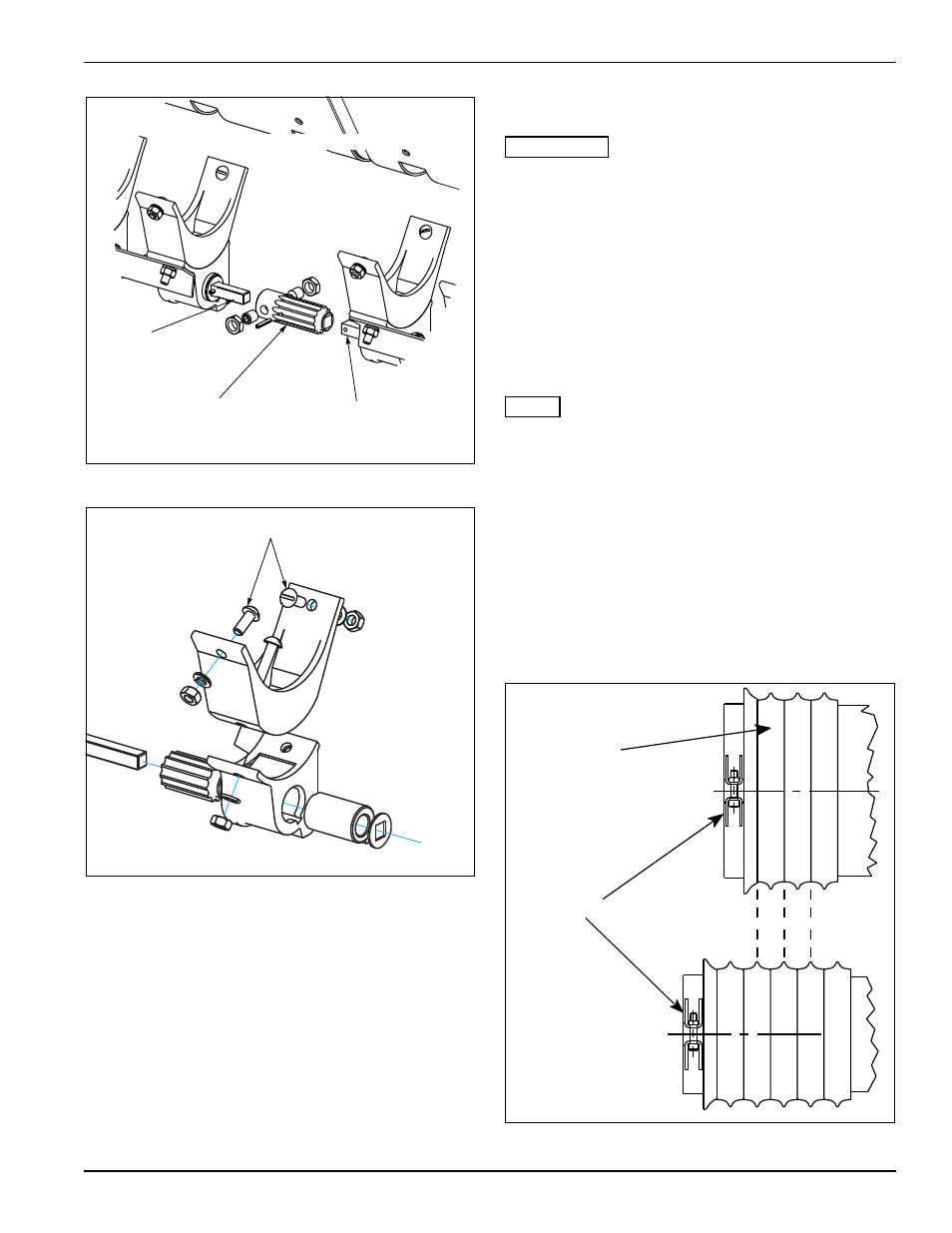

Figure 4-4: Seed Box
Figure 4-5 Individual Cups
Acre Meter Batteries
The battery operated acre counter uses 3 AA batteries.
The acre counter will display “LObat” when the batteries
require replacement. Remove the acre counter from the
implement and then the 4 screws on the back of the case.
Separate the housing from the rear plate. Replace the
batteries with 3 quality AA.
Roller Wheels
IMPORTANT
To maximize seed germination, peaks on rear wheels
should line up with valleys on the front wheels. This
will require adjusting both end clamps on the rear
tube drum and moving the wheels until valleys and
peaks line up. 4K913 Turfmaster Sprockets may be
added between the wheels to improve the alignment
of the peaks and valleys. Add as many sprockets
between the wheels as required to achieve proper
alignment. each sprocket is 3/8” wide.
Adjustment Procedure
NOTE
Failure to locate clamp band bolt over weld will cause
clamp band to loosen and slide.
Adjust the front roller wheels first. Loosen clamp bands
and slide wheels snug against each other, centering the
entire assembly under the deflector shields. Locate the
bolt in the clamp band over the weld on the pipe. Slide
the clamp band against the end wheel and tighten the
clamp band bolt. See Figure 4-6.
To adjust the rear roller wheels follow the front wheel
procedure. Start aligning the peaks of the rear wheels
with the valley of the front wheels at the center of the rear
roller. This will provide the best alignment of worn
wheels.
Figure 4-6: Clamp Bands
LEFT SHAFT
REAR OF SEEDBOXES
RIGHT SHAFT FEED ROLL COUPLING
MOUNTING BOLTS
FRONT
ROLLERS
CLAMP BANDS
