ASSEMBLY INSTRUCTIONS

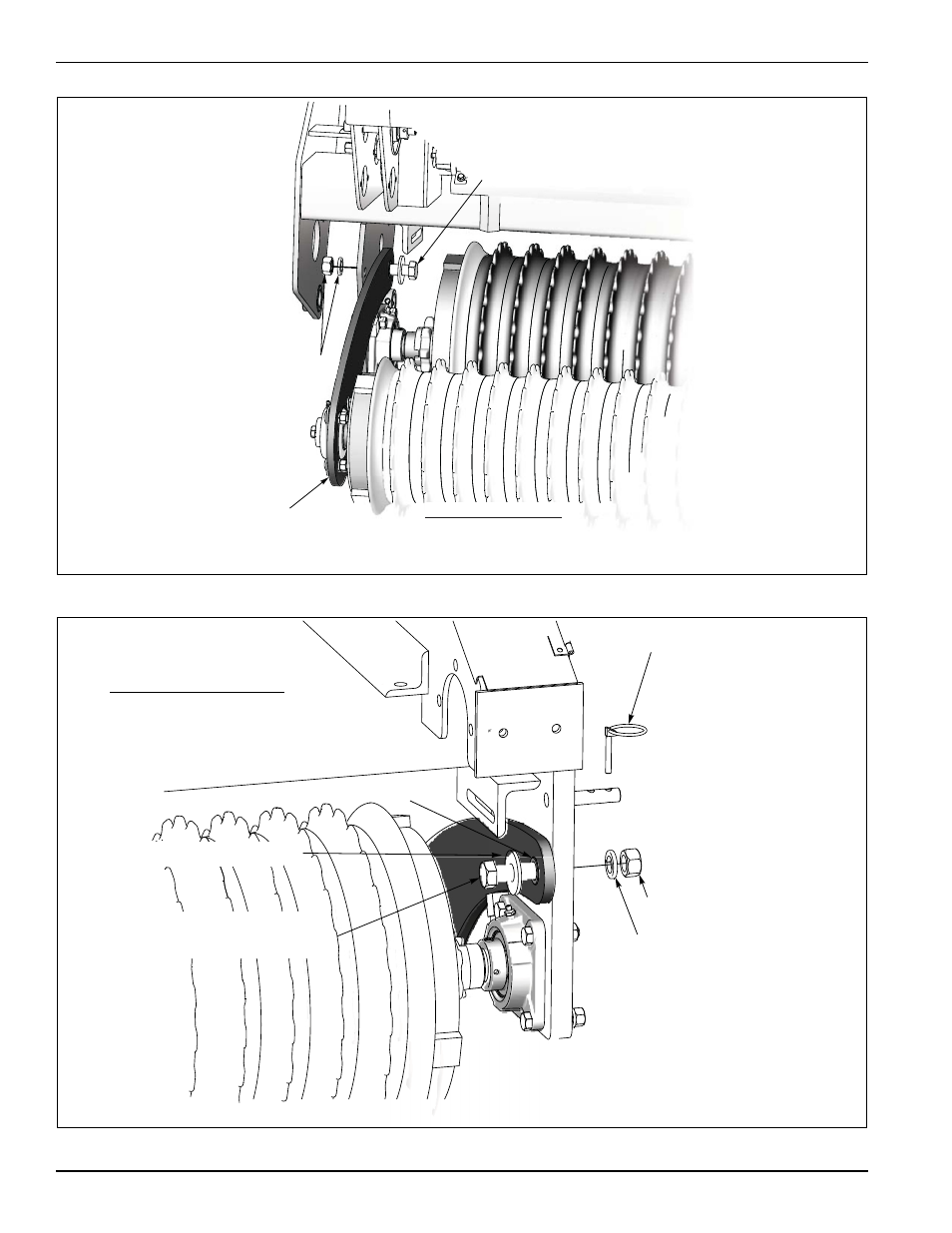

Figure 2-9: Left and Right Rear Arm Assemblies Step 11
Figure 2-10: Left and Right Rear Arm Assemblies Step 12 (Pick Up Model)
Lockwasher,3/4
Hex Nut,3/4-10
View From Rear
(Drawbar Model)
Left Rear Arm
Assembly
Screw,3/4-10 X 3” (Pick Up Frames)
Screw,3/4-10 X 2” (Drawbar Frames)
Flat Washer,3/4
•Install Parking Pin
and Klik Pin.
Nut,3/4-10
Lockwasher,3/4
Bushing
View From Front
(Pick Up Model)
Screw,3/4-10 X 3” (Pick-Up)
Screw,3/4-10 X 2” (Pull)
Flat Washer,3/4
