ASSEMBLY INSTRUCTIONS
2-15
8’ and 10’ Pick-up Drawbar Models

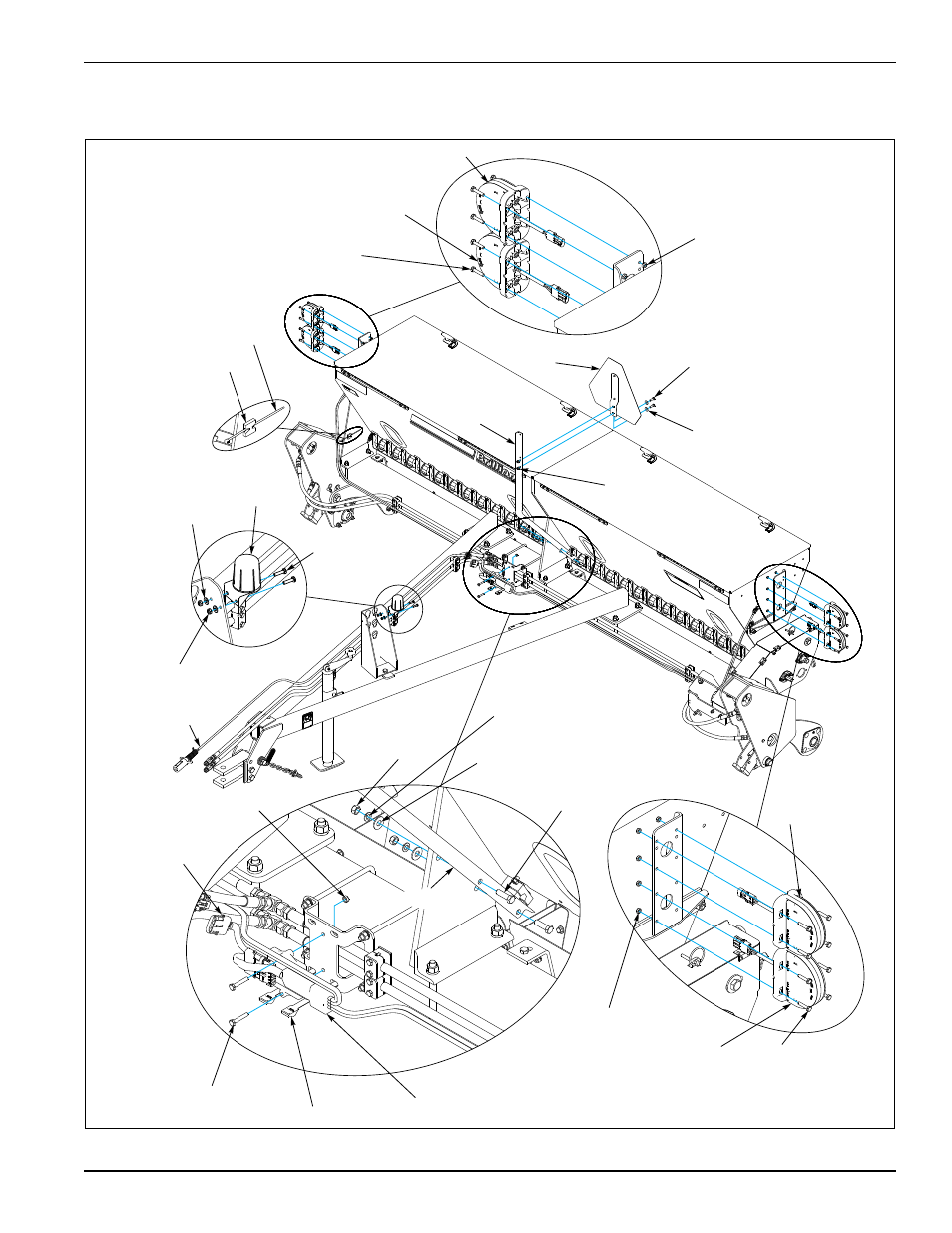

Figure 2-19: 8’ and 10’ Pick-up Drawbar Models
SMV
SMV
SUPPORT
TY-
WRAP
MOUNT
AMBER LED
RED
LED
NUT,1/4-20
SCREW,
1/4-20X1-1/4
NUT,1/4-20
SCREW,5/16-18X1
FLAT WASHER,5/16
NUT,1/4-20
NUT,1/4-20
7 PIN HARNESS
PLUG
HOLDER
SCREW,
1/4-20X1
NUT,1/4-20
FLAT
WASHER,1/4
LIGHT
MODULE
TIE STRAP
LAMP HARNESS
RED
LED
AMBER LED
SCREW,
1/4-20X1-1/4
SMV SUPPORT
SCREW,
1/4-20X1-1/2
SCREW,
3/8-16X1-1/4
FLAT WASHER,3/8
LOCKWASHER,3/8
NUT,3/8-16
