ASSEMBLY INSTRUCTIONS
2-7
Step 10
Attach Stub Shafts to the rear roller assembly, and then
add the Rear Arm Assemblies.
Roll rear roller assembly with Rear Arms attached into
position, behind the front roller. See Figure 2-8.
Figure 2-8: Seeder Assembly Step 10

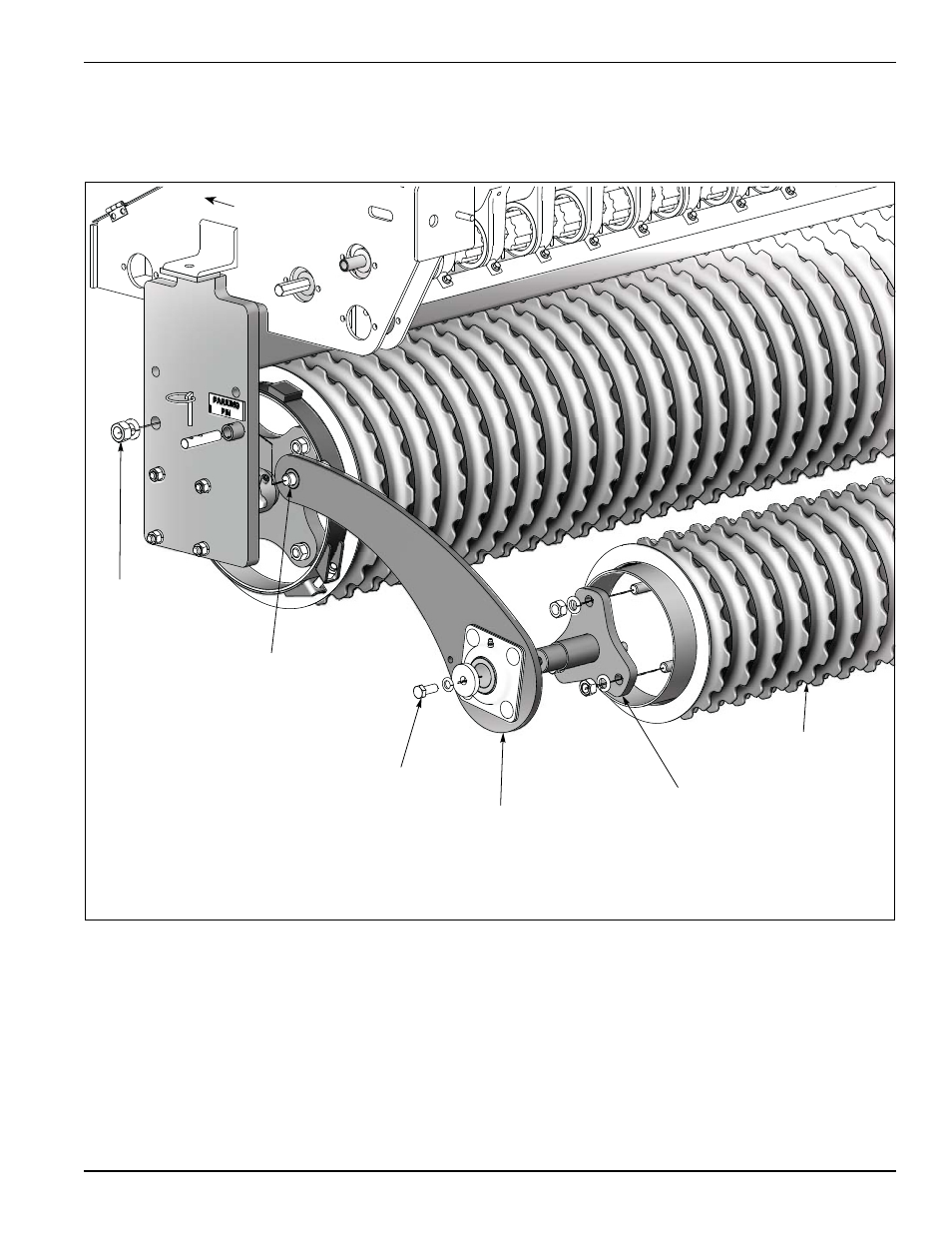

Step 11
Attach Left and Right Rear Arm assemblies to the frame.
(Drawing shows left side, right side is the same.) Secure
to the stubs hafts with 3/4” screws, lockwashers and nuts.
See Figure 2-9.
Step 12
Step 12 only applies to the Pick Up model. Left and Right
Rear Arm Assemblies. See Figure 2-10.
Hex Nut,3/4-10
Lockwasher,3/4
Rear Roller Assembly
Rear Stub Shaft
(3-Bolt,5/8”)
Screw,1/2-20 X 1-1/4”
Lockwasher,1/2
Washer,1/2” X 2-1/16 X 3/8
Front
Bearings On Rear Arm
Assemblies On Outside.
Screw,3/4-10 X 3” (Pick Up Frames)
Flat Washer,3/4
