ASSEMBLY INSTRUCTIONS
2-19
Latch Installation
Large Seedbox Cover with Latches and Gas Springs.
1. Place the gasket on latch base and place on seedbox
cover.
2. Install slotted screws to secure latch to cover. Thread
the nut onto latch rod, then slide on internal tooth
washer, pawl, the other internal tooth washer and
then thread on the other nut. Hand tighten only.
3. Close the cover and turn latch to see if pawl fits snug
up against seedbox lip. If it does not, open cover and
adjust nuts accordingly.
4. When properly adjusted, securely tighten latch nuts.

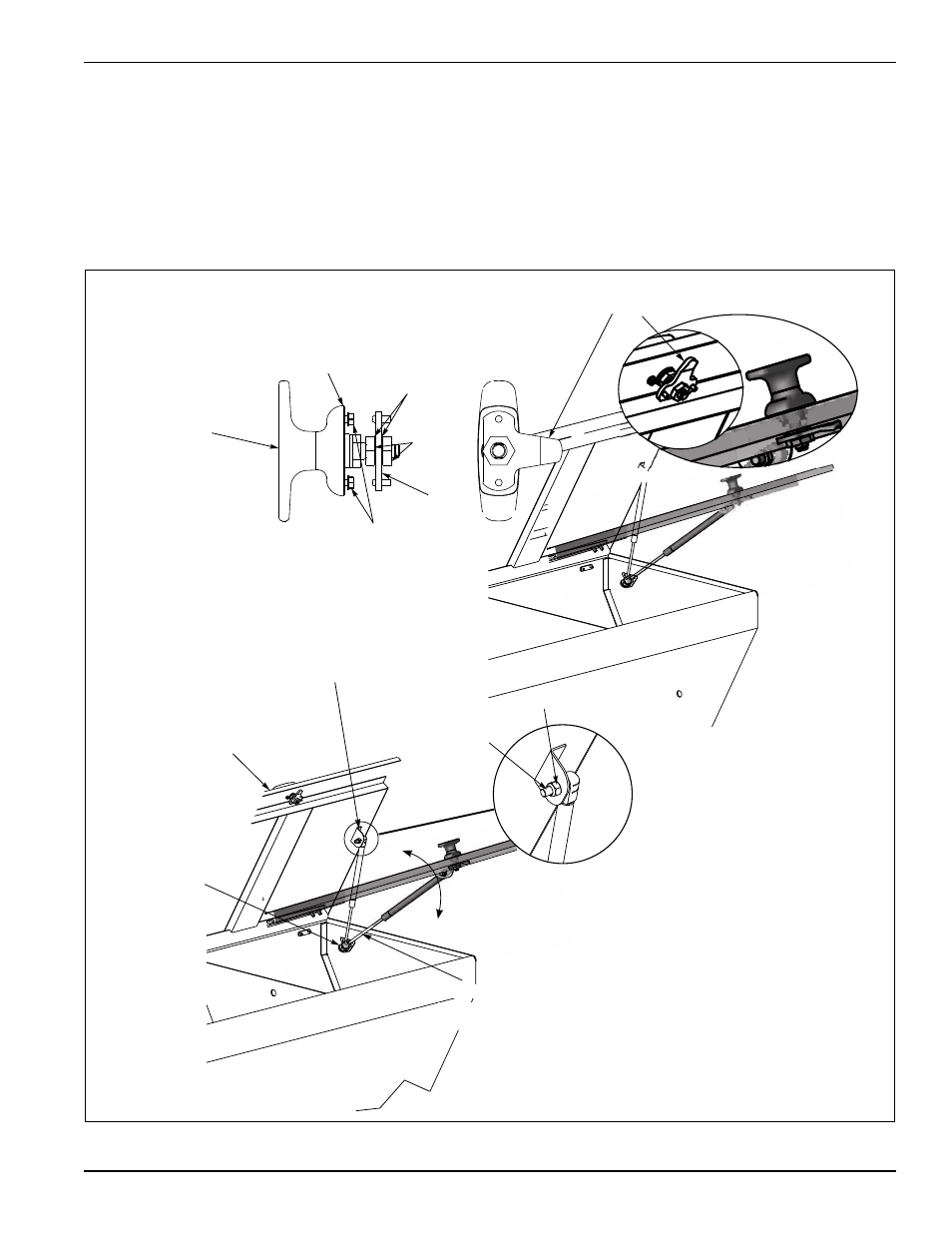

Figure 2-26: Latch Installation
Snap Rod End
Of Gas Spring
To Seedbox
Snap Base End
of Gas Spring
to Cover
Ball Stud,
10mm X 3/4
Nut, Nylock 5/16-18
Cover
Latch
Gasket
(2) Slotted
Screws
Pawl
(2) Nut
(2) Internal
Tooth
Washers
Gas Spring, 60#
Correct Orientation-
This End Must Be Down
Pawl
(closed Position)
Large Seedbox Cover
with Latches & Gas Springs
