Kinze 3600 Lift and Rotate Planter (70 CM) Rev. 5/14 - Manual (Page 41)

TM
Model 3600 M0249-01
Rev. 7/13 2-29
Machine Operation
NOTE: Readjust row markers when planting
76.2 cm rows.
Number Of Rows x Row Spacing (centimeters)
=
Dimension Between Planter Center Line
And Marker Blade
12 Rows x 70 cm Spacing = 840 cm Marker Dimension
16 Rows x 70 cm Spacing = 1120 cm Marker Dimension
Adjust marker extensions as shown below when using even-row push row unit option.
Center Of 35 cm Dimension
Planter To x 2 + Row = Between
Center Of Spacing Planter Center
Outer Row Line And
Unit Marker Blade
12 Row 70 cm With 12 Interplant Push Row Units
(L.H. Marker 457 cm x 2 + 35 cm = 949 cm)
(R.H. Marker 419 cm x 2 + 35 cm = 873 cm)
16 Row 70 cm With 16 Interplant Push Row Units
(L.H. Marker 610 cm x 2 + 35 cm = 1255 cm)
(R.H. Marker 572 cm x 2 + 35 cm = 1179 cm)

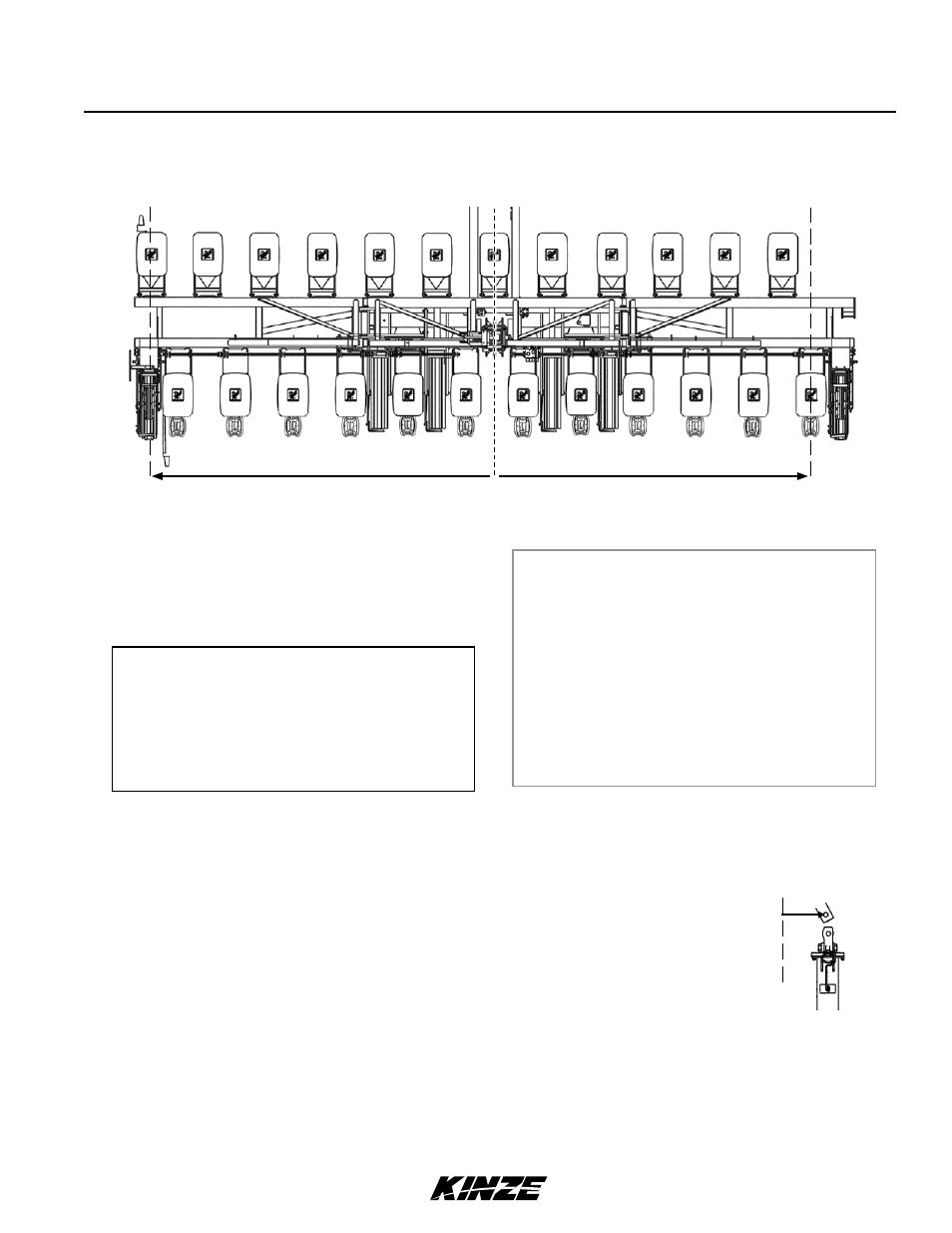

ROW MARKER EVEN-ROW LENGTH ADJUSTMENT
Planter centerline To center of outer row unit To center of outer row unit
Tractor center line
Tractor hitch offset
19 cm right.
OFFSET HITCH ADJUSTMENT
If tractor hitch is offset 19 cm right of tractor center line,
add 19 cm to marker dimension on R.H. side of planter and
subtract 19 cm from marker dimension on L.H. side of planter.
