TM
Model 3600 M0249-01
Rev. 7/13 5-25

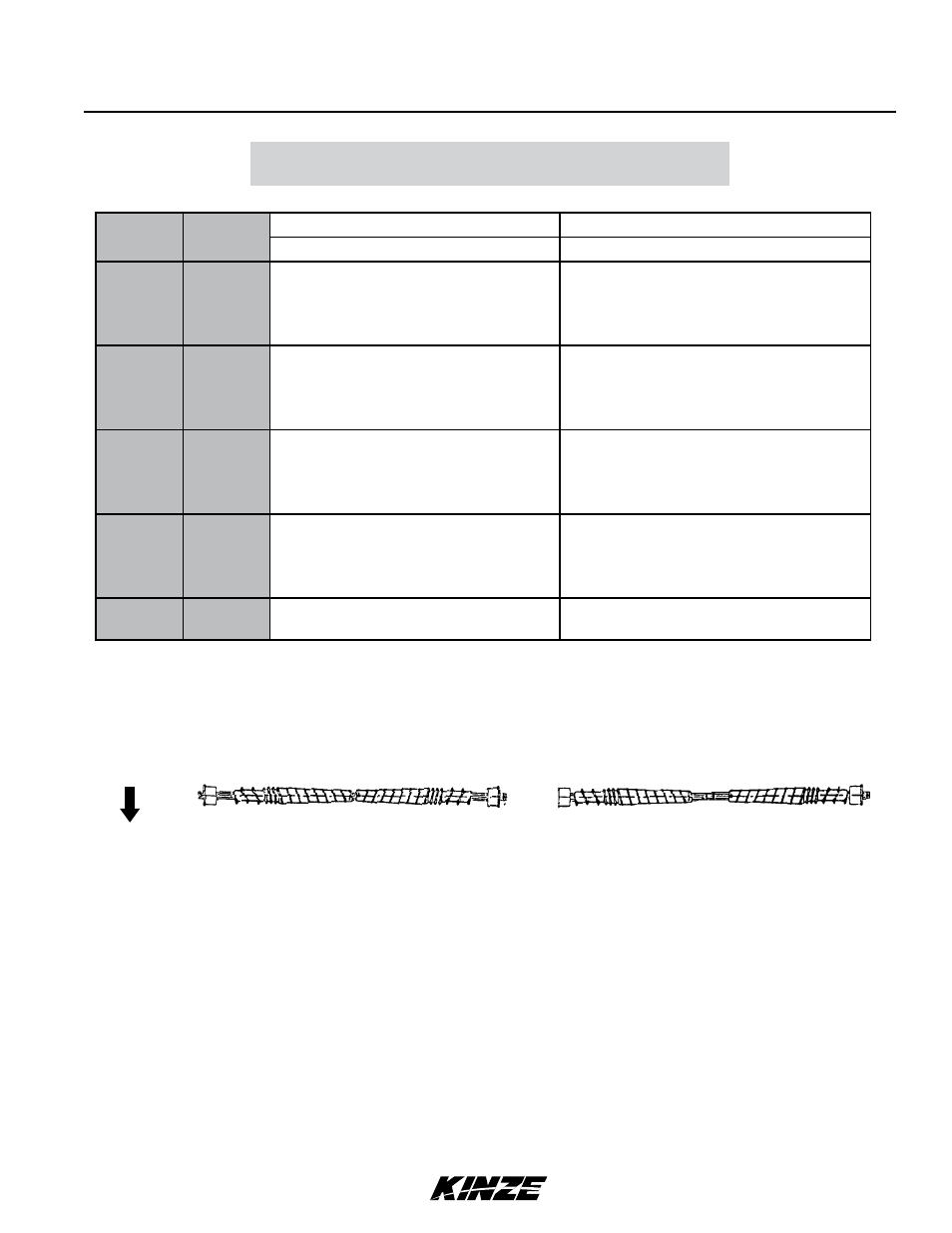

Rate Charts
DRY FERTILIZER APPLICATION RATES (EdgeVac)
28 TOOTH CONTACT WHEEL DRIVE SPROCKET
APPROXIMATE RATE IN POUNDS PER ACRE
Drive
Sprocket
Driven
Sprocket
Low Rate Position High Rate Position
70 CM Rows 70 CM Rows
15 35 40 119
15 33 46 135
15 30 50 150
19 33 57 171
19 30 62 191
15 19 72 218
30 35 77 237
30 33 83 251
33 35 87 260
35 33 97 293
33 30 100 304
19 15 115 376
30 19 144 435
33 19 159 479
35 19 169 507
30 15 182 552
33 15 200 606
35 15 212 644
NOTE: (Edgevac ONLY) 22, 28 and 44 tooth drive sprockets are NOT applicable to all rate charts. Check title to
ensure proper rate chart is selected. DO NOT USE 44 tooth drive sprockets (60 cell soybean discs) with Dry
Fertilizer Package.
NOTE: Uneven delivery may result from attempting to use rates lower than indicated by chart.
Direction
Of Rotation
High Rate Position Low Rate Position
Chart is for planters equipped with contact drive. See “Tire Pressure” for recommended tire pressures.
Chart calculated with a bulk density of 65 pounds per cubic foot.
NOTE: Fertilizer application rates can vary from weights calculated in chart. Make field checks to be sure
you are applying fertilizer at desired rate.
NOTE: Optional two-speed point row clutch is located ahead of dry fertilizer drive. Activating two-speed
point row clutch reduced rate switch will cause same percent of reduction in dry fertilizer application rates.
To check exact number of pounds your fertilizer attachment actually delivers on a 30" row spacing, remove one
spout from one fertilizer hopper and attach a container under opening. Engage fertilizer attachment and drive
forward for 174'. Weigh amount of fertilizer caught in container and multiply that by 100. Result is pounds of
fertilizer per acre when planting in 30" rows.
