Model 3600
M0249-01
Rev. 7/13
2-21
Machine Operation
5. Hold control console “RAISE/WING LOCK” switch in
“
RAISE” and operate hydraulic control until two center lift
cylinders are fully extended and safety hook at top of center
section rotates into locking position.
6. Lower planter onto safety hook using hydraulic control.

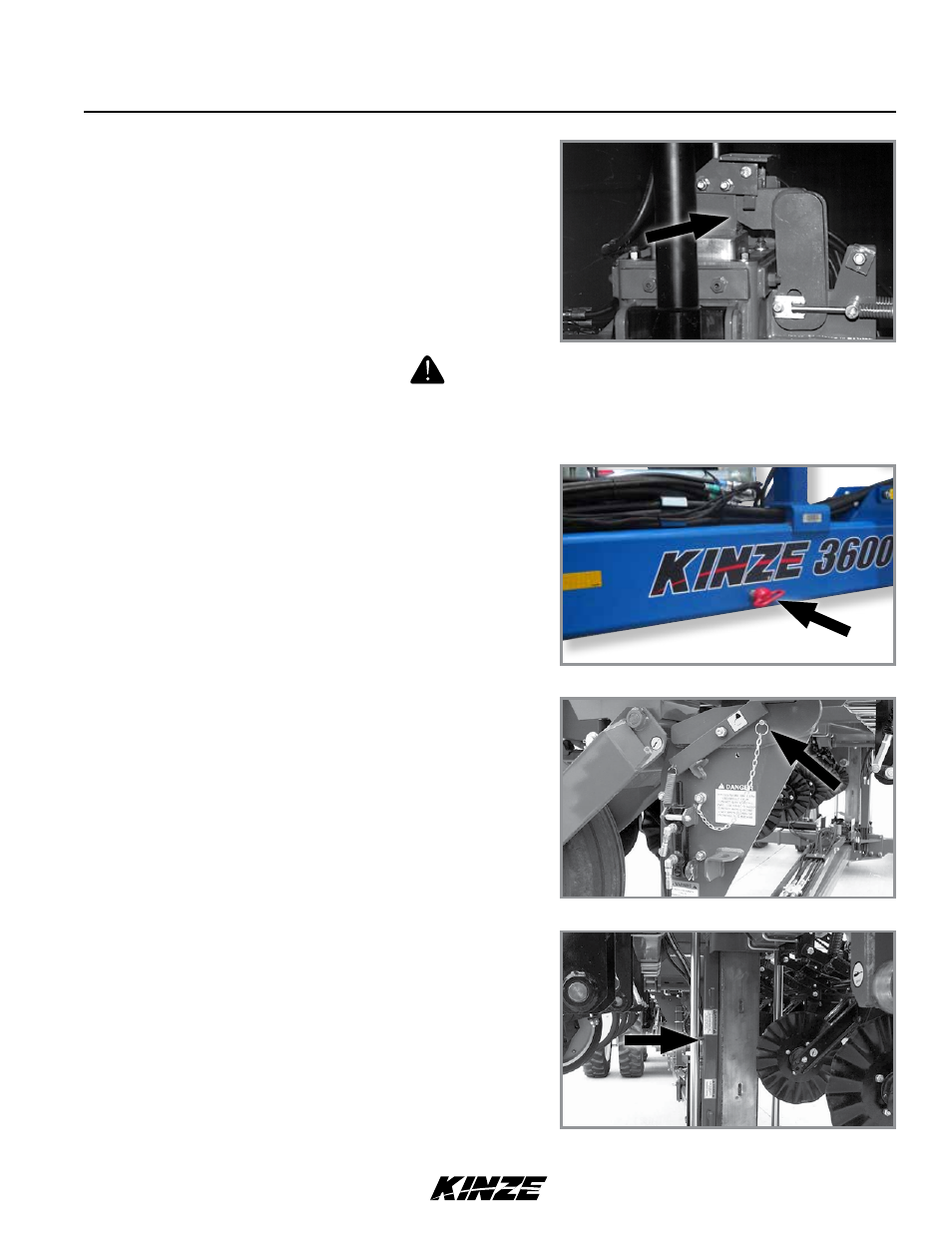

Center section safety hook
WARNING
Uncontrolled movement of equipment can cause loss of control
and could result in death, serious injury, or damage to property and
equipment. Install all safety pins before transporting equipment.
7. Hold control console “ROTATE/TONGUE” switch in
“
ROTATE” and operate hydraulic control to rotate planter
until transport latch is engaged.
8. Install tongue safety pin.
Tongue safety pin
Transport latch locking pin installed
9. Install transport latch locking pin.
10. Remove manual safety lockup from storage location on
left side of axle hitch and position it behind front center lift
cylinder.
Manual safety lockup installed
