Kinze 3600 Lift and Rotate Planter (70 CM) Rev. 5/14 - Manual (Page 27)

TM
Model 3600 M0249-01
12/12 2-15
Machine Operation

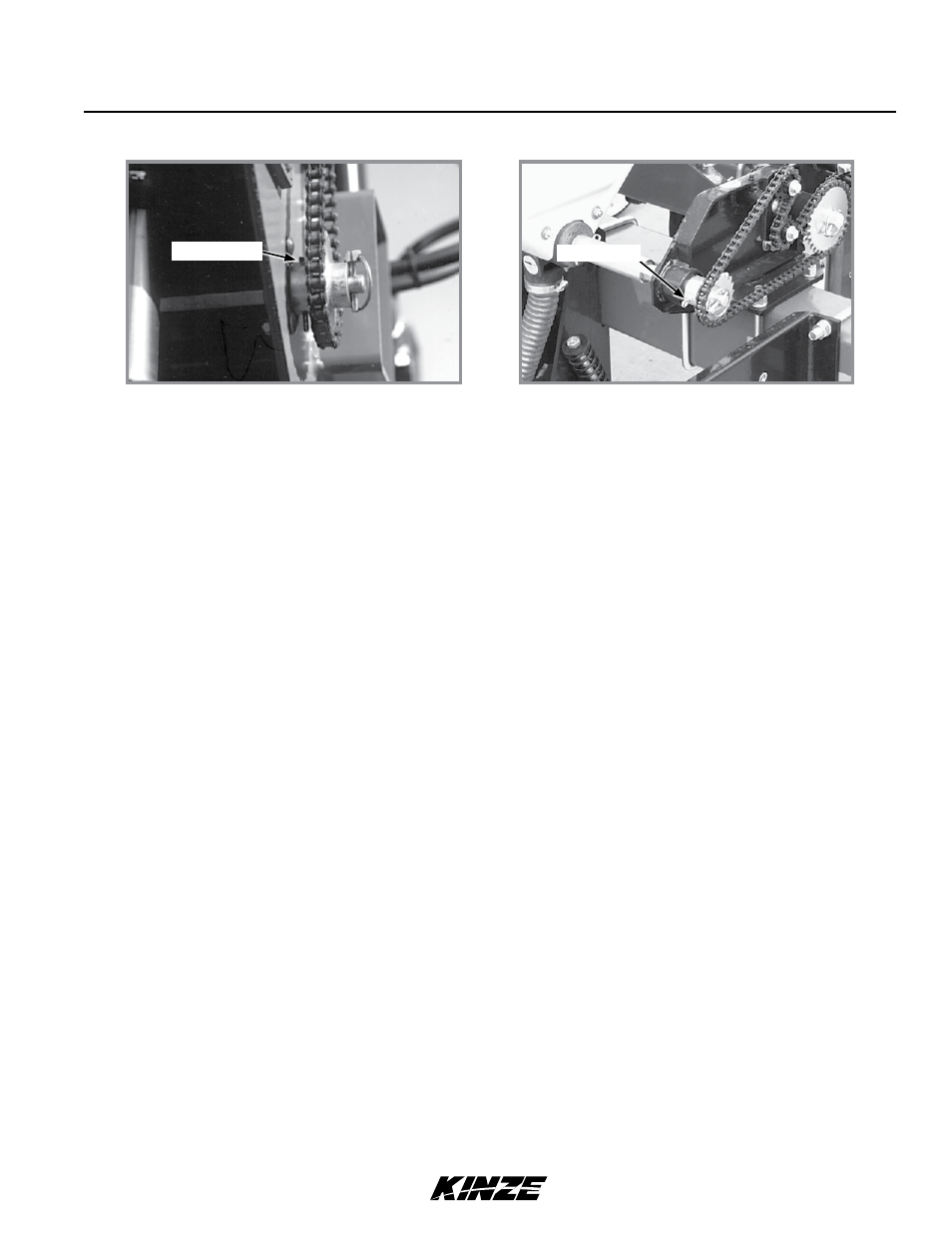

Dry fertilizer attachment transmission Transmission shaft
Shear pins protect planter driveline and row unit components from damage.
1. Determine where binding has occurred before replacing a pin. Turn shaft by hand (with the aid of a wrench) and
check for misalignment and seized parts.
2. When shaft can be turned by hand (with the aid of a wrench) replace shear pins with same size and type. Spare
shear pins are stored inside ends of rear planter frame.
NOTICE
Misaligned drill shaft/transmission coupler can cause equipment damage.
3. Check driveline alignment and follow prescribed lubrication schedules to prevent component binding or breakage.
SHEAR PROTECTION
3∕16 " shear pin
3∕16 " shear pin
