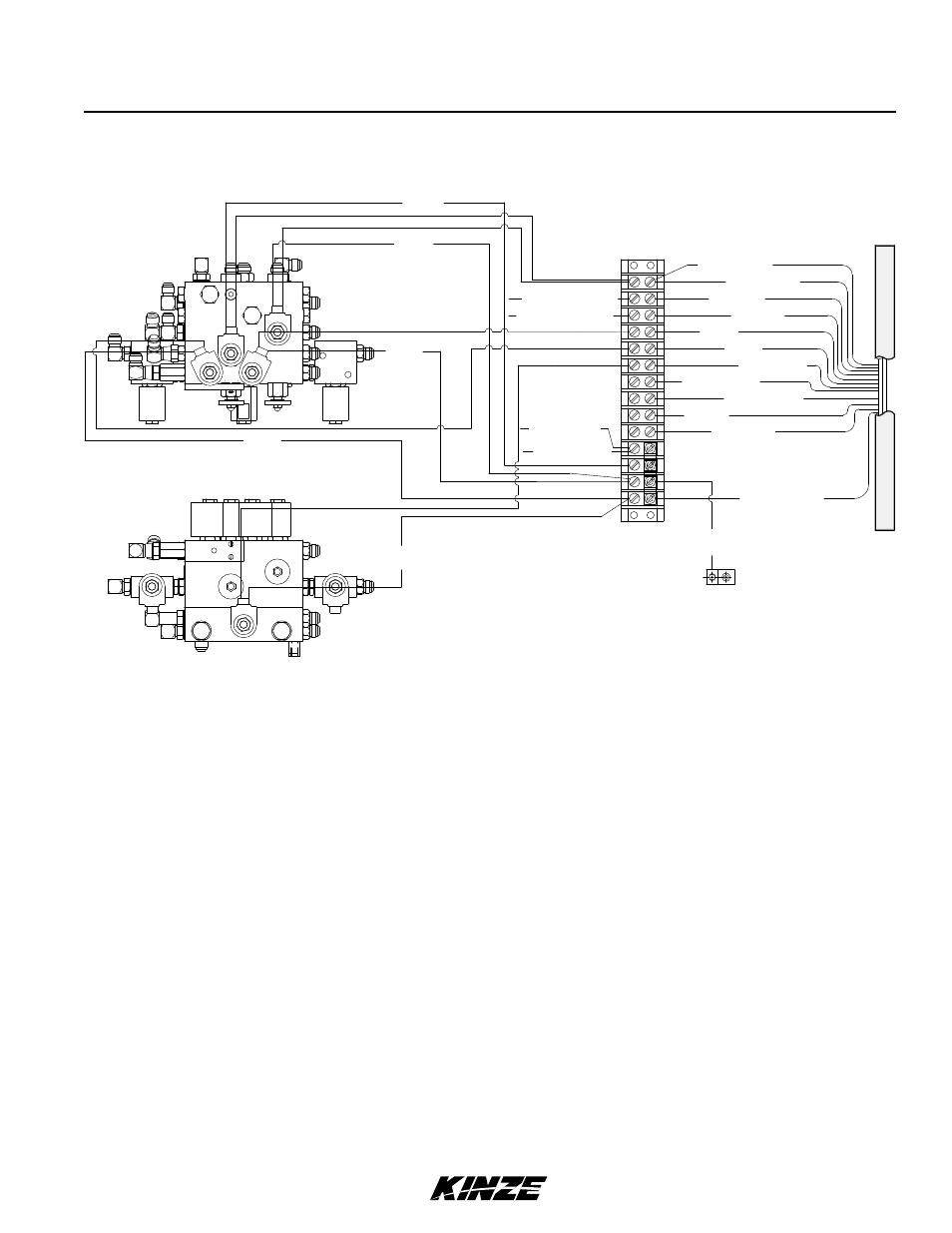

VALVE BLOCK - LOCATED ON REAR CENTER FRAME

1. BLACK - Pin “T” (Ground)
2. RED/BLACK - Pin “U” (R.H. Two-Speed Clutch)*
3. YELLOW - Pin “S” (Le.H.Two-Speed Clutch)*
4. ORANGE/BLACK - Pin “W” (Auxiliary) - Ports V5 & V6
5. ORANGE/BLACK - Pin “W” (Auxiliary) - Ports V5 & V6
6. BLUE/BLACK - Pin “V” (Raise To Transport) - Port V16
7. RED - Pin “O” (R.H. Marker) - Port V1
8. BLUE - Pin “H” (L.H. Marker) - Port V2
9. ORANGE - Pin “G” (R.H. Point Row Clutch)
10. BROWN - Pin “R” (L.H. Point Row Clutch)
11. YELLOW/RED - Pin “F” (Wing Lock) - Ports V3 & V4
12. YELLOW/RED - Pin “F” (Wing Lock) - Ports V3 & V4
13. BLACK - (R.H. Point Row Ground)
14. BLACK - (L.H. Point Row Ground)
15. RED - (R.H. Point Row)
16. RED - (L.H. Point Row)

* See page 7-40 if equipped with optional Two-Speed Point Row Clutch Package.

12. Yellow/Red

11. Yellow/Red

10. Brown

9. Orange

8. Blue

7. Red

6. Blue/Black

5. Orange/Black

4. Orange/Black

3. Yellow

2. Red/Black

1. Black Ground

Ground to

planter frame

Terminal

Strip

13. (R.H. Point Row)

Black Ground

14. (L.H. Point Row)

Black Ground

16. L.H. (Point Row) Red

15. R.H. (Point Row) Red

Ground

V15

V17

V16
