Model 3600 M0236-01
Rev. 6/14 2-27
Machine Operation
NOTE: Readjust row markers when planting
30" rows.
Number Of Rows x Row Spacing (Inches)
=
Dimension Between Planter Center Line
And Marker Blade
12 Rows x 30" Spacing = 360" Marker Dimension
16 Rows x 30" Spacing = 480" Marker Dimension
Adjust marker extensions as shown below when using even-row push row unit option.
Center Of 15" Dimension
Planter To x 2 + Row = Between
Center Of Spacing Planter Center
Outer Row Line And
Unit Marker Blade
12 Row 30" With 12 Interplant Push Row Units
(L.H. Marker 180" x 2 + 15" = 375")
(R.H. Marker 165" x 2 + 15" = 345")
16 Row 30" With 16 Interplant Push Row Units
(L.H. Marker 240" x 2 + 15" = 495")
(R.H. Marker 225" x 2 + 15" = 465")

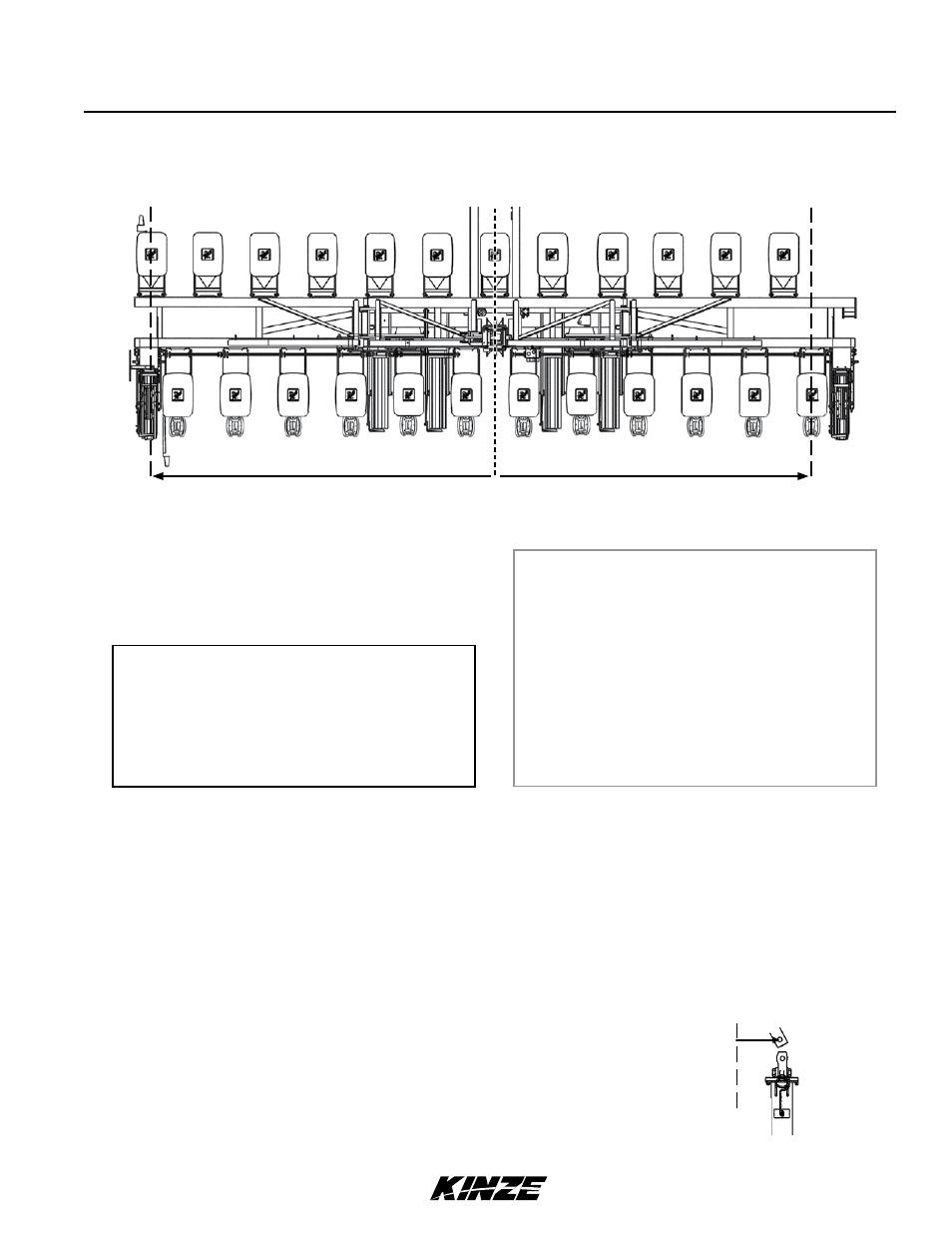

ROW MARKER EVEN-ROW LENGTH ADJUSTMENT
Planter centerline To center of outer row unit To center of outer row unit
Tractor center line
Tractor hitch offset
7½" right.
OffSET HITCH ADJUSTMENT
If tractor hitch is offset 7½" right of tractor center line, add 7½"
to marker dimension on R.H. side of planter and subtract 7½"
from marker dimension on L.H. side of planter.
L.H. SIDE 30" - 71∕2" TWIN ROWS
Number Row 33⁄4" Dimension
Of Rows Spacing Hitch Between
x (Inches) + Offset = Planter Center
Line And
Marker Blade
12 Rows x 30" + 33⁄4" = 363.75"
16 Rows x 30" + 33⁄4" = 483.75"
R.H. SIDE 30" - 71∕2" TWIN ROWS
Number Row 33⁄4" Dimension
Of Rows Spacing Hitch Between
x (Inches) - Offset = Planter Center
Line And
Marker Blade
12 Rows x 30" - 33⁄4" = 356.25"
16 Rows x 30" - 33⁄4" = 476.25"
