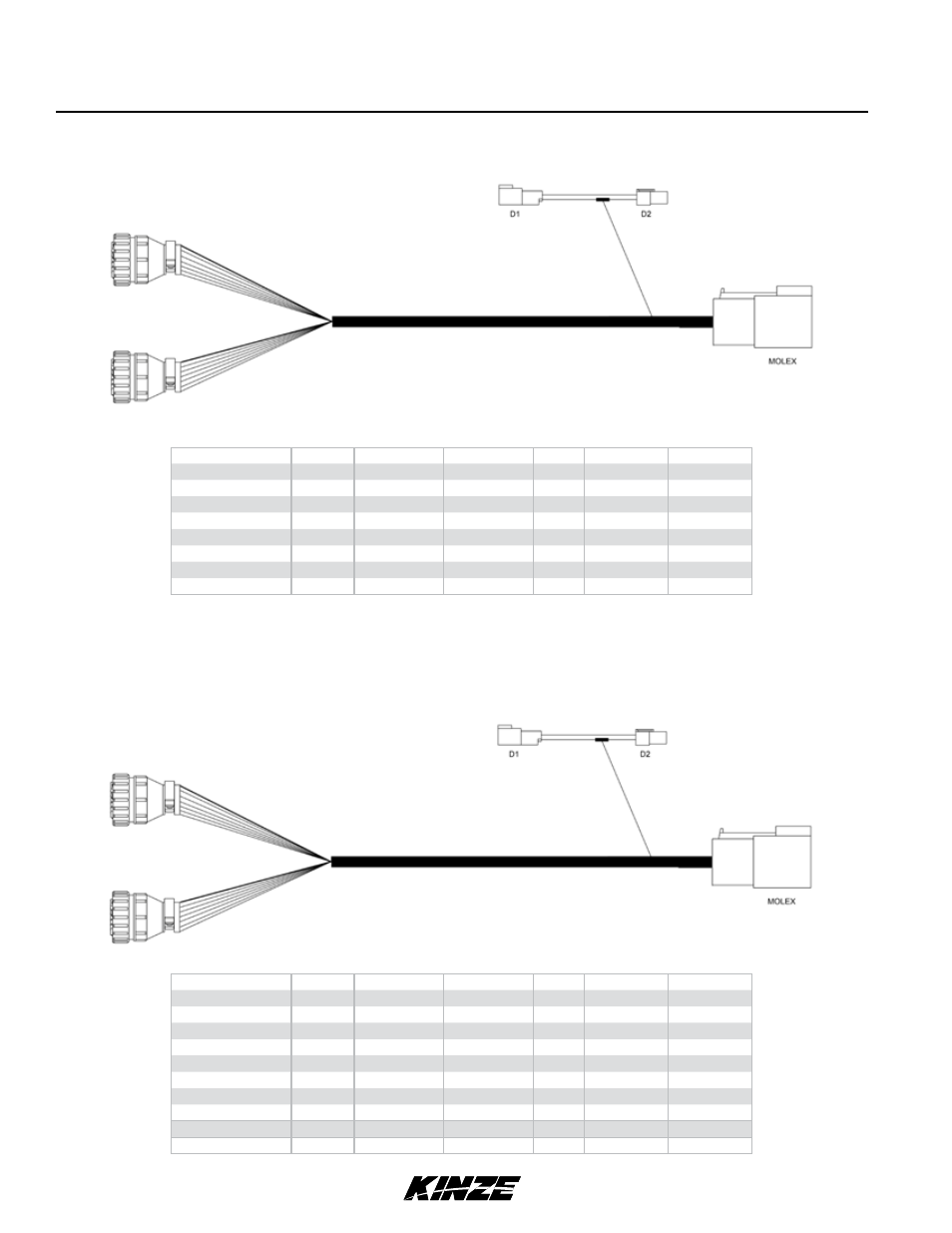

SECTION ADAPTER CABLE - 12 ROW
SECTION ADAPTER CABLE - 16 ROW
Signal
Color
AMP 1 (Left) AMP 2 (Right) Molex
D1
D2
High Current Power
Red
1 (16 Gauge)
1 (16 Gauge)
-
1 (12 Gauge) 1 (12 Gauge)
Ground
Black
-
-
-
2
2
Row 1, 2
Black
2, 3
-
1
-
-
Row 3, 4
Brown
4, 5
-
2
-
-
Row 5, 6
Orange
6, 7
-
3
-
-
Row 7, 8
Pink
-
6, 7
4
-
-
Row 9, 10
Green
-
4, 5
5
-
-
Row 11, 12
Yellow
-
2, 3
6
-
-
Signal
Color
AMP 1 (Left) AMP 2 (Right) Molex
D1
D2
High Current Power
Red
1 (16 Gauge)
1 (16 Gauge)
-
1 (12 Gauge) 1 (12 Gauge)
Ground
Black
-
-
-
2
2
Row 1, 2
Black
2, 3
-
1
-
-
Row 3, 4
Brown
4, 5
-
2
-
-
Row 5, 6
Orange
6, 7
-
3
-
-
Row 7, 8
Pink
8, 9
4
-
-
Row 9, 10
Green
-
8, 9
5
-
-
Row 11, 12
Yellow
-
6, 7
6
-
-
Row 13, 14
Blue
-
4, 5
7
-
-
Row 15, 16
Violet
-
2, 3
8
-
-
