Lubrication and Maintenance
MOUNTING BOLTS AND HARDWARE
WARNING
Parts separation can result in death, serious injury, and damage to
property and equipment. Check all hardware is tight before oper-
ating planter the first time. Check all hardware again after first 50
hours of operation and beginning of each planting season.
NOTICE
Over-tightening hardware can reduce its shock load capacity and
cause equipment failure.
Hardware used on Kinze planters are Grade 5 (high strength) unless otherwise noted. Grade 5 cap screws are
marked with three radial lines on the head. Hardware must be replaced with equal size, strength, and thread type.

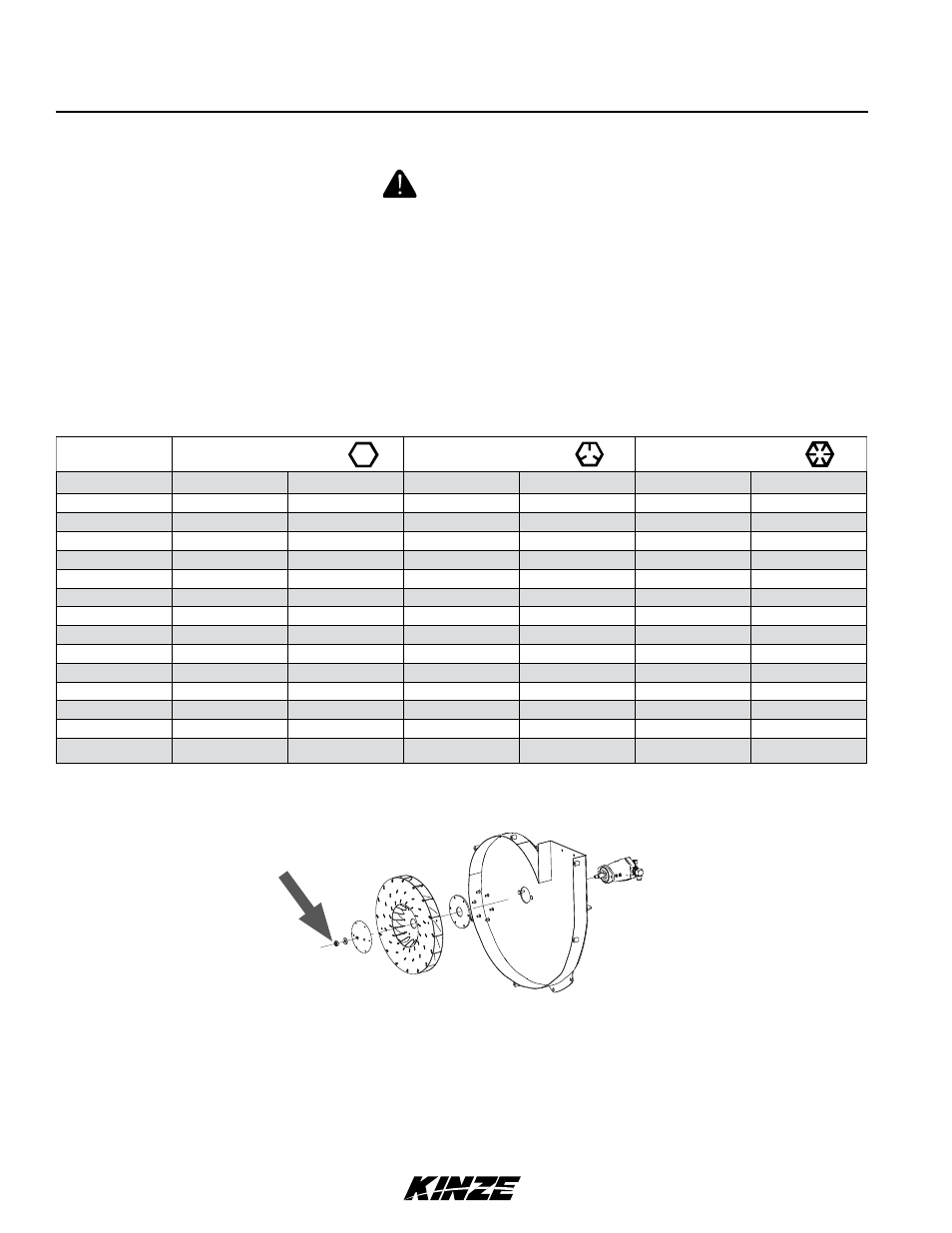

NOTE: Torque EdgeVac fan impeller assembly to
motor shaft ⅝"-18 hex jam nut 50 ft-lb (67.8 N-m).
TORqUE VALUES CHART - PLATED HARDWARE
Grade 2 (No marks) Grade 5 (3 marks)
Grade 8 (6 marks)
Diameter Coarse Fine Coarse Fine Coarse Fine
¼ " 50 in-lb 56 in-lb 76 in-lb 87 in-lb 9 ft-lb 10 ft-lb
5∕16 " 8 ft-lb 9 ft-lb 13 ft-lb 14 ft-lb 18 ft-lb 20 ft-lb
⅜ " 15 ft-lb 17 ft-lb 23 ft-lb 26 ft-lb 33 ft-lb 37 ft-lb
7∕16 " 25 ft-lb 27 ft-lb 37 ft-lb 41 ft-lb 52 ft-lb 58 ft-lb
½ " 35 ft-lb 40 ft-lb 57 ft-lb 64 ft-lb 80 ft-lb 90 ft-lb
9∕16 " 50 ft-lb 60 ft-lb 80 ft-lb 90 ft-lb 115 ft-lb 130 ft-lb
⅝ " 70 ft-lb 80 ft-lb 110 ft-lb 125 ft-lb 160 ft-lb 180 ft-lb
¾ " 130 ft-lb 145 ft-lb 200 ft-lb 220 ft-lb 280 ft-lb 315 ft-lb
⅞ " 125 ft-lb 140 ft-lb 320 ft-lb 350 ft-lb 450 ft-lb 500 ft-lb
1" 190 ft-lb 205 ft-lb 480 ft-lb 530 ft-lb 675 ft-lb 750 ft-lb
1⅛" 265 ft-lb 300 ft-lb 600 ft-lb 670 ft-lb 960 ft-lb 1075 ft-lb
1¼" 375 ft-lb 415 ft-lb 840 ft-lb 930 ft-lb 1360 ft-lb 1500 ft-lb
1⅜" 490 ft-lb 560 ft-lb 1100 ft-lb 1250 ft-lb 1780 ft-lb 2030 ft-lb
1½" 650 ft-lb 730 ft-lb 1450 ft-lb 1650 ft-lb 2307 ft-lb 2670 ft-lb
NOTE: Torque unplated hardware and bolts with lock nuts approximately ⅓ higher than above values. Torque
bolts lubricated prior to installation to 70% of value shown in chart.
