TM
Model 3600 M0236-01
Rev. 10/12 6-3

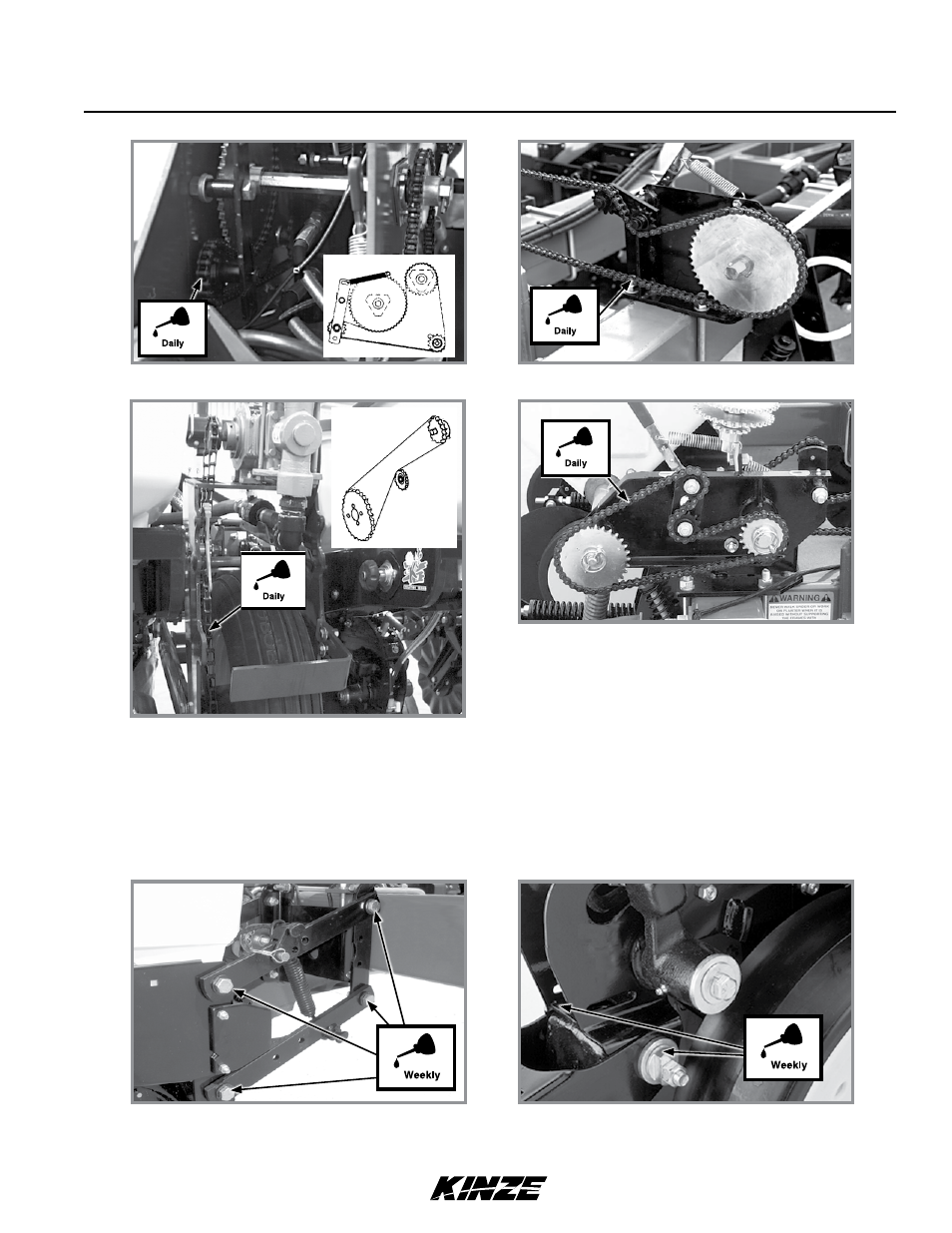

Lubrication and Maintenance
Liquid fertilizer drive chains (Squeeze pump) Inner wheel module drive chains
Piston pump ground drive chain
Dry fertilizer drive chains
BUSHINGS
Lubricate bushings at frequency indicated.
Check each bolt for proper torque. If bolt is loose, removed it and inspect bushing for cracks and wear. Replace
bushing if necessary. Use only hardened flat washers. Replace damaged flat washers with proper part. Torque
hardware to 130 ft-lb (176.2 N-m).
Pull row unit and/or push row unit parallel
linkages (8 per row) Row unit “v” closing wheel, covering discs/
single press wheel and/or drag closing wheel
eccentric bushings (2 per row)
