M0236-01 Model 3600
6-4 Rev. 7/11
TM

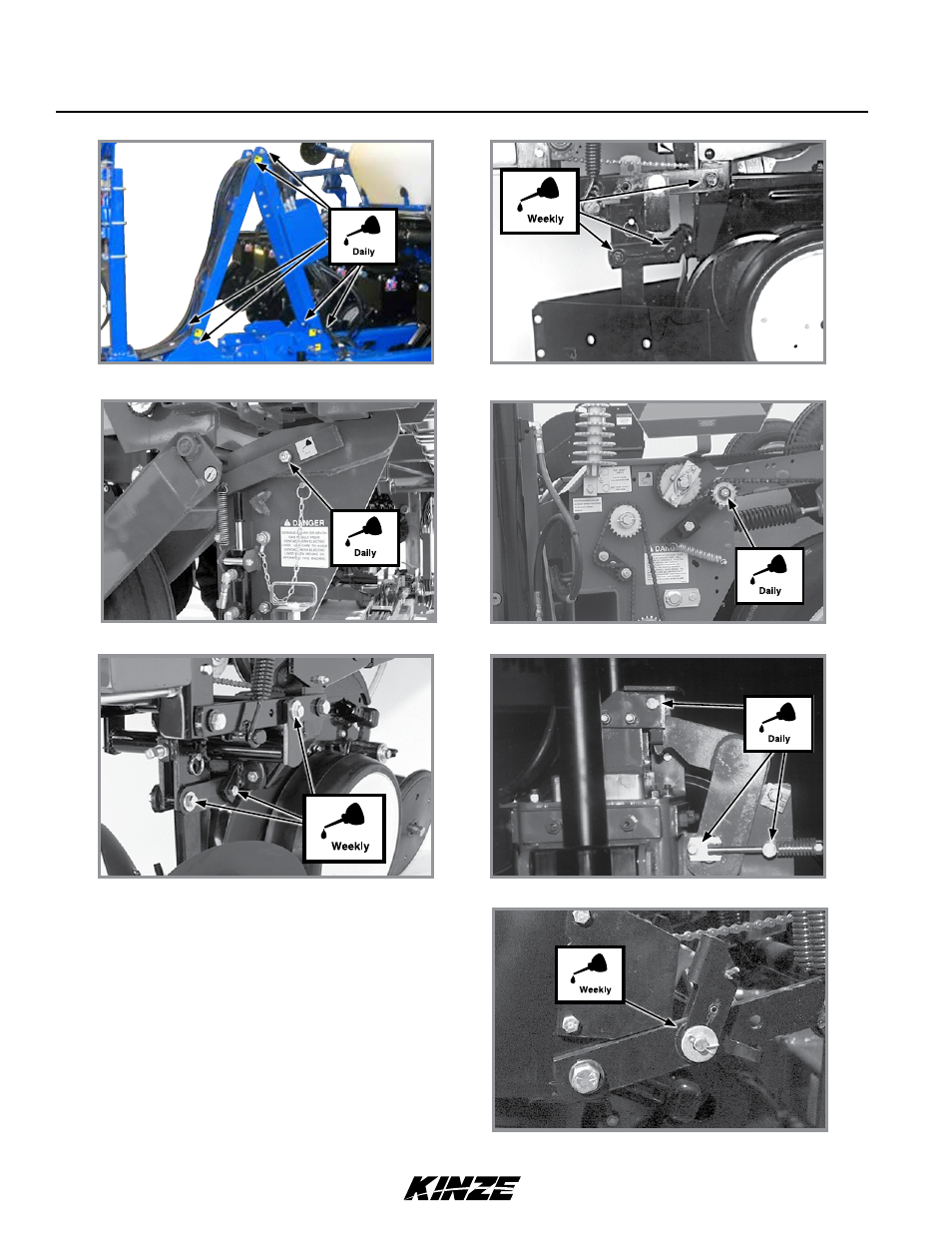

Lubrication and Maintenance
Hose take-up (6 locations)
Transport latch (1 location) Contact wheel arm (2 per wheel assembly)
Safety hook at top of center section
Interplant push row unit lockups - 2 per row
Row unit mounted disc furrower parallel
linkages (6 per row)
Bed leveler parallel linkages (6 per row)
