Model 3600 M0236-01
Rev. 7/11 6-5
Lubrication and Maintenance

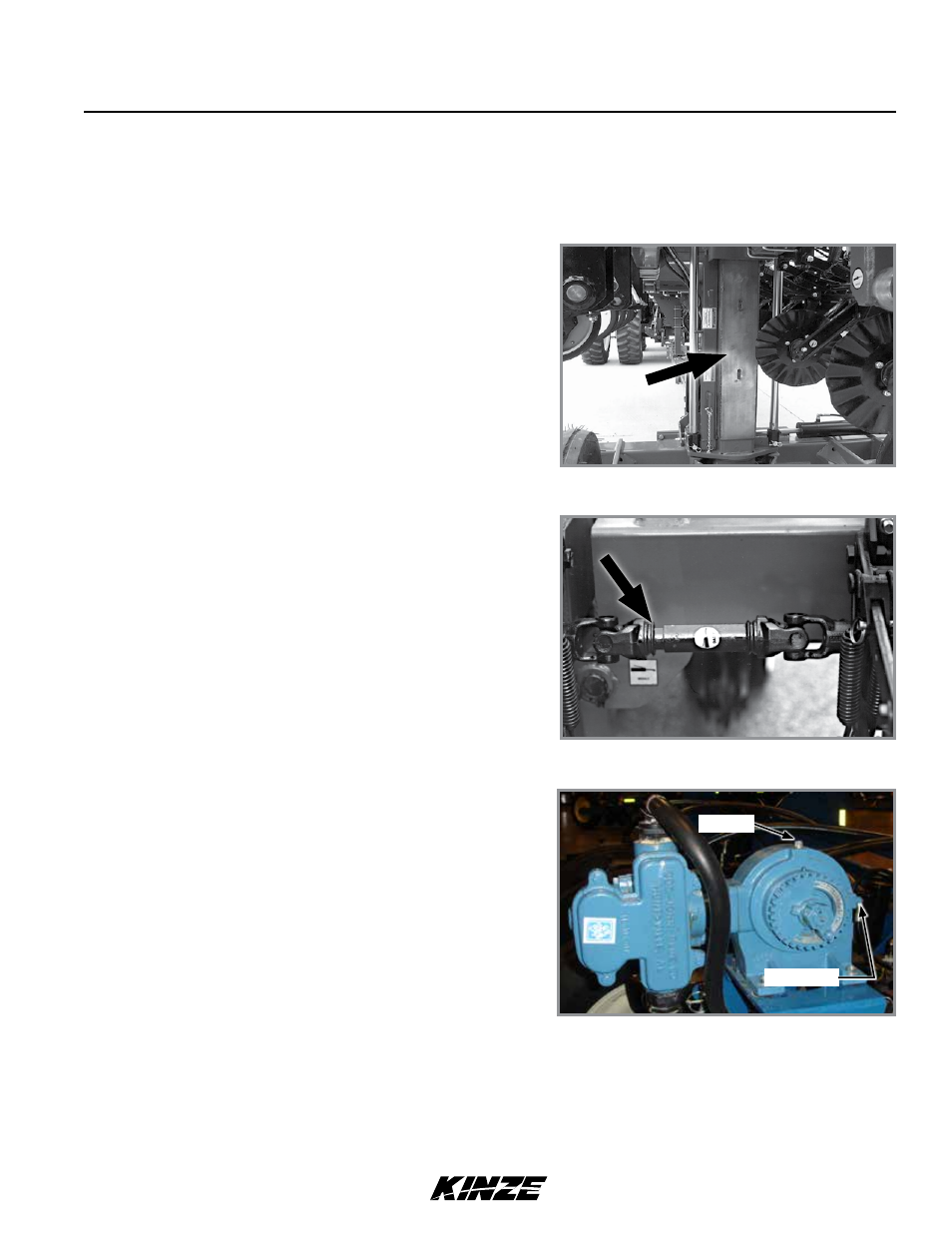

Lubricate all U-joint slides daily with a high quality lubricant.
Center post is clad with stainless steel. Keep stainless steel
surface clean and free of any lubrication to prolong service life.
See “Wear Pad Adjustment/Replacement” for more information.
CENTER POST
U-JOINT SLIDES
Center post
U-joint slide
NOTICE
Any oil or grease on center post and poly wear pads will attract dirt
and accelerate wear. Do not lubricate center post and poly wear pads.
Plug
LIqUID fERTILIzER PISTON PUMP CRANKCASE
OIL LEVEL
Check crankcase oil daily and maintain at oil level
check plug. Fill as needed with EP 90 weight gear oil.
Total oil capacity is approximately ¾ pint.
Refer to operator and instruction manual supplied with
pump and flow divider for more information.
Piston pump oil fill and check plug locations
Check plug
Fill plug
