KD Scientific Legato 200 Series Syringe Pump User’s Manual
Publication 5617-002-Rev F
OPERATING INSTRUCTIONS
POWER CONNECTIONS
1.
Plug the power cord in. The Legato 200 Series has a
universal power input connector on the rear of the
unit. The operating range for the Legato 200 Series
series is 100 – 240 VAC, 50-60 Hz.
2. Turn on the main power switch.
!
CAUTION: Do not connect to
firewire ports on a computer.
Damage may occur to the
pump or computer.

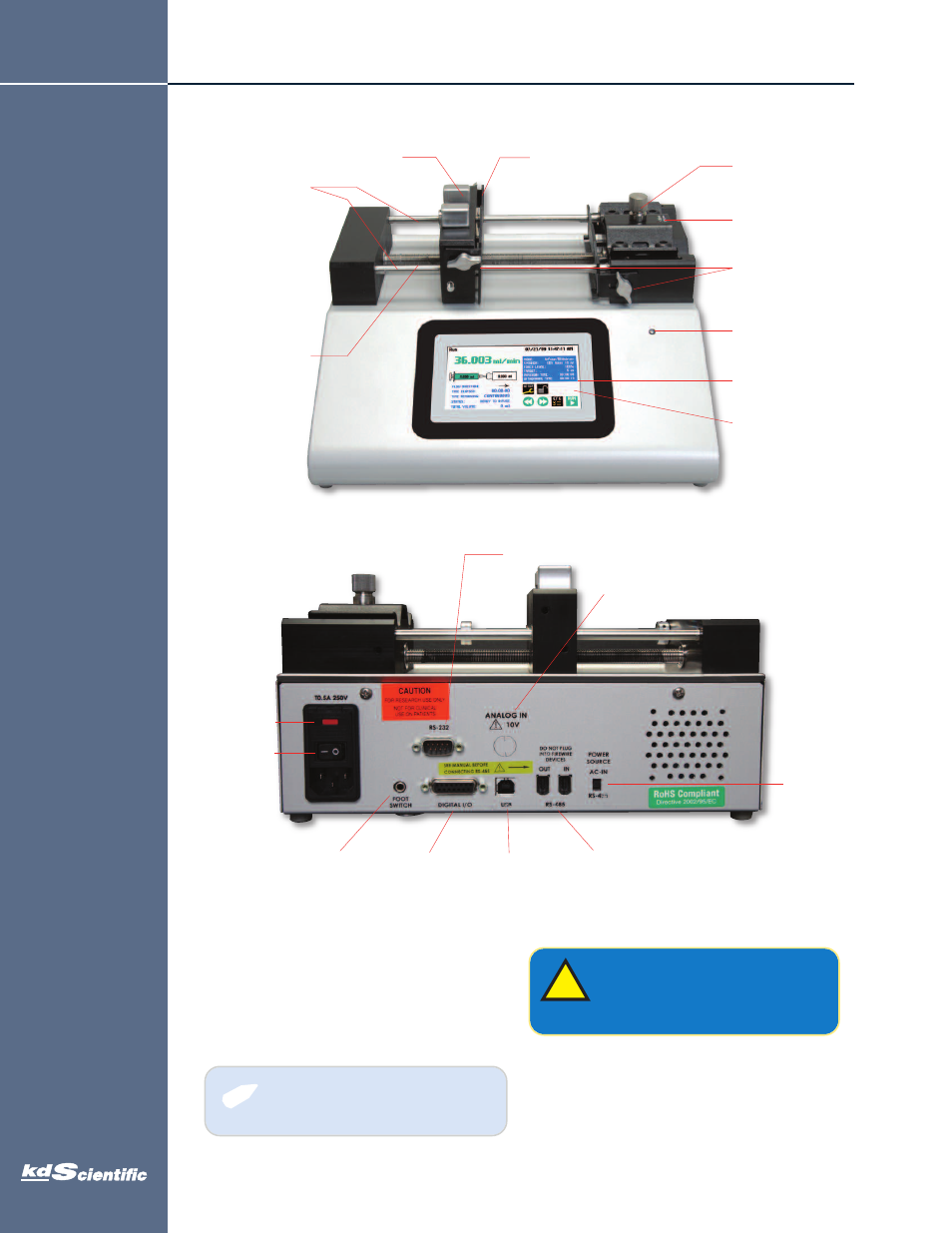

Half nut Release Knobs
Guide Rods
Pusher Block
Lead Screw
Syringe Barrel Clamp
Syringe Holder
Bracket Clamp Knobs
Run / Fault LED
User Interface
Touchscreen
Protective Antiglare
Foot Switch
I/O Connector
Fuse Holder
USB Serial Input
(Type B)
RS232 Serial Input
RS485 Connection
(Pump to Pump)
Analog In
(Option)
Main Power
Switch
✐
NOTE: Remove tab under battery cover
to activate battery back-up of date and
time in the pump.
phone
508.429.6809
fax
508.893.0160
web
www.kdscientific.com
*Power Source -
When powering a pump
in a chain through an RS-
485 cable, toggle switch
to RS-485.
