Power units 02.06 23
4 Electrical connection

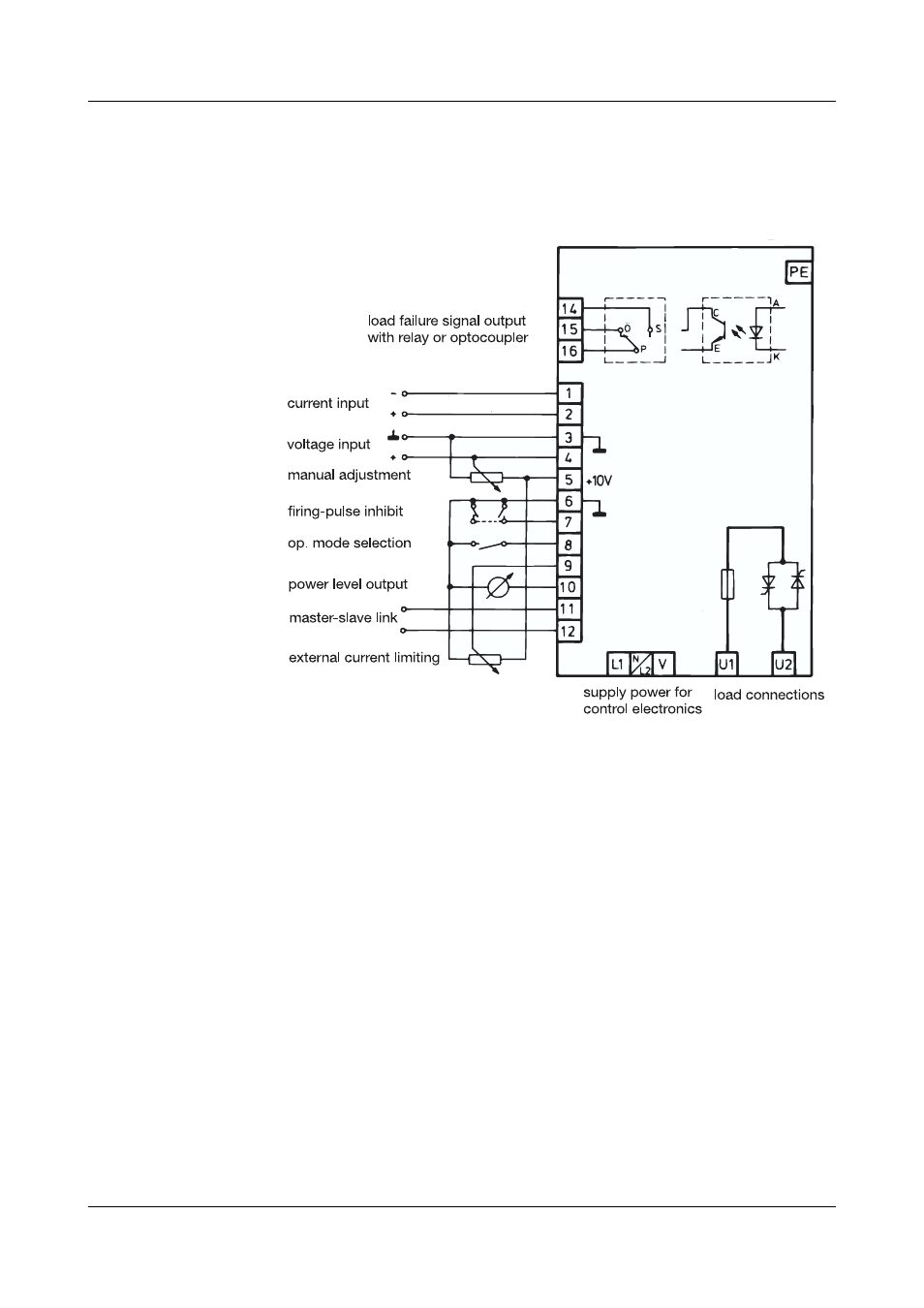

4.1 Connection diagram
The diagram shows the various connections that are available at the plug-in
screw terminals.
h Disconnect the equipment completely (on all poles) from the supply line
h Connect the control cables (conductor cross-section 0.2 — 2.5 mm
2
) to the
screw terminals. Use cable lugs to DIN 46 212 for the load connections.
Tools required 1 screwdriver, 3 mm blade (max.)
1 socket wrench, 10 mm (for TYA-110/3, 100)
1 socket wrench, 13 mm ( for TYA-110/3,150 and TYA-110/3, 250)
V Only properly qualified personnel are permitted to make electrical
connections!
