N+ Wireless Modem Router
sections table of contents 1 2 3 4 6 7 8 9 10 5
alTeRNaTe seTUP MeTHod

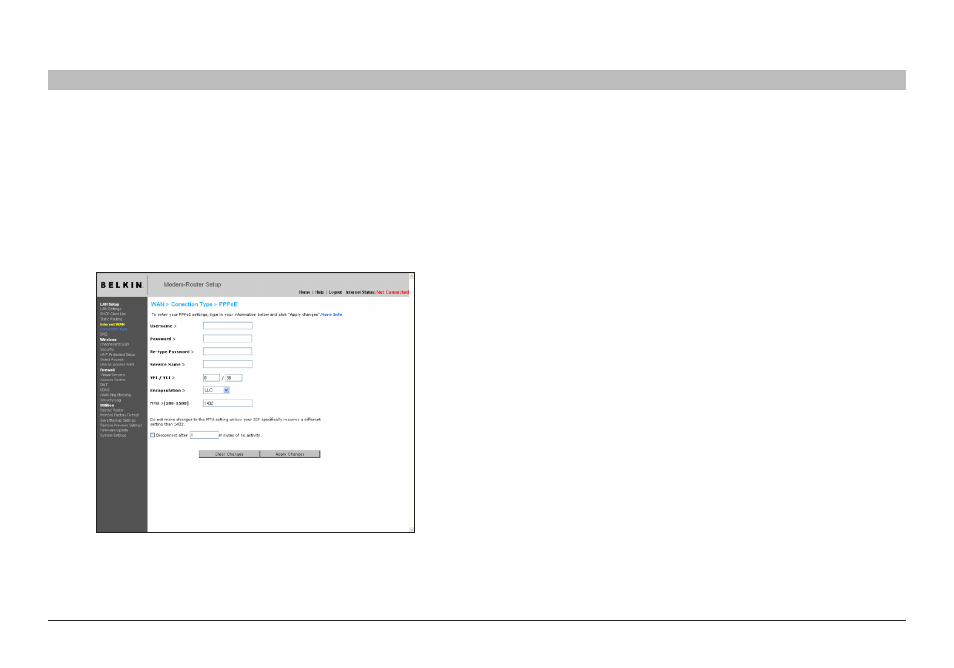

setting your IsP Connection Type to PPPoe or PPPoa
PPPoE (Point-to-Point Protocol over Ethernet) is the standard method
of connecting networked devices . It requires a user name and
password to access the network of your ISP for connecting to the
Internet . PPPoA (PPP over ATM) is similar to PPPoE, but is mostly
implemented in the UK . Select PPPoE or PPPoA and click “Next” .
Then enter the information provided by your ISP, and click “Apply
Changes” to activate your settings .
1 . User Name – Enter the user name . (Assigned by your ISP) .
2 . Password – Enter your password . (Assigned by your ISP) .
3 . Retype Password – Confirm the password . (Assigned by your ISP) .
4 . VPI/VCI – Enter your Virtual Path Identifier (VPI) and Virtual Circuit
Identifier (VCI) parameter here . (Assigned by your ISP) .
5 . encapsulation – Select your encapsulation type (supplied by your ISP) to
specify how to handle multiple protocols at the ATM transport layer .
VC-MUX: PPPoA Virtual Circuit Multiplexer (null encapsulation) allows
only one protocol running per virtual circuit with fewer overheads .
llC: PPPoA Logical Link Control allows multiple protocols running over
one virtual circuit (more overhead) .
6 . MTU – Enter the MUT value for your ISP .
7 . disconnect after of x minutes of no activity – Checking the box and
enter the number of minute that you want the modem router to auto
disconnect after no activity . After this time has been exceeded, the
connection will be terminated .
Click “Apply Changes” to save and activate your settings . To go back to
the original settings before saving, click “Clear Changes” . Or click any of
the Quick-Navigation links for other options . Your new settings will not
be saved unless your click “Apply Changes” .
