N+ Wireless Modem Router
sections table of contents 1 2 4 5 6 7 8 9 10 3
KNoWINg yoUR RoUTeR
Knowing your Router

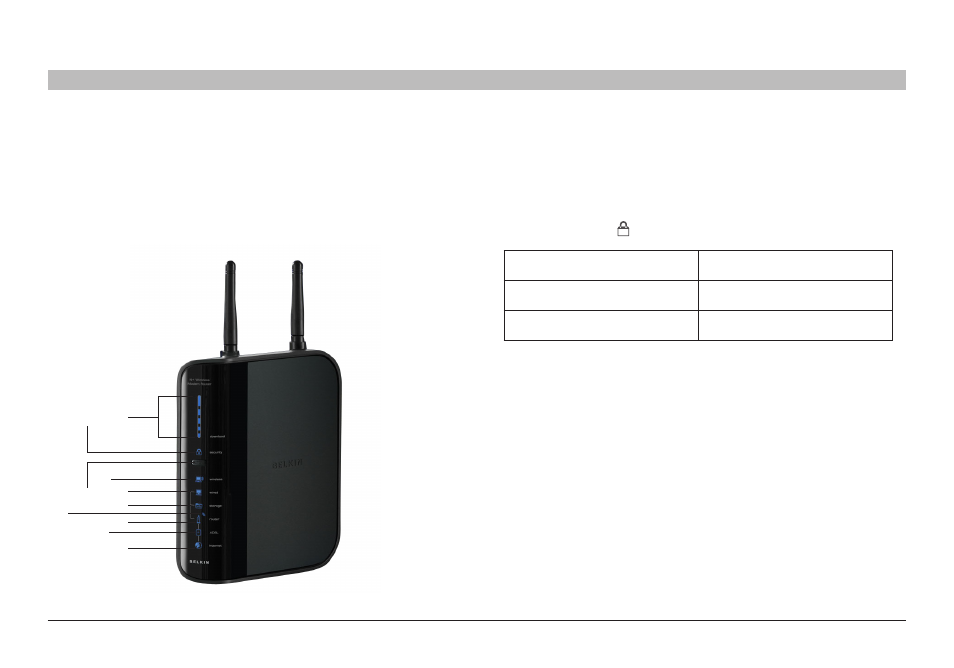

The Router has been designed to be placed on a desktop . All of the
cables exit from the rear of the Router for better organization and utility .
The Network Status Display is easily visible on the FRONT of the Router
to provide you with information about network activity and status . See
the Network Status Display Guide for more detailed information .
Off Wireless security is off
Blinking Blue WPS handshaking in process
Solid Blue Wireless security is on
1 . broadband download speedometer
These lights will display a graphic representation of the current
download speed being transferred through the Internet connection . The
speed will be measured on the speedometer against the fastest speed
that has been measured by the N+ since being activated .
2 . Wireless security
