CoNNeCTINg aNd CoNfIgURINg yoUR RoUTeR

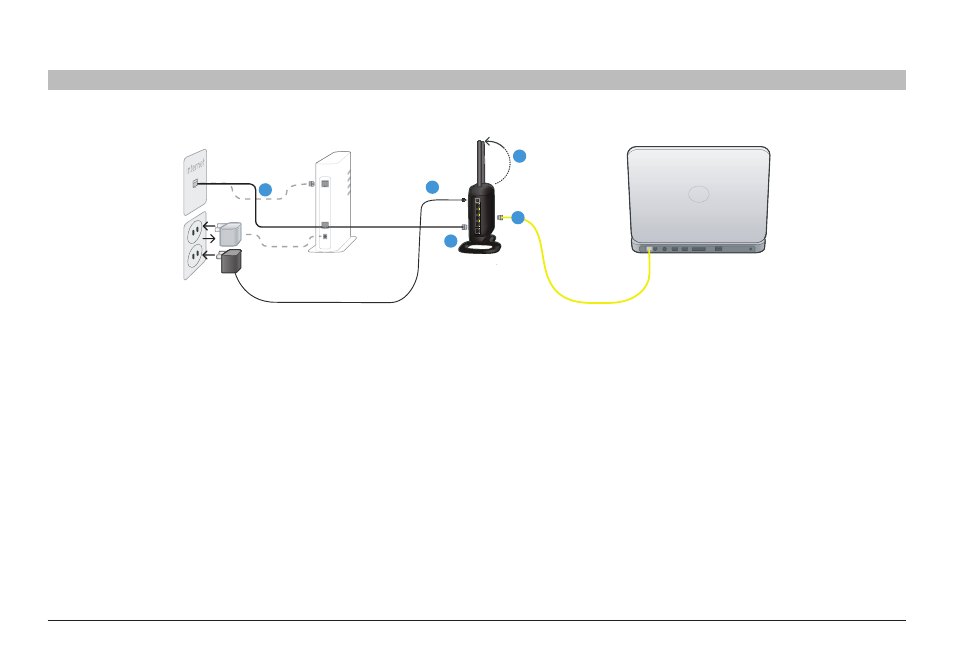

1 .2 Replacing an existing Modem or Modem Router
Follow these steps if you currently have a modem or a modem router
that you will be replacing with your new Router .
1 . Unpack your new Router from the box and place it next to
your old modem . Raise the Router’s antennas . Unplug your old
modem’s power cord .
2 . Locate the cable that connects your old modem to your
computer . Unplug that cable from your old modem, and plug it
into any yellow port labeled “to Wired Computers” on the back of
your new Router .
3 . Locate the cable that connects your old modem to the ADSL wall
jack . Unplug it from your old modem and then connect it to the
gray port labeled “to ADSL” on the back of your Router .
4 . Plug your Router’s power supply into the black port labeled
“Power” on the back of your Router .
5 . Wait 20 seconds for the Router to start up . Look at the display
on the front of the Router . Make sure the “Wired” and “Router”
icons are lit in blue . If they are not, recheck your connections .
2
1
3
4 3
LAN
ADSL
