tina88e1-b (2014-09) 37
4.5.1 Adjusting the Setpoints
The setpoints can be adjusted via
• the buttons on the gauge,
• the diagnostic port (→  [3]),
• the RS232 interface (→  [2], [3]),
• the Ethernet interface (→  [1], [4]),
• the wireless network (→  [1], [4]).
DANGER
DANGER: malfunction
If processes are controlled via the signal output,
keep in mind that by pushing the
button the measurement signal is suppressed and
the corresponding threshold value is output in-
stead. This can cause malfunctions.
Push the button only if you are sure
that no malfunction will cause.

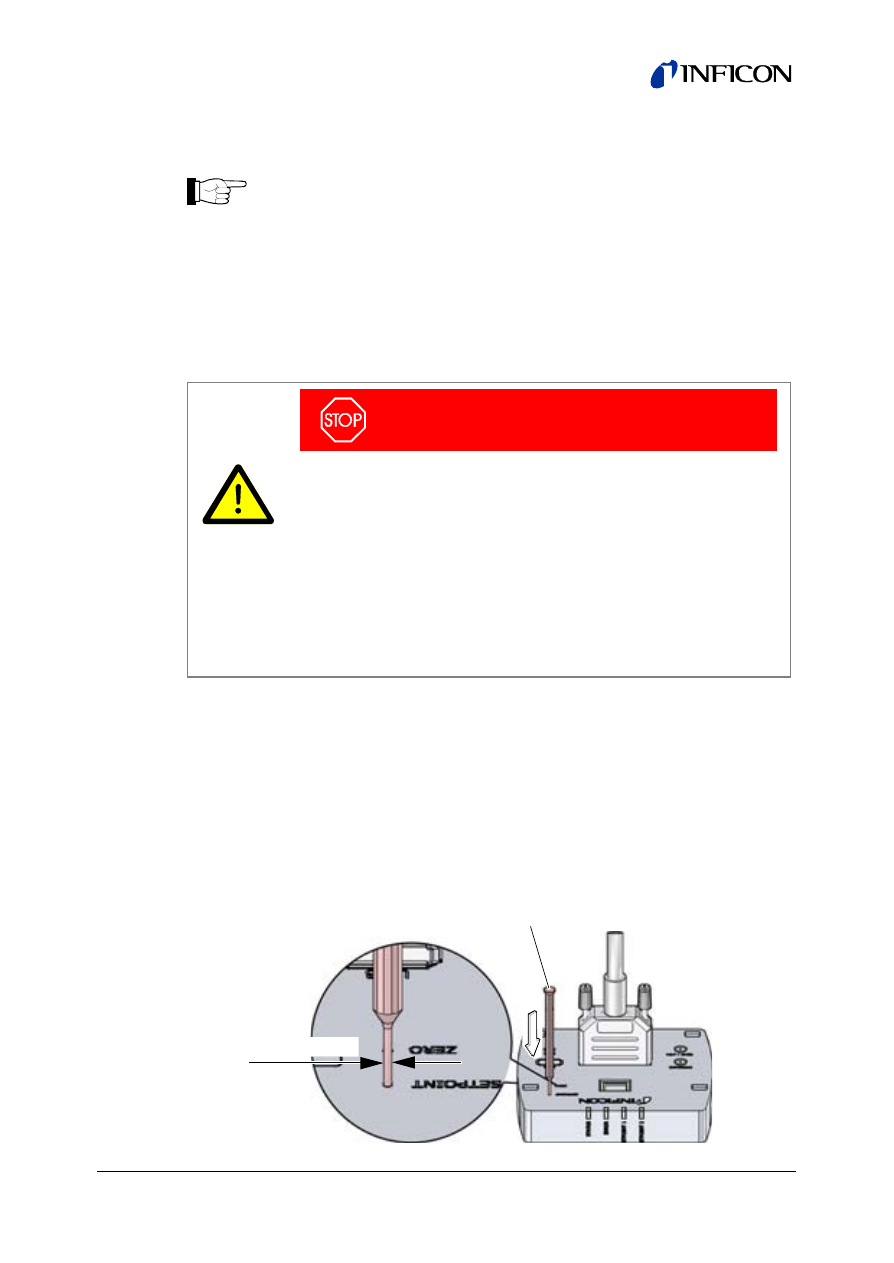

Adjusting

Push the button with a pin (max. ø1.1 mm).
The gauge changes to the switching function mode and
outputs the current threshold value at the measurement
value output for about 10 s (LED blinks).
Press the button briefly
max. ø1.1 mm
