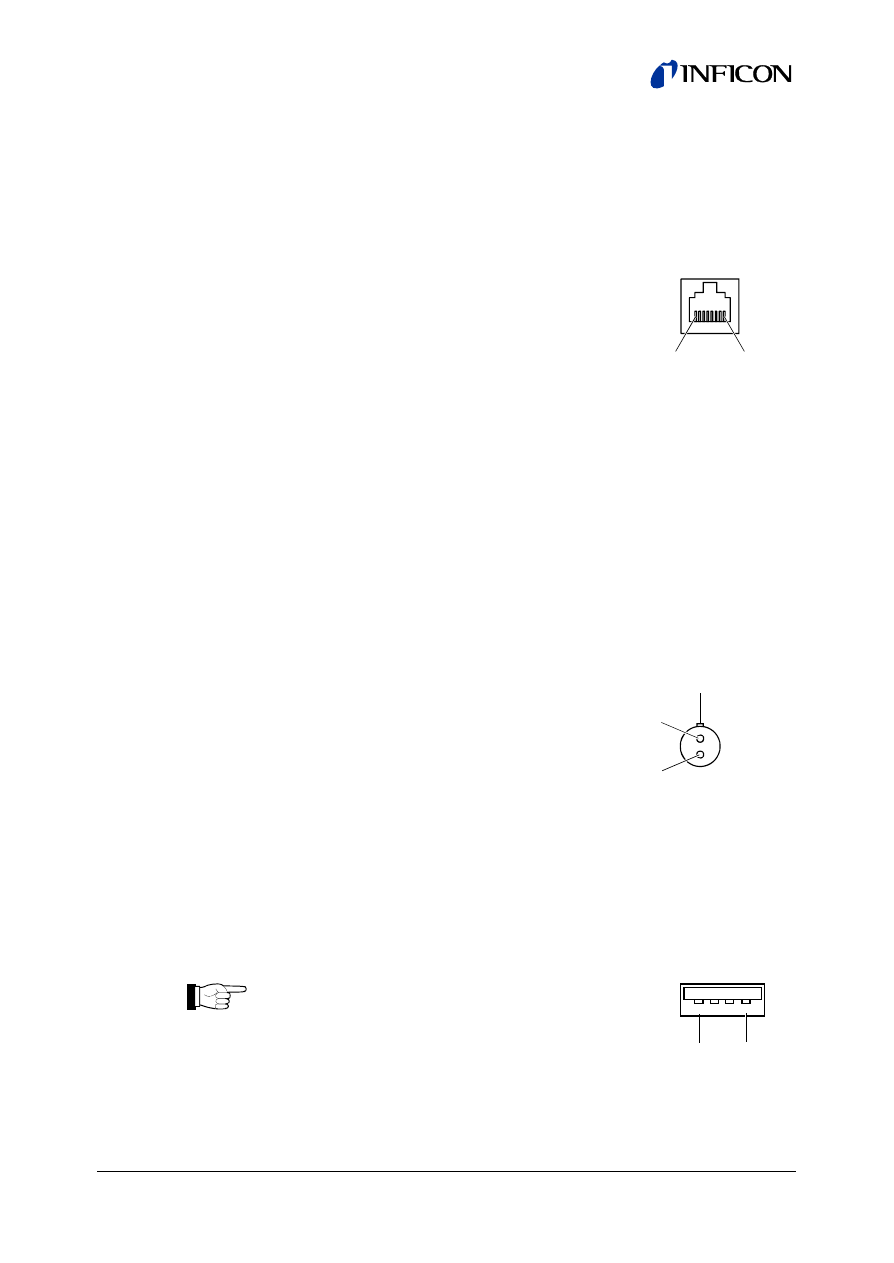

background image

26

tina88e1-b (2014-09)

3.2.2 RJ45,

8-pin

Connector

If no Ethernet cable is available, make one according to the
following diagram (cable length and conductor cross-sections
→  12).

Pin 1 TD+ (Transmitted data +)
Pin 2 TD-

(Transmitted data -)

Pin 3 CT_T ()
Pin 4 RD+ (Received data +)
Pin 5 RD-

(Received data -)

Pin 6 CT_R ()
Pin 7 NC
Pin 8 NC

8

1

RJ45, 8-pin

plug

soldering side


3.2.3

LEMO, 2-pin Connector

If no sensor cable is available, make one according to the
following diagram (cable length and conductor cross-sections
→  13).

Pin 1 Signal
Pin 2 Signal common

1

2

Red mark

LEMO, 2-pin

plug

soldering side


3.2.4 USB,

Typ

A

Connector

For WLAN USB adapter only (enclosed

in the scope of delivery).

1

4

2

3

1

4
