tina88e1-b (2014-09) 33

Evacuate the gauge to a pressure according to the table
below:
F.S.
Recommended final pressure for
zero adjustment
1000 Torr/mbar
100 Torr/mbar
10 Torr/mbar
1
Torr/mbar
0.1 Torr/mbar
<5×10 -2 Torr
<5×10
-3
Torr
<5×10 -4 Torr
<5×10
-5
Torr
<5×10 -6 Torr
<6.65×10 0 Pa
<6.65×10
-1
Pa
<6.65×10 -2 Pa
<6.65×10
-3
Pa
<6.65×10 -4 Pa
<6.65×10 -2 mbar
<6.65×10
-3
mbar
<6.65×10 -4 mbar
<6.65×10
-5
mbar
<6.65×10 -6 mbar
If the final pressure is too high for zero adjustment (>25%
of the F.S.), the zero cannot be reached and the
LED blinks green. If this is the case, activate
the factory setting and adjust the zero again (
→  39).

Operate the gauge for at least 90 minutes under constant
ambient conditions (until the signal is stable).


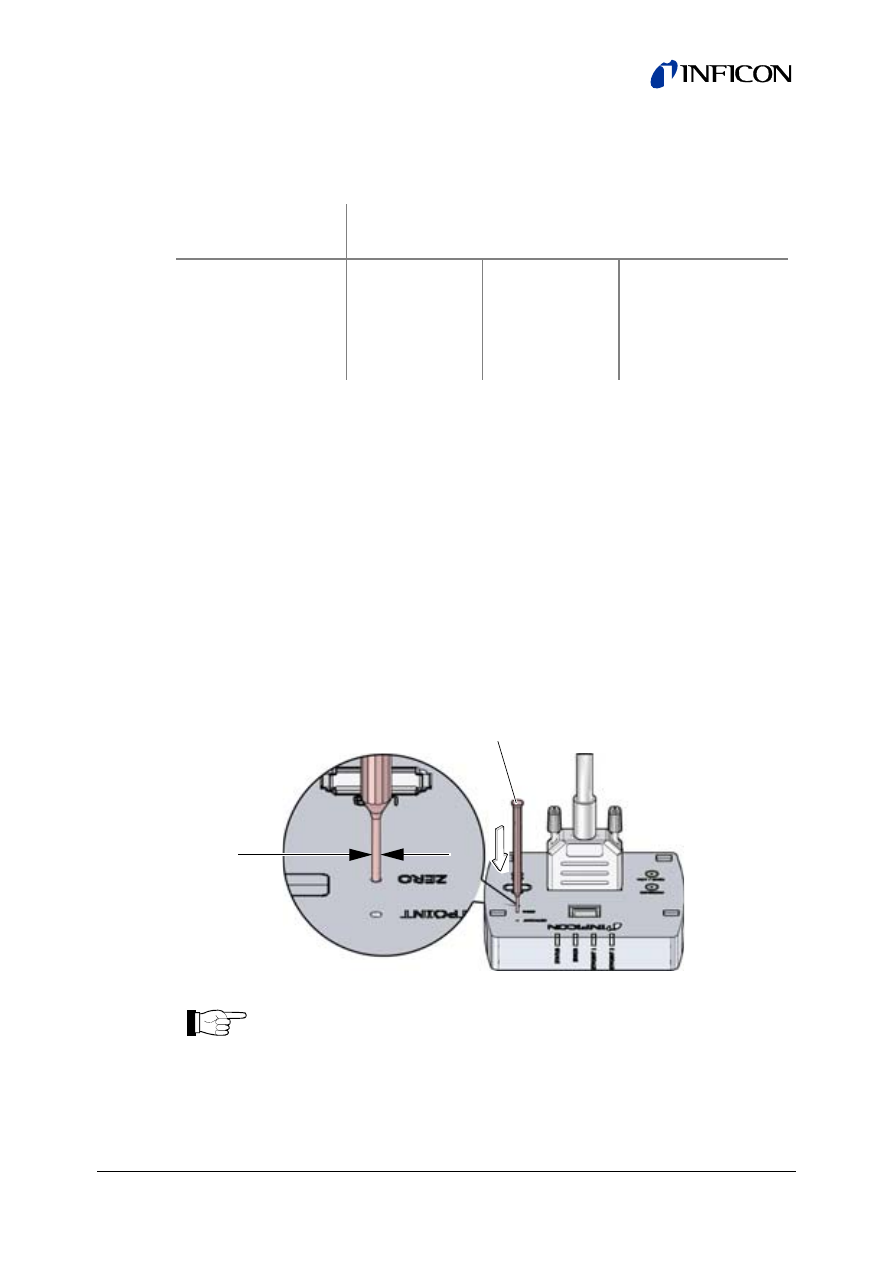

Briefly press the button with a pin. The zero
adjustment runs automatically. The LED blinks
red until the adjustment (duration ≤8 s) is completed.
Press the button briefly
max. ø1.1 mm
After zero adjustment, the gauge automatically returns
to the measurement mode.
