Q-pod Operating Manual
Before using the LabVIEW demo, it may be best to familiarize oneself with
operation of the Q-pod software. To run the LabVIEW demo(qpod.vi), click "Load
DLL", "Use Card" and then set the Sensor parameters as desired. Click "Start" to
display readings. Be sure to click "Unload DLL" before stopping the LabVIEW
program. Otherwise, a Windows error may occur, and LabVIEW may shut down.
LabVIEW 6 or higher is required.
NOTE: The sample LabView VI may require that you select the proper DLL for the
two Automation RefNum controls. Right click each control, then click
Select ActiveX Class. Check Show Creatable Objects Only, then select
Sigma Instruments Qpod ActiveX DLL.

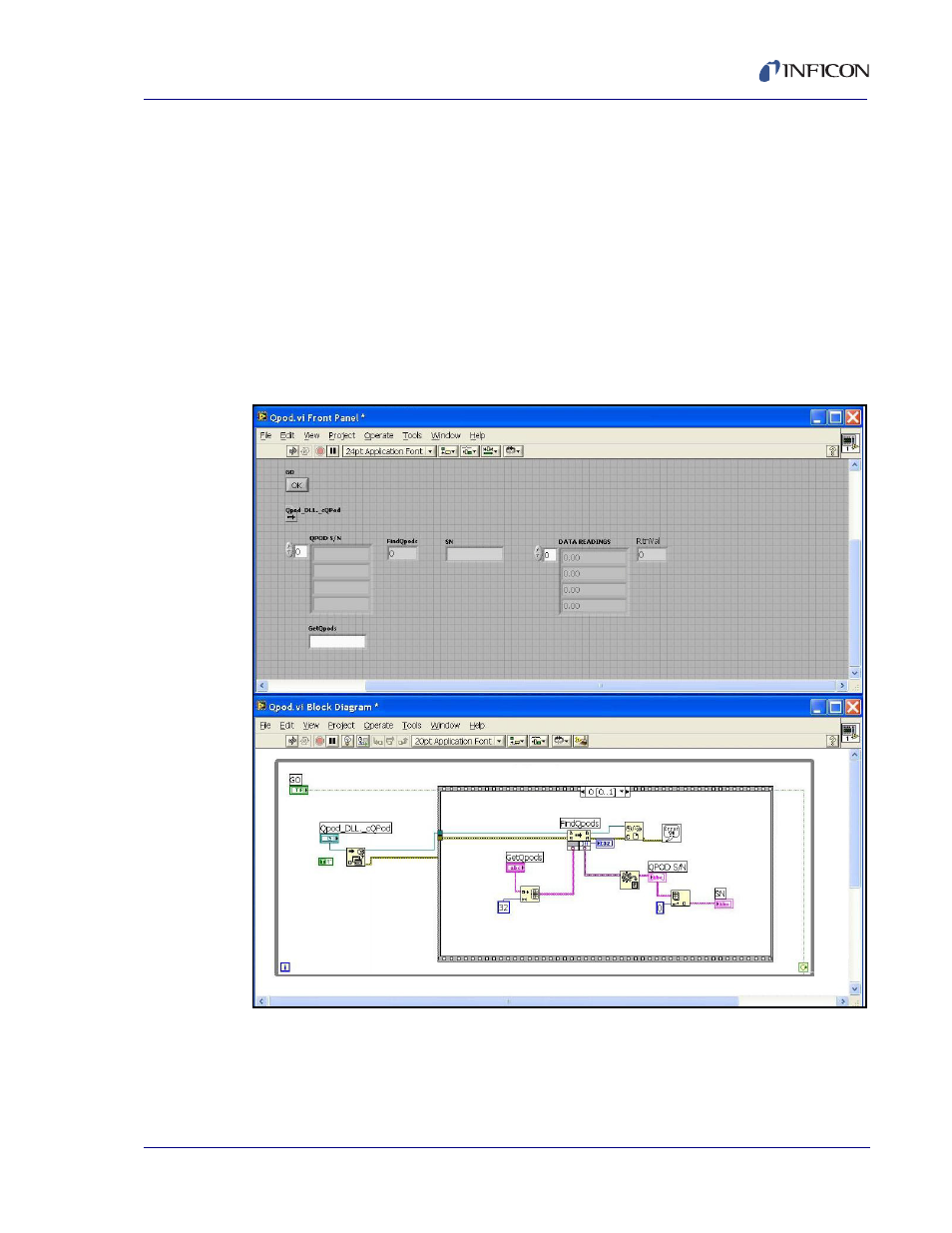

Figure 3-1 Labview Sample Program
