Q-pod Operating Manual
2.3.3 Graph Display

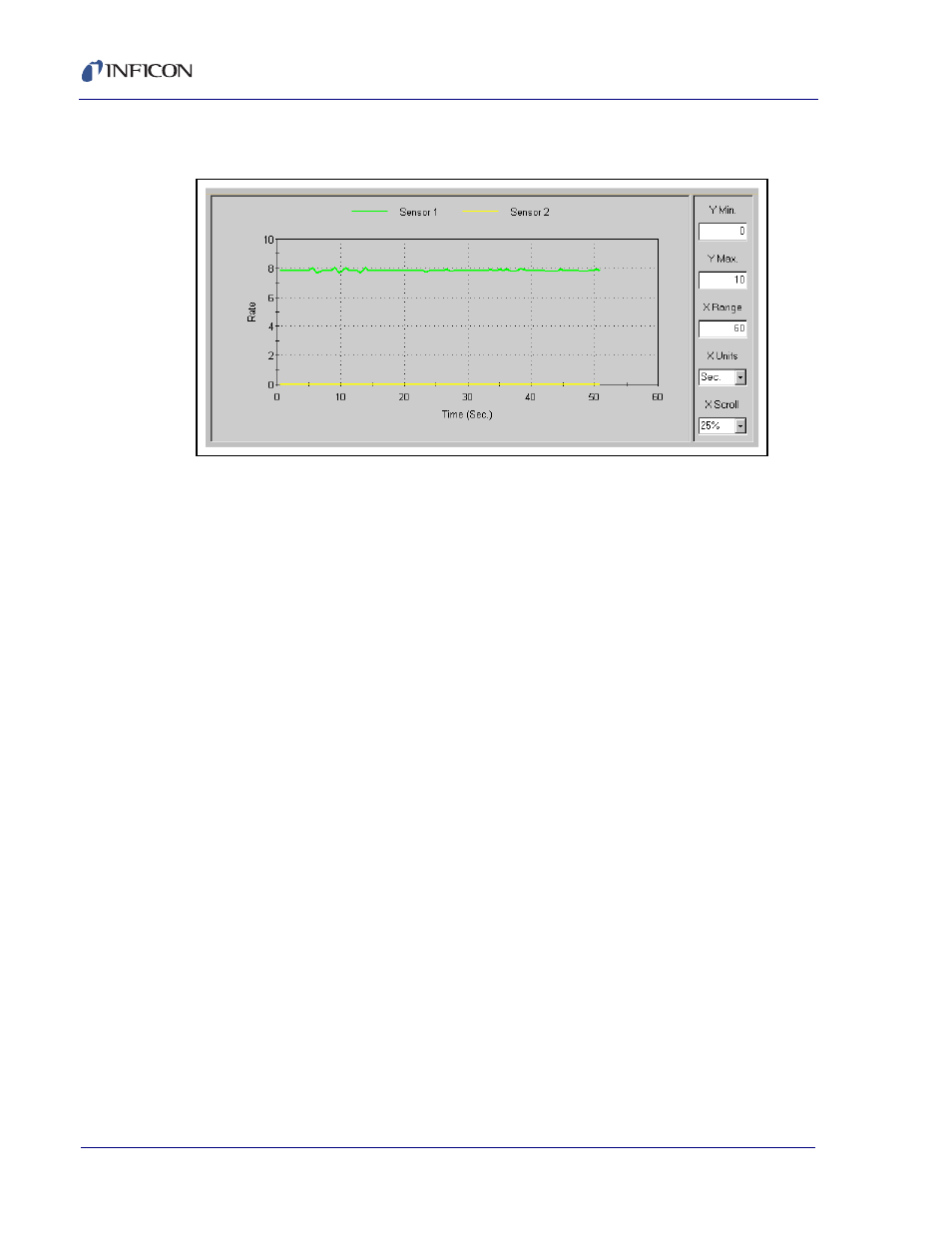

Figure 2-3 Graph Display
Graphs the deposition rate, thickness, or frequency of active measurement
channels when Start is clicked. The graph viewed can be changed from the view
option on the toolbar on the main screen. Settings to the right of the graph control
basic graph functions. See the Help menu for advanced graph setup.
