9-5
Installation Mode
5975938 BARCOREALITY 9200TCR+ 020798
Select with or
then
to return.
Configuration

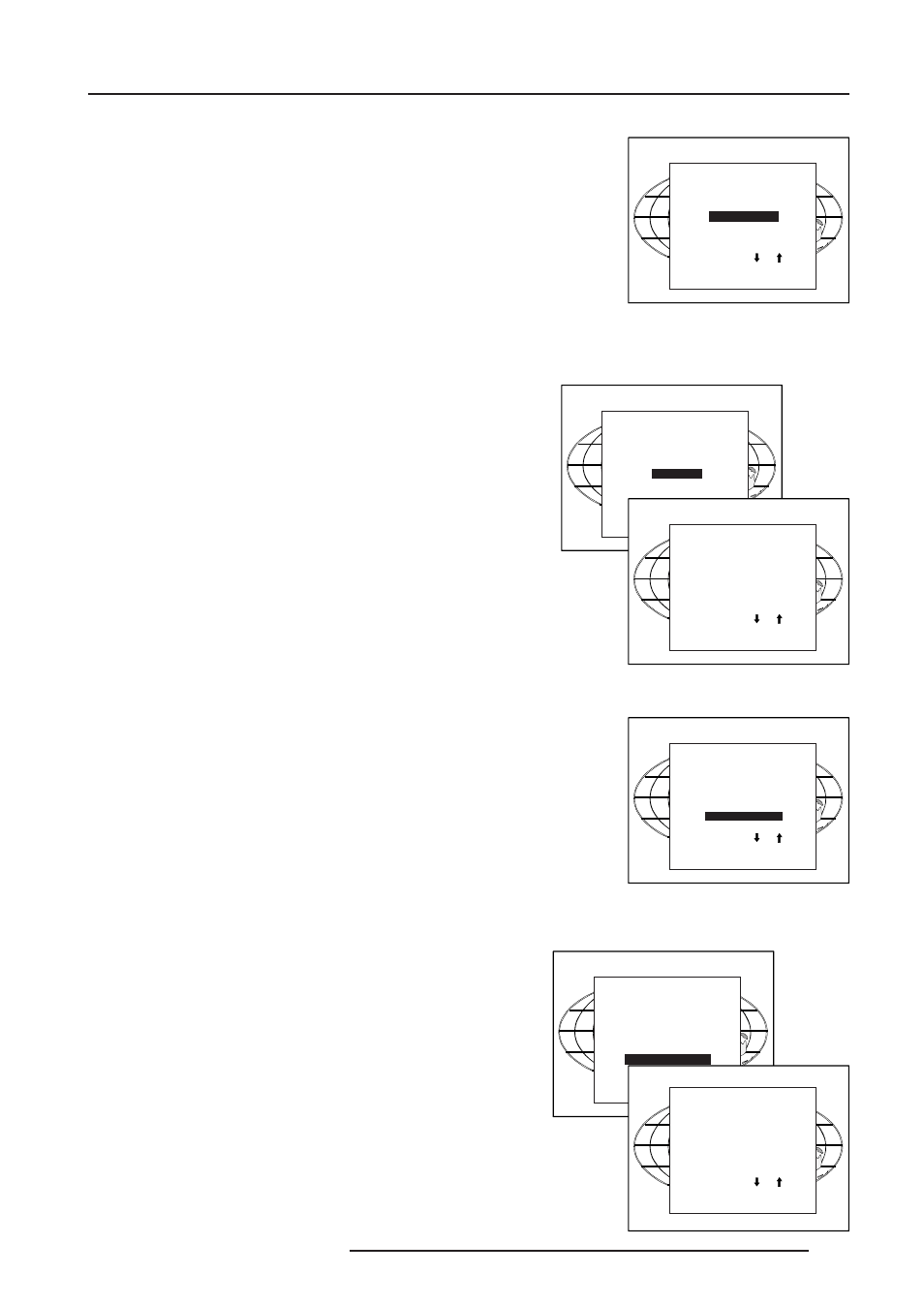

Highlight "Configuration" by pushing the control disc up or down and
press ENTER to select.
For more information, see Projector configuration in chapter 4 :
'Installation Set Up'.
OSD color (On-Screen Display)
The highlighted items on the menus can be displayed in red, green or
yellow.
To change this color setting, highlight "OSD Color" by pushing the
control disc up or down and press ENTER to display the OSD Color
menu.
INSTALLATION
INPUT SLOTS
800 PERIPHERALS
CONVERGENCE
CONFIGURATION
OSD COLOR
NO SIGNAL [BLACK]
INTERNAL PATTERNS
Select with or
then
to return .
INSTALLATION
INPUT SLOTS
800 PERIPHERALS
CONVERGENCE
CONFIGURATION
OSD COLOR
NO SIGNAL [BLACK]
INTERNAL PATTERNS
OSD COLOR
HIGHLIGHTED ITEM
RED
GREEN
YELLOW
Select with or
then
to return .
INTERNAL PATTERNS
OUTLINE
COLOR BARS
MULTIBURST
CHECKER BOARD
PURITY
PAGE CHAR
ALPHA-NUMERIC CHARS
Select with or
then
to return .
INSTALLATION
INPUT SLOTS
800 PERIPHERALS
CONVERGENCE
CONFIGURATION
OSD COLOR
NO SIGNAL [BLACK]
INTERNAL PATTERNS
No Signal [BLACK]/[BLUE]
To change the fullscreen color when no signal is active.
[BLACK] : a black screen will be projected.
[BLUE] : a blue screen will be projected.
Highlight "No Signal" by pushing the control disc up or down and press
ENTER to toggle between
[BLACK] or [BLUE].
Select with or
then
to return .
INSTALLATION
INPUT SLOTS
800 PERIPHERALS
CONVERGENCE
CONFIGURATION
OSD COLOR
NO SIGNAL [BLACK]
INTERNAL PATTERNS
Internal Patterns
The projector is equipped with different internal patterns which can be
used for measurment purposes.
Highlight "Internal Patterns" by pushing the control disc up or down
and press ENTER to display the Internal Pattern selection menu.
The following test patterns are available :
- Outline
- Color Bars
- Multiburst
- Checker Board
- Purity
- Page Char (one page with the same character)
- Alpha-numeric characters
Each pattern (except Purity) can be inverted by pressing ENTER.
For Page Char, the next or previous character can be selected by
pushing the control disc up or down.
To return to the normal pattern, press EXIT.
