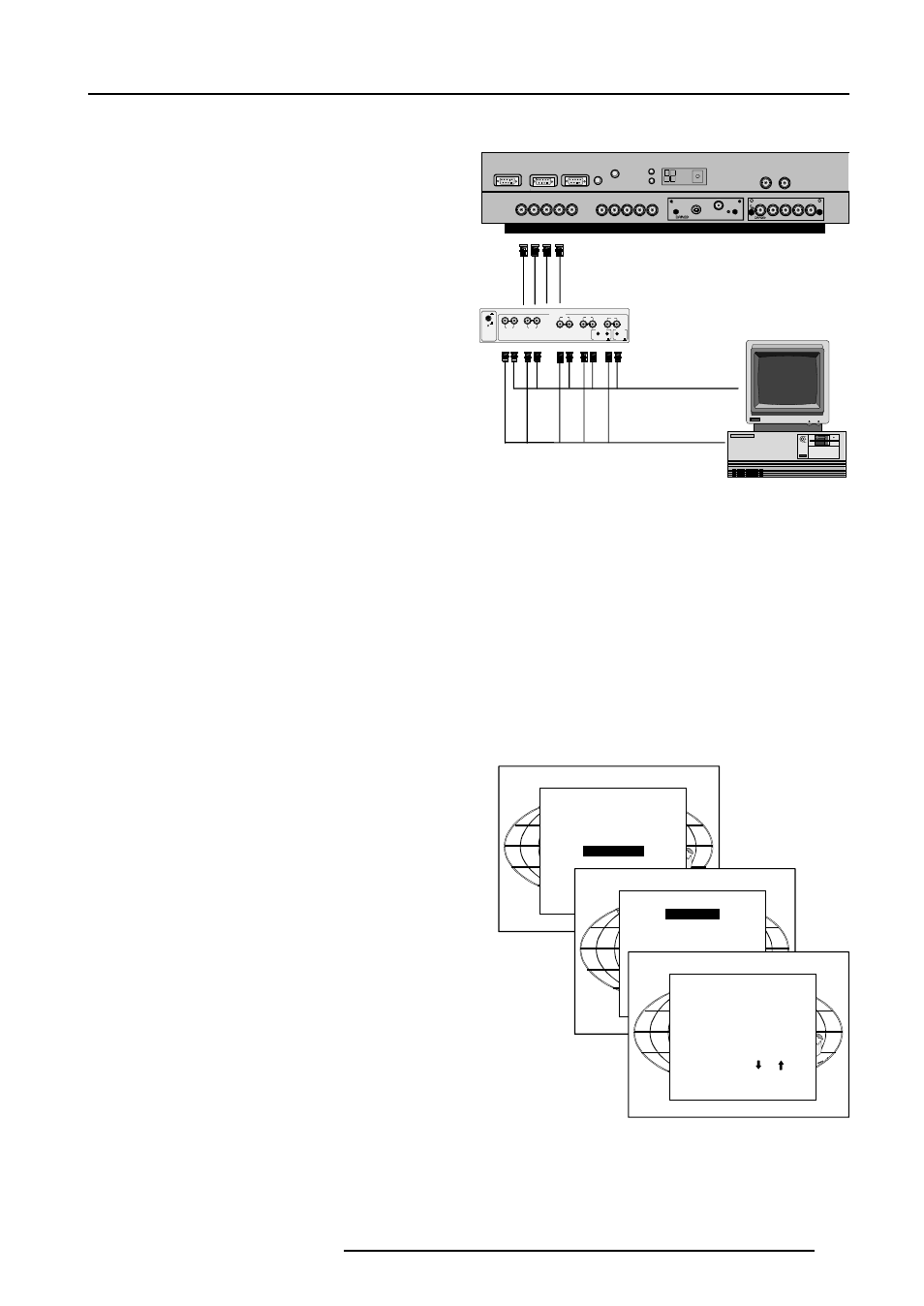

Fixed RGB analog input (slot 1)
Slot 1 has RGB analog input terminals (BNC) with separate Horizontal
and Vertical sync (RGBHV) or with composite sync input (RGBS).
Always use an interface when a computer and local monitor have
to be connected to the projector. BARCO makes a range of
intertfaces :
Universal analog interface.
Order number : R9826100.
RGB 120 MHz analog interface.
Order number : R9826570.
VGA interface
Order number 120V : R9828079.
Order number 230V : R9828070
MAC interface
Order number 120V : R9828059
Order number 230V : R9828050
MAGIK interface
Order number 120V : R9828129
Order number 230V : R9828120
RGB analog input : 5 x BNC
Red : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB
Vert. sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. sync / Composite sync :
1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even in the "not
selected" mode.
Slot 1 selection :
Key in 1 on the RCU or the local keypad.
Sync selection on the 'Input slots' menu.
The horizontal sync input can be set as separate sync, as separate
sync + video or as separate sync tri-level sync. To change this
setting, press ADJUST or ENTER key to start up the Adjustment mode.
Push the control disc up or down to select Installation and press
ENTER.
ADJUSTMENT MODE
Select a path from below :
RANDOM ACCESS
INSTALLATION
SERVICE
INSTALLATION
INPUT SLOTS
800 PERIPHIRAL
CONVERGENCE
CONFIGURATION
INPUT SLOTS
Slot Module type [Config]
1. RGB-SS [CV]
2. RGB-SOG
3. Video [Video]
4. Component Video
Use the control disc to select 'Input Slots' by pushing up or down and
press ENTER. The internal system will scan the inputs and displays
the result in the 'Input Slots' menu.
Push the control disc up or down to select the first slot. To change
the sync priority for Sync separate, press ENTER key to toggle
between CS or HS&VS and 3LSS or CV.
Possible indication :
RGB-SS [CS or HS&VS] = separate sync is composite
sync or horizontal and vertical sync.
RGB-SS [3LSS or CV] = separate sync is composite
tri-level sync or composite video.
Select with or
