5-5
Connections
5975938 BARCOREALITY 9200TCR+ 020798
S-VIDEO
98
27
9
0
0 VIDEO
L R
AUDIO
WD9@PTWD9@PÃDIQVU
On On
T V tu n er, e .g .
T V D M 40 ste re o
V C R
A ud io a m p lifie r
C om po site
V ide o
VCR S-VHS
Luma/Chroma
R G B V R G B H / C V
On
98 27910
R G B H / C V H
9,'(2,1387
9,'(2 69,'(2
RS 232 IN REMOTE
PROJECTOR MODE :
GREEN - OPERATION
RED - STANDBY COMMUNICATION PORT
(800-PERIPHERALS) RS232 OUT IR-ACKNOWLEDGED
IR-RECEIVED
DIAGNOSTICS
CODE IR-RECEIVER
SDI IN SDI OUT
Select with or
then
to return.
Select with or
then
to return.
A y‚ h ‡v t Г‚ Г ‚  Гsy‚ h ‡v t Ãv ƒ ˆ ‡
Floating
Non-Floating
- - -

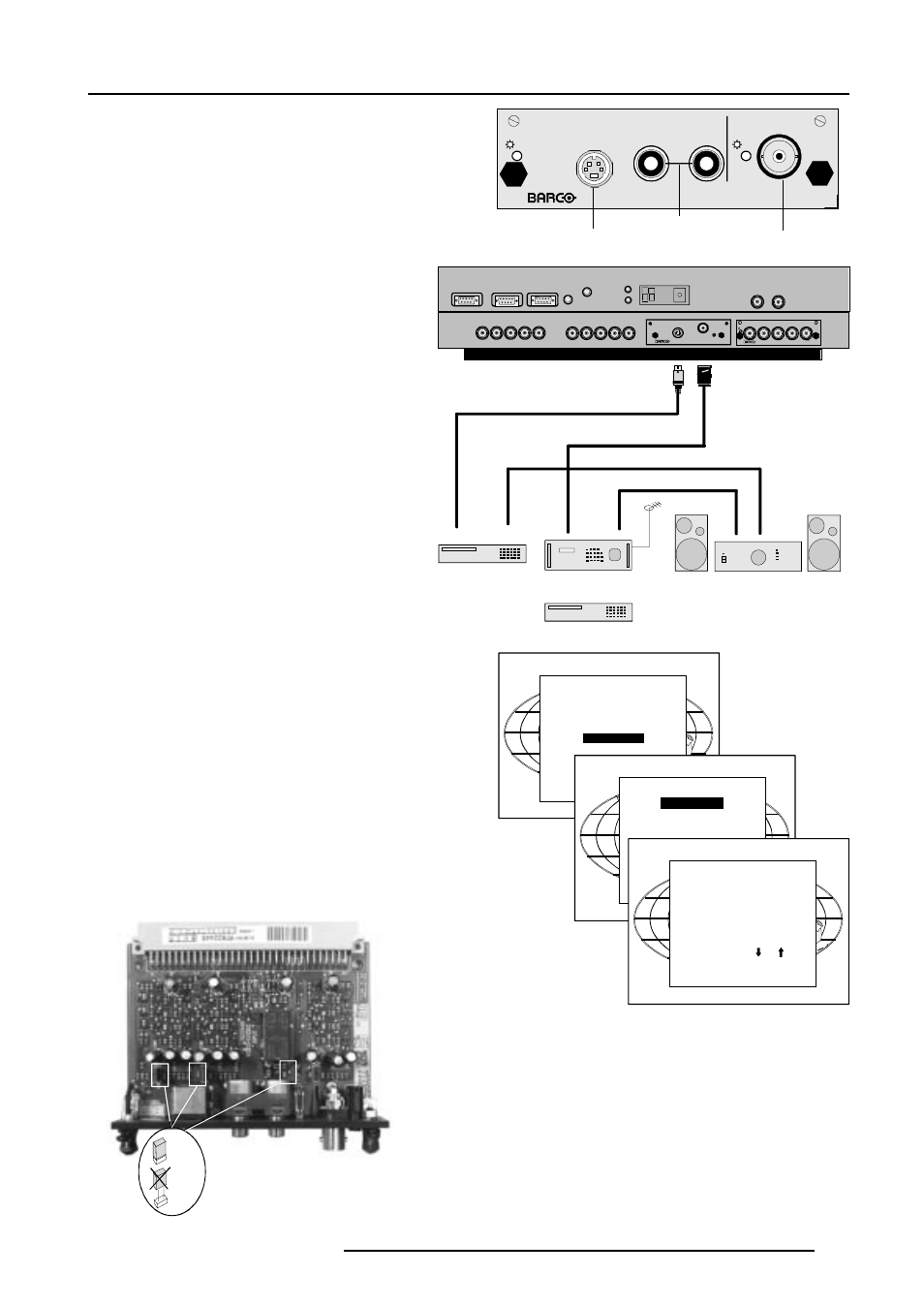

Video/S-video Input Module
To the Video input :
Composite video signals from a VCR, OFF air signal decoder, etc...
1 x BNC 1.0Vpp ± 3 dB
To the S-Video input :
Separate Y-luma/C-chroma signals for higher quality playback of
Super VHS-signals.
1 x 4 pins plug (mini DIN)
pin configuration :
1 ground luminance
2 ground chrominance
3 luminance 1.0 Vpp ± 3 dB
4 chrominance 282 mVpp ± 3 dB
Input selection :
Key in the corresponding slot number on the RCU or the local
keypad. Depending on the priority setting in the Input slots
menu, Video or S-Video will be displayed. If the wrong source
type is displayed, start up the adjustment mode by pressing
ADJUST or ENTER.
Push the control disc up or down to highlight Installation and press
ENTER to display the 'Installation menu'.
EXIT returns to operational mode.
Use the control disc to select 'Input Slots' by pushing it up or down
and press ENTER. The internal system will scan the inputs and
displays the result in the 'Input Slots menu'.
Push the control disc up or down to select the corresponding (video
or S-video) input slot number.
To change the priority between Video and S-Video, press ENTER key
to toggle.
Straps on module level.
Floating or non-floating input.
Video input :
J11 : strap "yes" : non floating strap "no" : floating
S-Video input :
J12 : strap "yes" : non floating strap "no" : floating
J13 : strap "yes" : non floating strap "no" : floating
Factory preset : strap on, input non floating.
Video input
Audio input not
available S-Video input
INPUT SLOTS
INSTALLATION
INPUT SLOTS
800 PERIPHERAL
CONVERGENCE
CONFIGURATION
ADJUSTMENT MODE
Select a path from below :
RANDOM ACCESS
INSTALLATION
SERVICE
Select with or
to toggle
to return.
Slot Module type [Config]
1. RGB-SS [CV]
2. RGB-SOG
3. Video [Video]
4. Component Video
