5-8
Connections
5975938 BARCOREALITY 9200TCR+ 020798
R G B H / C V
On
SB7Ã"G@W@GÃT`I8ÃDIQVU
9
8
2
7920
HDTV VCR
R G B V R G B H / C V
On
98 279
10 R G B H / C V H
9,'(2,1387
9,'(2 69,'(2
RS 232 IN REMOTE
PROJECTOR MODE :
GREEN - OPERATION
RED - STANDBY COMMUNICATION PORT
(800-PERIPHERALS) R S232 O U T
IR-ACKNOWLEDGED
IR-RECEIVED
DIAG NOSTICS
CODE IR-RECEIVER
SDI IN SDI OUT
Ay‚h‡vtГ‚ Г‚Гsy‚h‡vtÃvƒˆ‡
Floating
Non-Floating
T’pÆryrp‡v‚
Trƒh h‡rƒp T’pГ‚Г`
- - - -
-
-
I‚ € hyÃT’p U vyr‰ryÃT’p
-
-
Vert. 3 level
sync
Blue
Green
Red
Hor. or composite
3 level sync

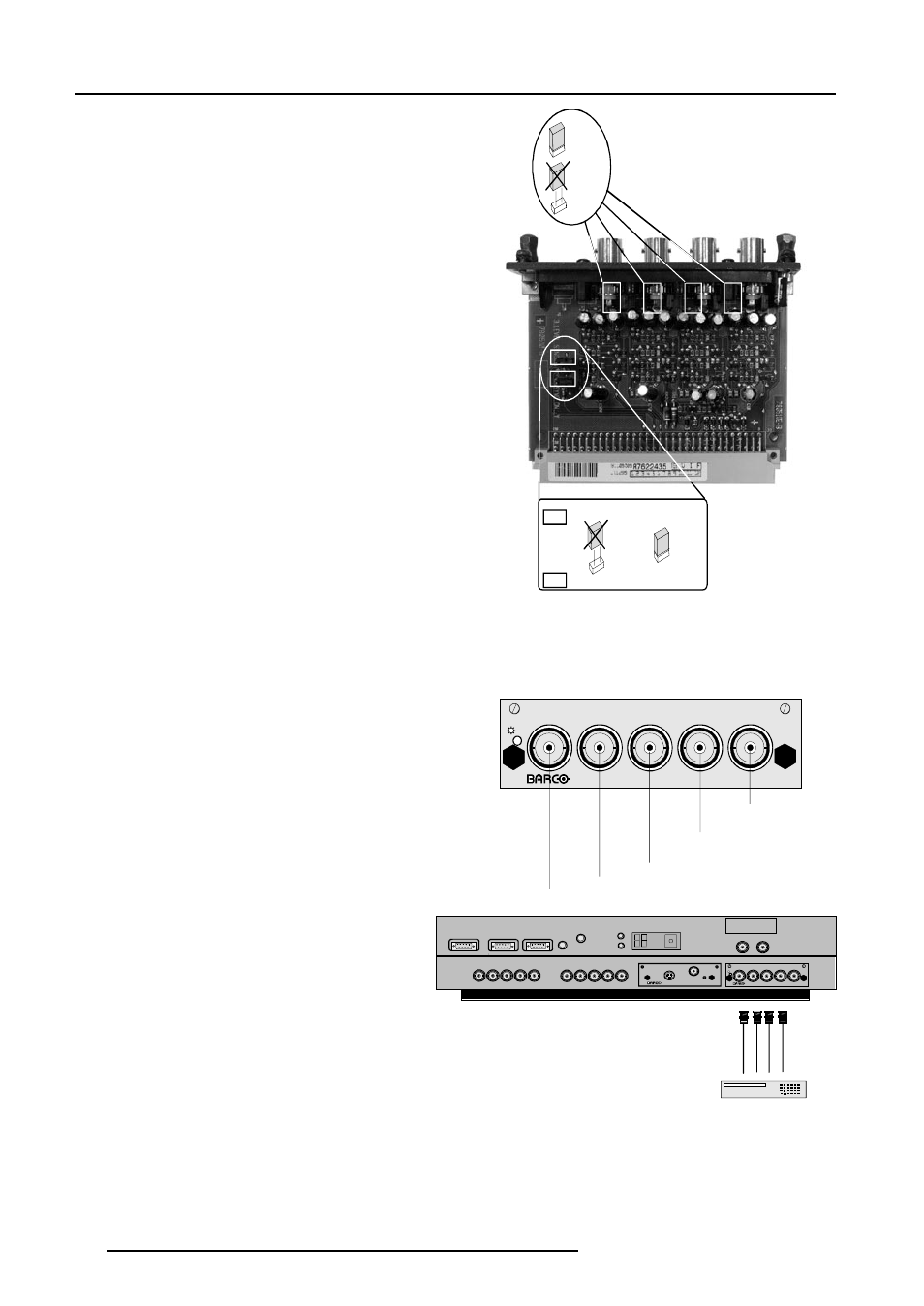

Straps on module level :
Floating or non-floating input.
R-Y : J3 : strap "yes" : non floating strap "no" : floating
Y : J4 : strap "yes" : non floating strap "no" : floating
B-Y : J5 : strap "yes" : non floating strap "no" : floating
S : J6 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection.
J8 :
strap "no" : separate sync
strap "yes" : sync on Y.
J9 :
strap "yes" : Tri-level sync
strap "no" : normal sync.
Factory preset :
separate sync and
normal sync.
Key in the corresponding slot number on the RCU or the local
keypad.
Indication on the Input Slot Menu :
RGB3L-SS = RGB with separate Tri level sync.
RGB3L-SOG = RGB with Tri level sync on green.
RGB3S / RG3sB Input Module.
Connect your RGB signals with Tri-level sync, e.g. a professional
VCR to the RGB 3 level sync input module.
RGB3S/RG3sB analog : 5 x BNC
Red : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if Tri-level sync on green
Vert. Tri-level sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. Tri-level sync / Composite Tri-level sync:
1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even in the "not
selected" mode.
Input Selection :
