9-3

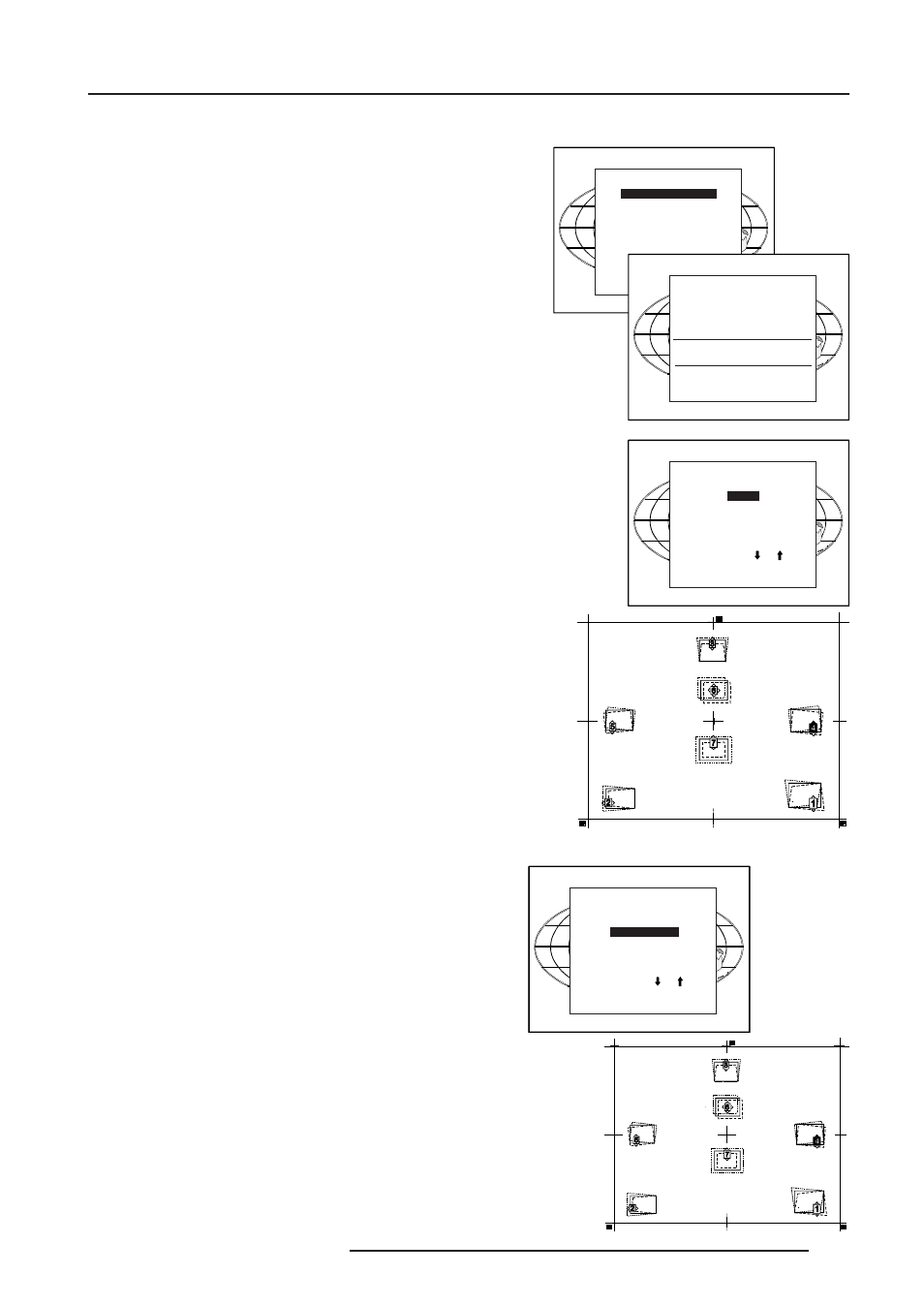

Installation Mode
5975938 BARCOREALITY 9200TCR+ 020798
CONVERGENCE
GREEN TO MIDPOSITION
GREEN
BLUE ON GREEN
RED ON GREEN
HATCH
ABOUT MOCA
GREEN TO MIDPOSITION
Are you sure to set
the green motorized
convergence adjustment
to midposition ?
This adjustment cannot
be undone afterwards !
to continue
to cancel
Green to Midposition
Only in case all panels have been removed and replaced by others or
when the convergence is totally misaligned.
For normal convergence adjustment, this step can be skipped.
To set Green in Midposition, highlight 'Green to midposition' by
pushing the control disc up or down and press ENTER to select.
A warning will be displayed :
"Are you sure to set the green motorized convergence adjustment to
midposition ? This adjustment cannot be undone afterwards !".
If you are sure, press ENTER to continue, otherwise press EDIT to
cancel.
Remark : While 'Green to midposition' is in progress, a clicking sound
may be heard, caused by the end of adjustment motor protection.
Green Focusing
1 Highlight 'Green' by pushing the Control disc up or down and press
ENTER
2 Adjust the projection lens until optimal focus on position 3 is
obtained.
hint : use the focusing marker lines next to the digit.
3 Adjust position 1 for optimal focus.
4 Adjust position 2 for optimal focus.
5 Adjust position 3 for optimal focus.
6 Repeat step 3, 4 and 5 one time as these three alignments
influence each other slightly.
Select with or
then
to return.
CONVERGENCE
GREEN TO MIDPOSITION
GREEN
BLUE ON GREEN
RED ON GREEN
HATCH
ABOUT MOCA
Blue on Green convergence
1 Highlight 'Blue on Green' by pushing the Control disc up or down
and press ENTER to display the Blue on green test pattern.
The drawings and digits will be displayed in blue.
2 Adjust position 1, 2 and 3 to obtain an optimal focus for these lines.
3 Due to interaction, it will be necessary to repeat step 2.
4 Adjust position 4 and 5 for optimal convergence of the lines in 4 and
5.
5 Adjust position 6 for optimal convergence of the vertical lines in 6.
6 Check if all lines are correctly converged.
Select with or
then
to return.
CONVERGENCE
GREEN TO MIDPOSITION
GREEN
BLUE ON GREEN
RED ON GREEN
HATCH
ABOUT MOCA
