Connections
5975938 BARCOREALITY 9200TCR+ 020798
Screen
Communication cable
Projector
IR Remote Receiver 800
Projection room Control room
56
FRQQHFWLRQ
R G B V R G B H / C V
On 98 27 9 1 0 R G B H / C V H
9,'(2,1387
9,'(2 69,'(2
RS 232 IN REMOTE
PROJECTOR MODE :
GREEN - OPERATION
RED - STANDBY COMMUNICATION PORT
(800-PERIPHERALS) RS232 OUT
IR-ACKNOWLEDGED
IR-RECEIVED
DIAGNOSTICS
CODE IR-RECEIVER
SDI IN SDI OUT
Connecting a RCVDS 05 to the projector.
- Up to 20 inputs with the RCVDS 05 and 90 inputs when RCVDS's
are linked via the expansion module.
- Serial communication with the projector.
- Remote control buttons on the RCVDS to control the projector
(source selection and analog settings).
- The selected source number will be displayed on a 2 digit display
and the selected input module will be indicated with a LED on the
rear.
For more information about the use of : the RCVDS 05, consult the
owner's manual, order number : R5975765.
Connecting a VS05 to the projector
The VS05 can switch up to 5 Composite Video sources, 3 Super
Video sources and 1 RGB analog or component video source to the
projector. In addition, the audio signal proper to the source, can be
switched to an audio amplifier.
Order number : R9827890
For more information about the use of the VS05, consult the VS05
owner's manual, BARCO order number : R5975245.
Connecting an IR Remote Receiver 800 to the
projector.
This infrared receiver unit makes it possible to control the projector
from another room.
There is a communication line cable between the IR receiver and the
projector or the RCVDS. The control information from the RCU can
now be sent to the IR Remote Receiver 800.
The IR Remote Receiver 800 displays the selected source on a 7-
segment display.
Order number : R9827515.

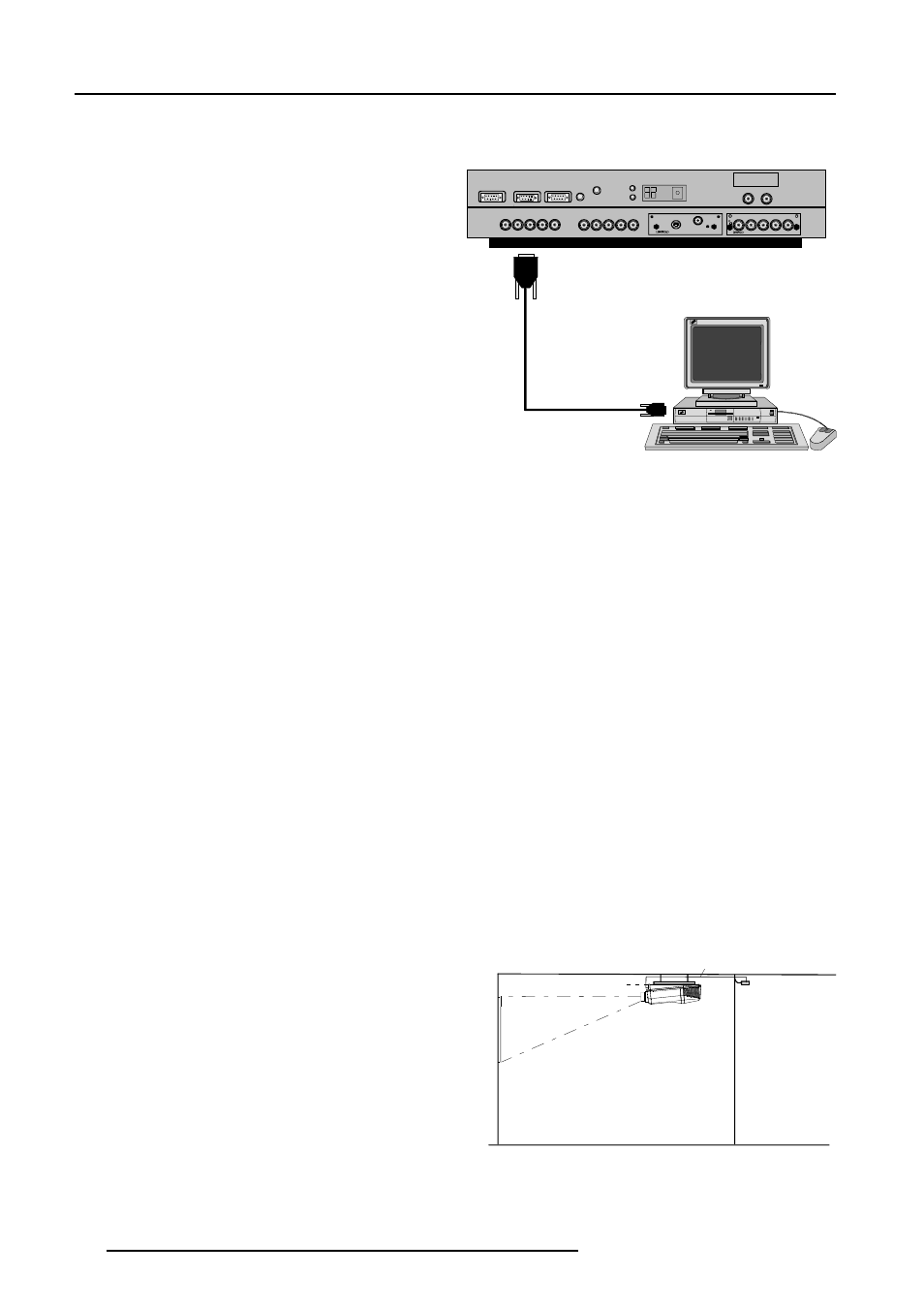

Connecting a Computer, e.g. IBM PC (or
compatible), Apple Macintosh to the RS 232 input
of the projector.
The projector has a RS232 port that allows it to communicate with a
computer.
Applications : remote control and data communications.
a) remote control :
- easy adjustment of projector via IBM PC (or compat-
ible) or MAC connection.
- allow storage of multiple projector configurations and
set ups.
- wide range of control possibilities.
- address range from 0 to 255.
b) data communications :
- sending data to the projector or copying the data from
the projector to a hard memory device.
Set up of the Baud Rate for Communication with
a Computer.
See 'Change Baudrate PC' in chapter 'Service mode'.
