5-4

Connections

5975938 BARCOREALITY 9200TCR+ 020798

R

G

B

V

R

G

B

H / C

V

H

RS 232 IN

REMOTE

PROJECTOR MODE :

GREEN - OPERATION

RED - STANDBY

COMMUNICATION PORT

(800-PERIPHERALS)

RS232 OUT

IR-ACKNOWLEDGED

IR-RECEIVED

DIAGNOSTICS

CODE

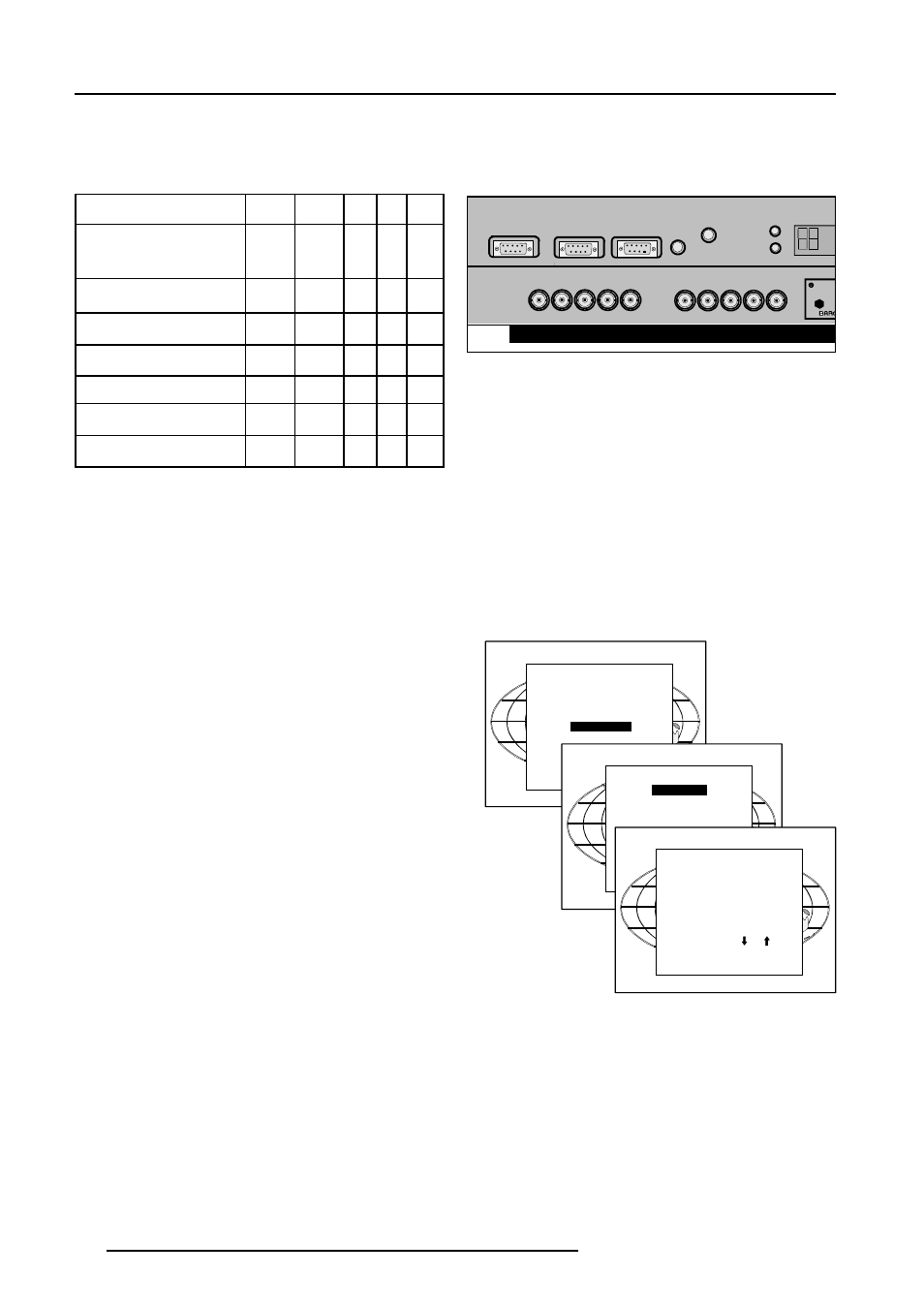

Fixed 5-Input Slot (slot 2)

Slot 2 has 5 BNC input terminals.

The following signals can be connected to these BNC connectors :

Connector name

R

G

B

H

V

Input signal

RGBHV

R

G

B

H

V

RGBS

R

G

B

S

-

RGsB

R

Gs

B

-

-

Composite Video

-

Video -

-

-

Super Video

-

Y

-

-

C

Component Video - SS

R-Y

Y

B-Y S

-

Component Video - SOY

R-Y

Y s

B-Y -

-

Slot 2 selection :

Key in 2 on the RCU or the local keypad.

Selection of the signal format on the 'Input slot' menu.

To change the signal format, press ADJUST or ENTER key to

start up the Adjustment mode.

Push the control disc up or down to select Installation and press

ENTER.

Use the control disc to select 'Input Slots' by pushing up or down

and press ENTER. The internal system will scan the inputs and

displays the result in the 'Input Slots' menu.

Push the control disc up or down to select the second slot. To

change the input signal priority, press ENTER key to toggle.

Possible indication :

RGB-SS [CS or HS&VS] = RGB analog signals, separate sync

is composite sync or horizontal and vertical sync.

RGB-SS [3LSS or CV] = RGB analog signals, separate sync

is composite tri-level sync or composite video.

RGB-SOG [SOG or 3LSOG] = RGB analog signals, sync on

green is composite sync or composite tri-level sync.

COMPONENT VIDEO - SS [SS or 3LSS] = separate sync is

composite sync or composite tri-level sync.

COMPONENT VIDEO - SOY [SOY or 3LSOY] = component

video with composite sync on Y or composite tri-level sync

on Y.

VIDEO

S-VIDEO

Select with or

then

to return.

Select with or

then

to return.

ADJUSTMENT MODE

Select a path from below :

RANDOM ACCESS

INSTALLATION

SERVICE

INSTALLATION

INPUT SLOTS

800 PERIPHERAL

CONVERGENCE

CONFIGURATION

INPUT SLOTS

Slot Module type [Config]

1. RGB-SS [CV]

2. RGB-SOG

3. Video [Video]

4. Component Video

Select with or

to toggle

to return.

When using an RCVDS 05 with a 5 cable output module, connect

these 5 cables to this fixed 5-input slot (slot2) of the projector.

All sources of the RCVDS can now be accepted by the projector.
