Connections
5975938 BARCOREALITY 9200TCR+ 020798
Select with or
then
to return.
Select with or
then
to return.
HDTV VCR
R G B V R G B H / C V
On
98 279
10 R G B H / C V H
9,'(2,1387
9,'(2 69,'(2
RS 232 IN REMOTE
PROJECTOR MODE :
GREEN - OPERATION
RED - STANDBY COMMUNICATION PORT
(800-PERIPHERALS) R S232 OUT
IR-ACKNOWLEDGED
IR-RECEIVED
DIAGNOSTICS
CODE IR-RECEIVER
SDI IN SDI OUT
R-Y Y B-Y S
On
98 2
793
0
8PHQPI@IUÃWD9@PÃDIQVU
Sync
Push the control disc up or down to select Installation and press
ENTER.
Use the control disc to select Input Slots by pushing up or down and
press ENTER. The internal system will scan the inputs and displays
the result in the Input Slots menu.
Push the control disc up or down to select the corresponding RGB
input slot. To change the sync priority for Sync separate, press
ENTER key to toggle between CV and CS or HS&VS.
Possible indication :
RGB-SS [CV] = separate sync is composite video signal
on H/C input.
RGB-SS [CS or HS&VS] = separate sync is composite
sync or horizontal and vertical sync.
RGB-SOG = sync on green.
Component Input Module.

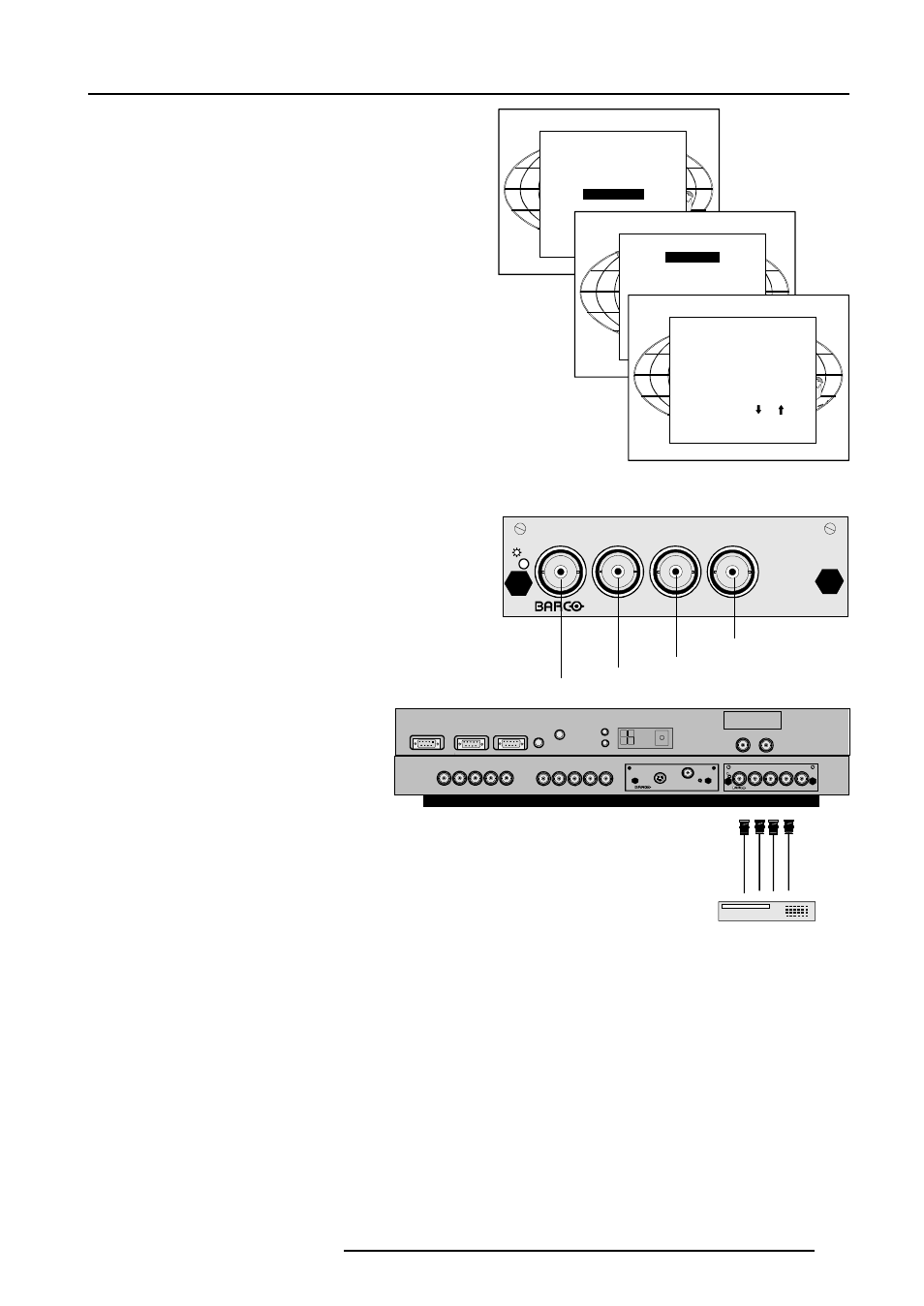

Connect your component signals (Y-luma, R-Y and B-Y), e.g. a
professional VCR to the Component input module.
Component video : 4 x BNC
R-Y : 0.7 Vpp ± 3 dB
B-Y : 0.7 Vpp ± 3 dB
Y : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if Tri-level sync on green
Composite sync : 1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even if the module
is "not selected".
Component Input Selection :
Key in the corresponding slot number on the RCU or the local keypad.
Indication on the input slot menu :
Component Video-SS = Component video with separate sync
Component Video-SOY = Component video with sync on Y
Component Video-3LSS = Component video with 3 level separate sync
Component Video-3LSOY = Component video with 3 level sync on Y
INPUT SLOTS
INSTALLATION
INPUT SLOTS
800 PERIPHERAL
CONVERGENCE
CONFIGURATION
ADJUSTMENT MODE
Select a path from below :
GUIDED
RANDOM ACCESS
INSTALLATION
SERVICE
Blue - luma
Luma
Red - luma
Select with or
to toggle
to return.
Slot Module type [Config]
1. RGB-SS [CV]
2. RGB-SOG
3. Video [Video]
4. Component Video
