5-6
Connections
5975938 BARCOREALITY 9200TCR+ 020798
R G B H / C V
On
SB7Ã6I6GPBÃDIQVU
98 2791
0
Ay‚h‡vtГ‚ Г‚Гsy‚h‡vtÃvƒˆ‡
Floating
Non-Floating
E'ÃT’pÆryrp‡v‚
Trƒh h‡rƒp T’pÃt rr
- - - - -
21
2))
7 C
B S
W
DIQ DIQ
DIQVU
6I6GPBÃDIU@SA68@à !ÃHC“
R G B V R G B H / C V
On
9 8 27 91 0 R G B H / C V H
9,'(2,1387
9,'(2 69,'(2
RS 232 IN REMOTE
PROJECTOR MODE :
GREEN - OPERATION
RED - STANDBY COMMUNICATION PORT
(800-PERIPHERALS) RS232 OUT IR-ACKNOWLEDGED
IR-RECEIVED
DIAGNOSTICS
CODE IR-RECEIVER
SDI IN SDI OUT
Vert. sync
Hor. sync or Composite
sync
Blue
Green
Red

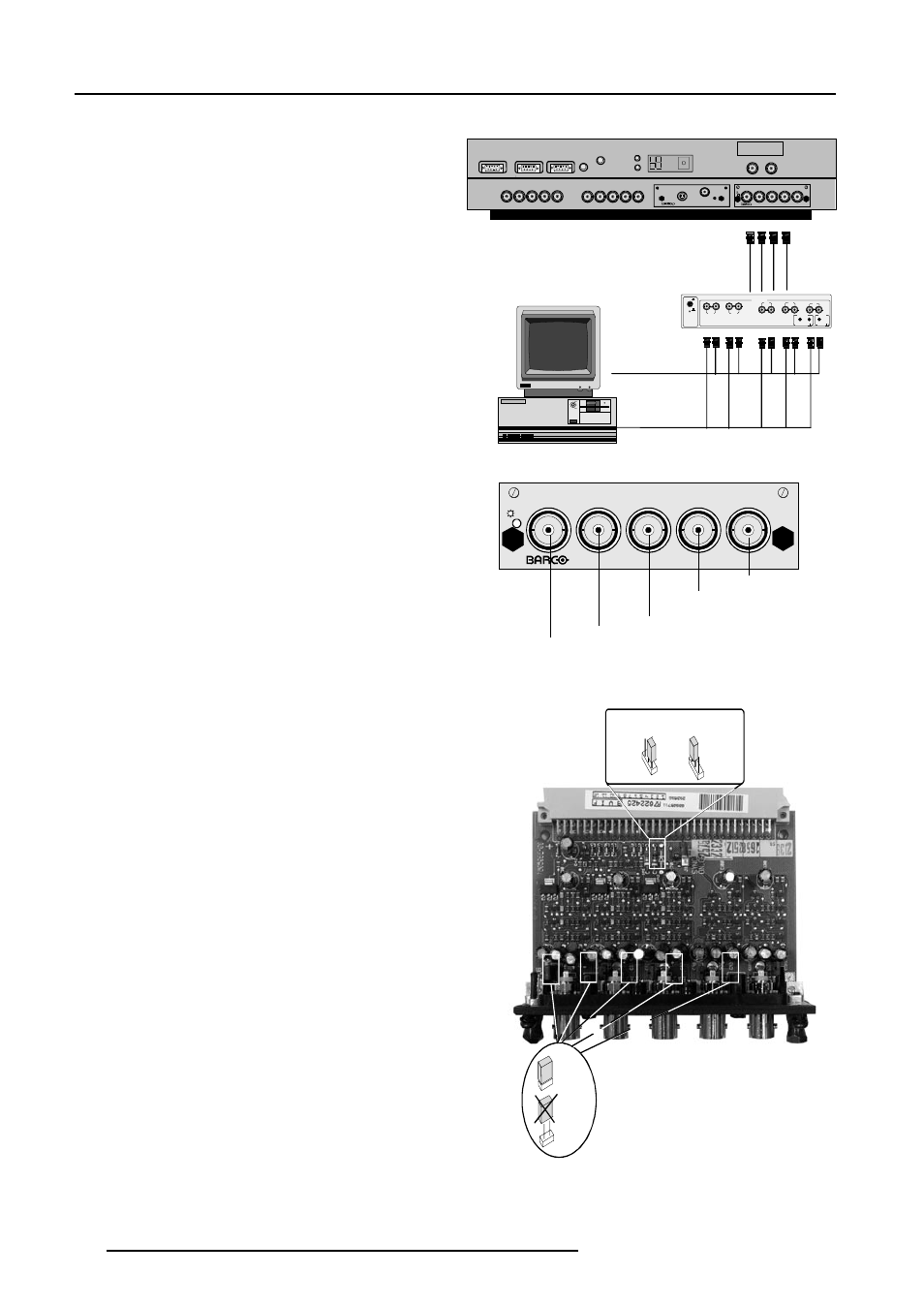

RGB Analog Input Module.
RGB analog input terminals with separate Horizontal and Vertical
sync inputs(RGB-HV), with Composite sync input(RGB-S) or with
Sync signals on green(RGsB).
Always use an interface when a computer and local monitor have
to be connected to the projector. See 'slot 1' for interfaces to be
applied.
RGBS/RGsB analog : 5 x BNC
Red : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if sync on green
Vert. sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. sync / Composite sync :
1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even in the "not
selected" mode.
RGB input selection :
Key in the corresponding slot number on the RCU or the local keypad.
Straps on module level :
Floating or non-floating input.
Red : J3 : strap "yes" : non floating strap "no" : floating
Green : J4 : strap "yes" : non floating strap "no" : floating
Blue : J5 : strap "yes" : non floating strap "no" : floating
H/C : J6 : strap "yes" : non floating strap "no" : floating
V : J7 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection : strap on module level.
J8 : see drawing
Factory preset : separate sync.
Sync selection on the Input Slots menu.
The horizontal sync input can be set as separate sync input or as
separate sync + video input. To change this setting, press ADJUST
or ENTER key to start up the Adjustment mode..
