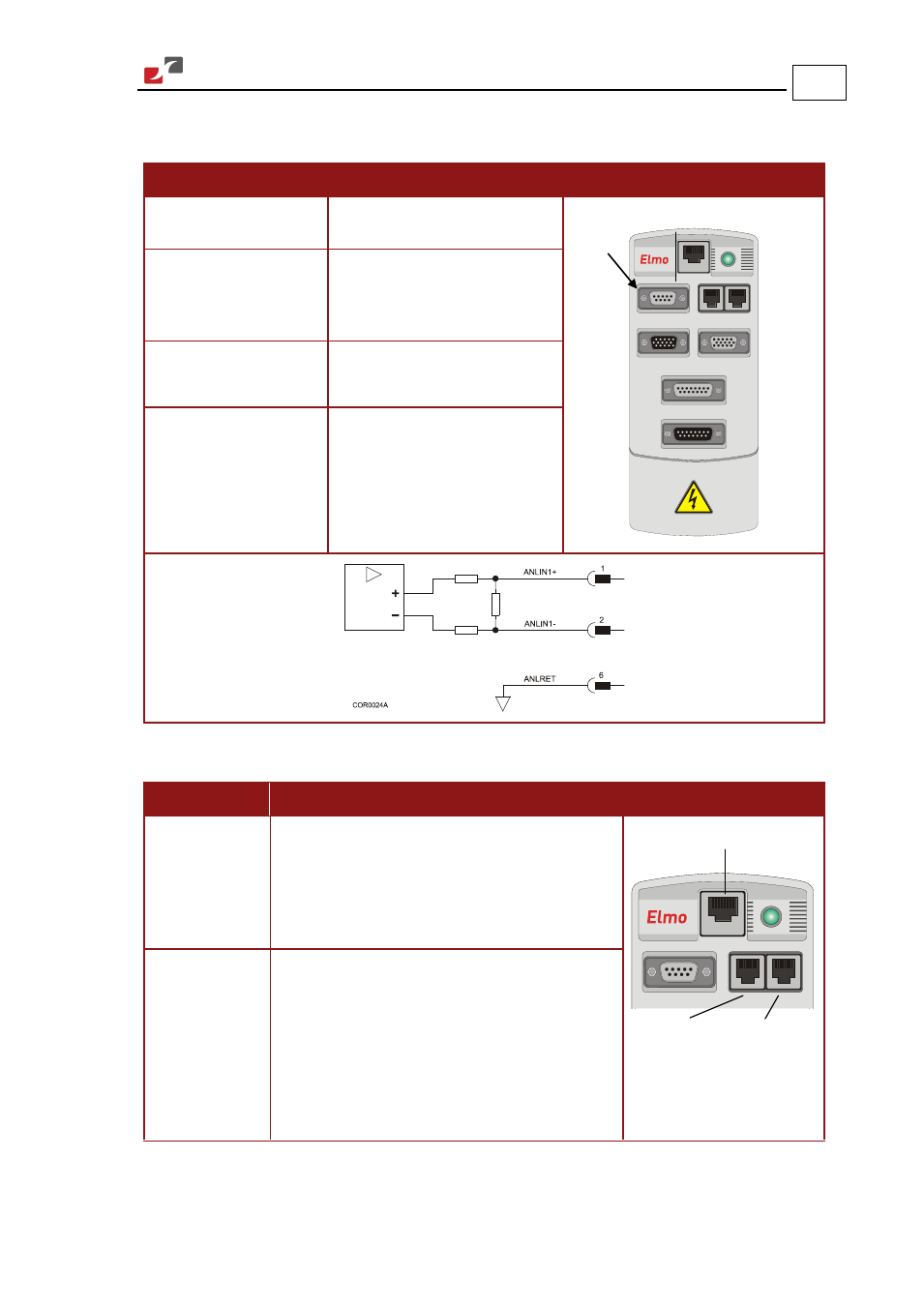

1.23.3. Analog Input
Feature Details Connector Location
Maximum operating
differential voltage
± 10 V
FEEDBACK B
FEEDBACK A
ANALOG INPUTS
COMMITTED I/O
COMM.2
GENERAL I/O
COMM.1
COR0001A
Maximum absolute
differential input voltage
± 16 V
Differential input
resistance
3 kΩ
Analog input command
resolution
14-bit
1.24. Communications
Specification Details Connector Location
RS-232 Signals:
RxD , TxD , Gnd
Full duplex, serial communication for setup and
control.
Baud Rate of 9,600 to 57,600 bit/sec.
ANALOG INPUTS CAN
RS-232
CAN
CAN CAN bus Signals:
CAN_H, CAN_L, CAN_GND
Maximum Baud Rate of 1 Mbit/sec.
Version:
DS 301 V4.01
Device Profile (drive and motion control):
DS 402
CAN
port
CAN
port
RS-232 port
Analog
Input
