Cornet Installation Guide Installation
MAN-CORIG (Ver. 1.502)
www.elmomc.com
18

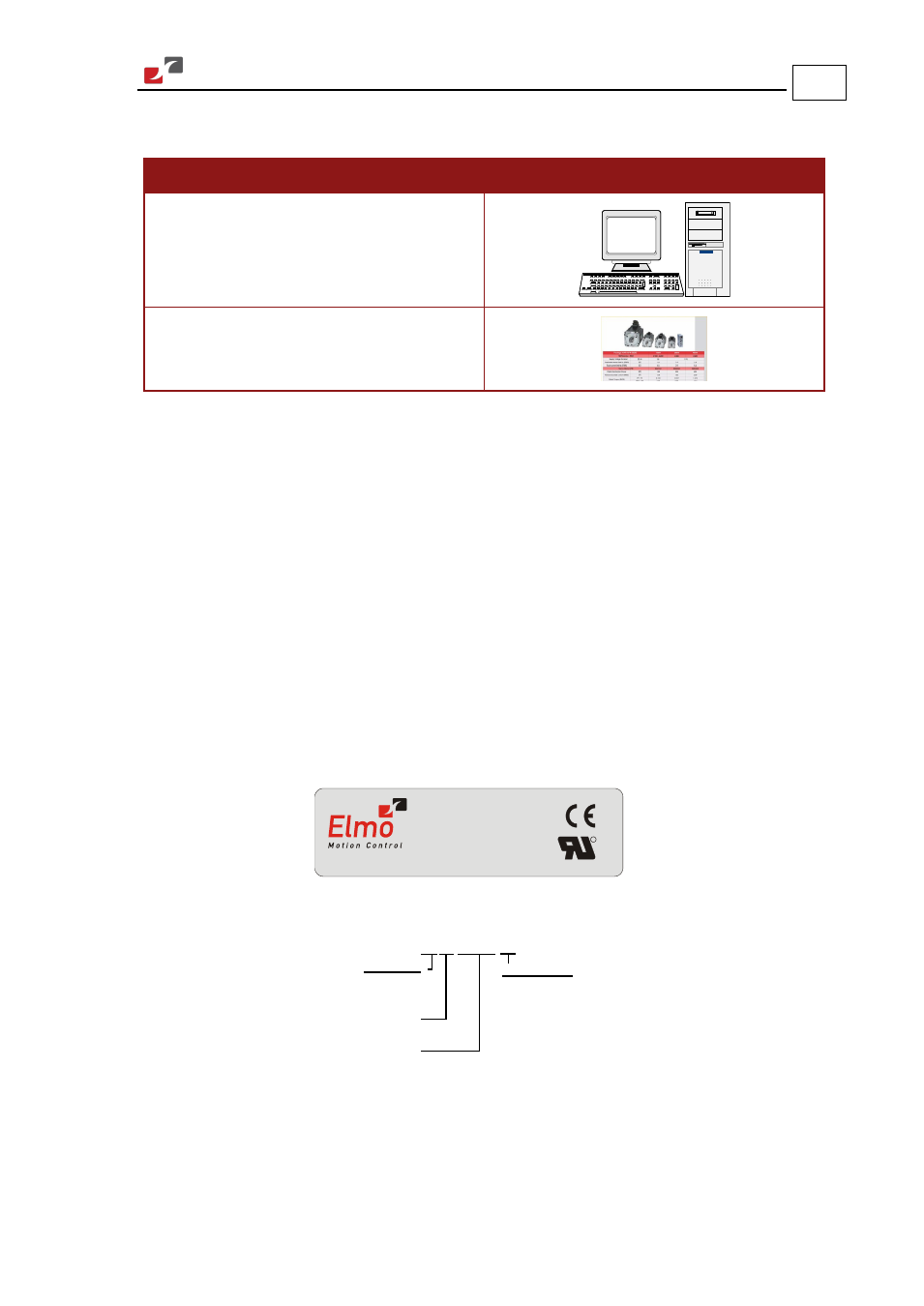

1.10.2.6. Other Items Needed
Component Diagram
PC for drive setup and tuning
Motor data sheet or manual
1.11. Unpacking the Drive Components
Before you begin working with the Cornet system, verify that you have all of its components, as
follows:
aaa.
The Cornet servo drive
bbb. The Composer software and software manual
The Cornet is shipped in a cardboard box with Styrofoam protection.
To unpack the Cornet:
Carefully remove the servo drive from the box and the Styrofoam.
Check the drive to ensure that there is no visible damage to the instrument. If any damage has
occurred, report it immediately to the carrier that delivered your drive.
To ensure that the Cornet you have unpacked is the appropriate type for your requirements,
locate the part number sticker on the side of the Cornet. It looks like this:
COR0002A
www.elmomc.com
R
C US
P/N: COR-7/230
S/N: COR2055003
The P/N number at the top gives the type designation as follows:
Nominal AC
Operating Voltage
Continuous Current
(Amps)
Version :
Blank = Standard
A = Advanced
Feedback:
Blank = Incremental
Encoder
and/or Halls
R = Resolver
COR- A X/YYY R
T = Tachometer &
Potentiometer
I = Interpolated
Analog
Encoder
Q =
Encoder
Absolute
Verify that the Cornet type is the one that you ordered, and ensure that the voltage meets your
specific requirements.
