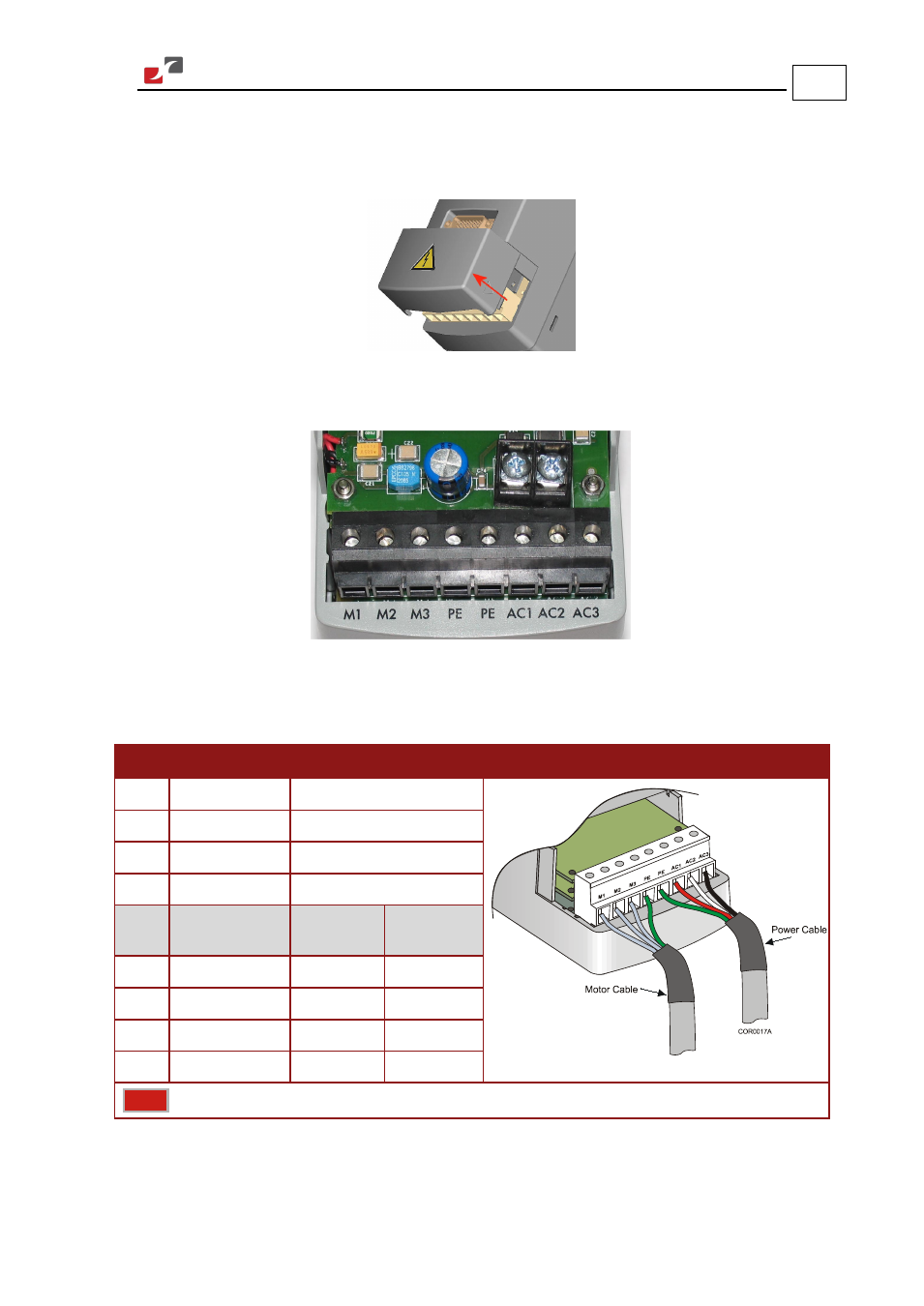

1.13.2. Connecting the Power Cables
Access the power terminal connections on the Cornet servo drive by removing the front safety
cover located at the bottom of the front panel of the unit, as shown below:
Figure 8: Removable Bottom Panel
After removing the safety cover, the power terminal connections are visible, as follows:
Figure 9: Cornet Power Connectors
The main power connector, which is located at the bottom of the Cornet, includes the
following pins:
Pin Function Cable Pin Positions
AC3 Phase 3 Power
AC2 Phase 2 Power
AC1 Phase 1 Power
PE Protective earth Power
AC Motor
Cable
DC Motor
Cable
PE Protective earth Motor Motor
M3 Motor phase Motor Motor
M2 Motor phase Motor Motor
M1 Motor phase Motor N/C
Note: When connecting several motors, all must be wired in an identical manner.
Table 2: Connector for Main Power and Motor Cables
